MESTEK Combustible Gas Detector CGD-02 Gas Analyzer Handheld Carbon Monoxide Meter Portable CO Gas Leak Detector. \n \nThis gas detector is generally suitable for petroleum, chemical, metallurgy, gas transmission, municipal engineering, home, and other fields to detect flammable gas leakage. It features sensitivity that can be adjusted, a response time of fewer than 10 seconds, sound and light alarm. It comes with an LED display that clearly shows the amount of gas leakage. \n \nThis detector is used to detect the leakage of combustible gas like methane, ethane, propane, and other hydrocarbon gases which are the main components of natural gas and liquefied gas. It can continuously monitor the concentration of combustible gas surrounding the environment. The audible and visual alarm will start once the gas concentration reaches the alarm level. \n \nThis detector can be widely used in detecting urban gas in homes, RV gas systems, gas stations, gas transmission and distribution, gas pipeline safety inspection, and maintenance. \n

Features of Combustible Gas Detector CGD-02

\n

\n
• Light and novel appearance, easy to carry, easy to operate.
\n
• High sensitivity, can respond rapidly when combustible gases are detected.
\n
• Sound and light alarm.
\n
• Combustible Gas Leak Detector
\n
• Portable High Sensitivity Detector, with Sound, Light, and Vibration Alarm
\n
• The screen can only display the gas concentration, not the gas type
\n
• Gas unit display: only LEL
\n

\n

Detection Gas Types:

\n

\n
1. Methane, Natural Gas
\n
2. Carbon Monoxide
\n
3. Gasoline, Alcohol
\n
4. Propane
\n
5. Benzene
\n
6. Trichloroethane
\n
7. Ethane
\n
8. N-butane
\n
9. Halogenated hydrocarbon (Referance)
\n

\n

Technical Parameters of Combustible Gas Detector CGD02

\n

\n
• Sensor: Catalytic Combustion Type
\n
• Detection Gas: EX
\n
• Temperature Measurement: Ambient Temperature
\n
• Display Unit: Combustible Gas: %LEL Temperature °C/°F
\n
• Range: 0~100% LEL, Temperature -15~50°C
\n
• Resolution: Combustible Gas: 1% LEL, Temperature 0.1°C/0.1°F
\n
• Accuracy: Combustible Gas: ±5 F.S, Temperature ±1.5°
\n
• Response Time: T90<60s
\n
• Alarm: Sound and Light Vibration Alarm
\n
• Alarm Point: Low alarm point 10% LEL, high alarm point 20%LEL
\n
• Battery Type: AA3 Batteries to Supply
\n
• Operating Temperature: -10 ~ +50°C
\n
• Operation Humidity: 15% - 95%RH (Non condensation)
\n

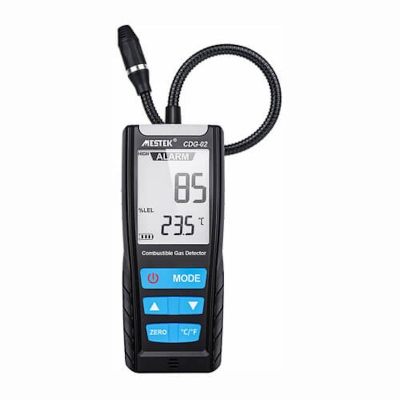

\n[caption id="attachment_36498" align="alignnone" width="868"] Picture: Diagram of Combustible Gas Detector CGD 02 Mestek[/caption] \n \n

\n
• Gas Analyzer Combustible Gas Detector
\n
• Portable High Sensitive Detector
\n
• Model: CGD02
\n
• Brand: MESTEK
\n
• Made in China
