CD4016 IC


Tk 22
    \n

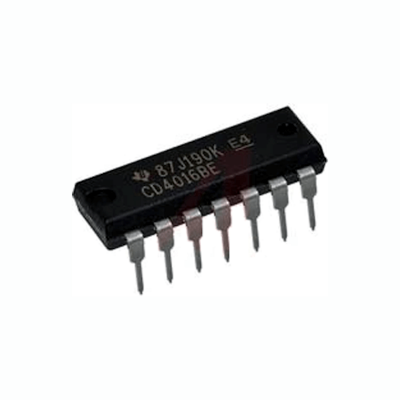

  • CD4016 IC
  • \n
  • VDD Supply Voltage:-0.5V to +18V
  • \n
  • Input Voltage :-0.5V to VDD +0.5V
  • \n
  • Storage Temperature Range: 65ºC to a 150ºC
  • \n
  • Made in China
  • \n

*


The CD4016BM/CD4016BC is a quad bilateral switch intended for the transmission or multiplexing of analog or digital signals. It is pin-for-pin compatible with CD4016 IC. \n
    \n
  • Wide supply voltage range: 3V to 15V
  • \n
  • Wide range of digital and analog switching: ±7.5 VPEAK
  • \n
  • “ON” resistance for 15V operation: 400W (typ.)
  • \n
  • Matched “ON” resistance over 15V signal input: DRON = 10W (typ.)
  • \n
  • High degree of linearity: 0.4% distortion (typ.) @ fIS = 1 kHz, VIS = 5 Vp-p, VDD-VSS = 10V, RL = 10 kW
  • \n
  • Extremely low “OFF” switch leakage: 0.1 nA (typ.) @ VDD - VSS = 10V TA = 25°C
  • \n
  • Extremely high control input impedance: 1012W (typ.)
  • \n
  • Low crosstalk between switches: -50 dB (typ.) @ fIS = 0.9 MHz, RL = 1 kW
  • \n
  • Frequency response, switch “ON”: 40 MHz (typ.)
  • \n
\n

Applications

\n
    \n
  • Analog signal switching/multiplexing Signal gating Squelch control Chopper Modulator/Demodulator Commutating switch
  • \n
  • Digital signal switching/multiplexing
  • \n
  • CMOS logic implementation
  • \n
  • Analog-to-digital/digital-to-analog conversion
  • \n
  • Digital control of frequency, impedance, phase, and analog-signal gain
  • \n
\n

Specifications:

\n
    \n
  • VDD Supply Voltage:-0.5V to +18V
  • \n
  • Input Voltage :-0.5V to VDD +0.5V
  • \n
  • Storage Temperature Range: 65ºC to a 150ºC
  • \n
  • Power Dissipation (PD)
  • \n
  • Dual-In-Line: 700 mW
  • \n
  • Small Outline: 500 mW
  • \n
  • Lead Temperature (Soldering, 10 seconds) 260ºC
  • \n





    \n
  • CD4016 IC
  • \n
  • VDD Supply Voltage:-0.5V to +18V
  • \n
  • Input Voltage :-0.5V to VDD +0.5V
  • \n
  • Storage Temperature Range: 65ºC to a 150ºC
  • \n
  • Made in China
  • \n
