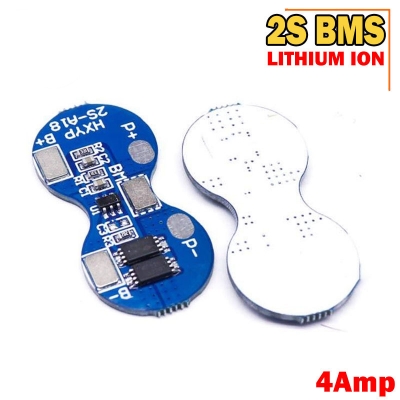

Picture of BMS Charger Protection Board for Li-ion 18650 HXYP-2S-A18 2S 4A 7.4V - Blue
Picture of BMS Charger Protection Board for Li-ion 18650 HXYP-2S-A18 2S 4A 7.4V - Blue

BMS Charger Protection Board for Li-ion 18650 HXYP-2S-A18 2S 4A 7.4V - Blue

Category: Adaptor, Cable & Hub
SKU: FAEL683630
Seller: FAMOUS ELECTRONICS BD
App Coupon to Get Extra Discount
Tk 195
0 review(s)
  • Charging voltage: DC 9V CC/CV (max: 12V)
  • Current Single current consumption (consumption) ≤ 6uA Maximum sustained discharge current: 4A
  • Overload protection Voltage Overcharge detection voltage: 4.29V Accuracy ≤ ± 0.025V Overcharge detection delay time: 1s Overcharge recovery voltage: 4.05V Accuracy ≤ ± 0.025V
  • Over-discharge protection Over-discharge detection voltage: Accuracy 3V ≤ ± 0.1V Over discharge detection delay time: 128ms Over discharge recovery voltage: 3.2V Accuracy ≤ ± 0.1V
  • Temperature Operating temperature range: -40°C~85°C Storage temperature range: -40°C~125°C
  • Overcharge protection, over-discharge protection, short circuit protection, over-current protection

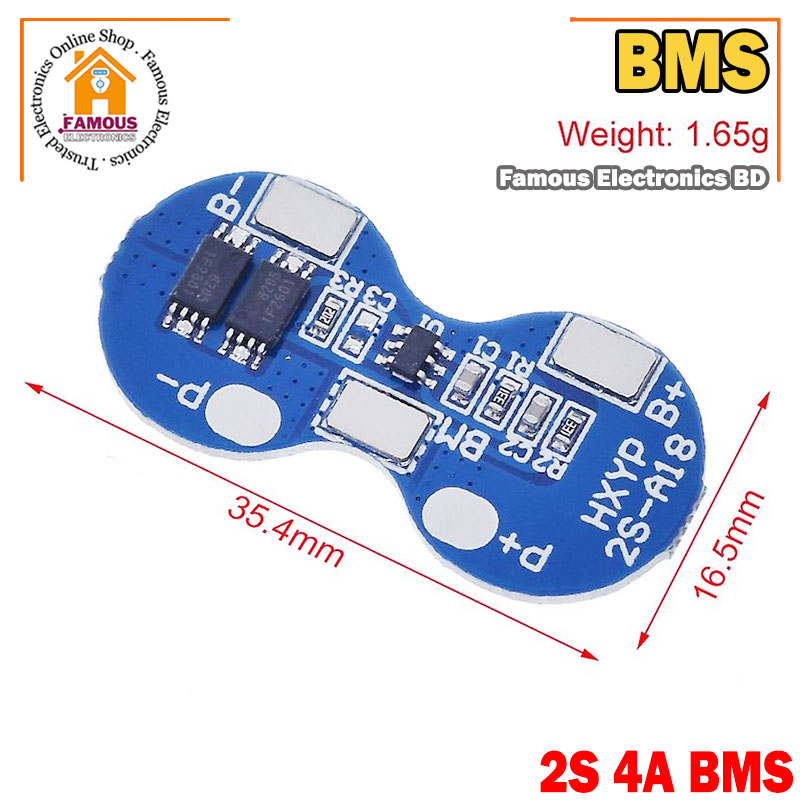

  • Product size: about 3.50×1.70cm
*

Call For Order : 09613-800800
  • Charging voltage: DC 9V CC/CV (max: 12V)
  • Current Single current consumption (consumption) ≤ 6uA Maximum sustained discharge current: 4A
  • Overload protection Voltage Overcharge detection voltage: 4.29V Accuracy ≤ ± 0.025V Overcharge detection delay time: 1s Overcharge recovery voltage: 4.05V Accuracy ≤ ± 0.025V
  • Over-discharge protection Over-discharge detection voltage: Accuracy 3V ≤ ± 0.1V Over discharge detection delay time: 128ms Over discharge recovery voltage: 3.2V Accuracy ≤ ± 0.1V
  • Temperature Operating temperature range: -40°C~85°C Storage temperature range: -40°C~125°C
  • Overcharge protection, over-discharge protection, short circuit protection, over-current protection
  • Product size: about 3.50×1.70cm





  • Charging voltage: DC 9V CC/CV (max: 12V)
  • Current Single current consumption (consumption) ≤ 6uA Maximum sustained discharge current: 4A
  • Overload protection Voltage Overcharge detection voltage: 4.29V Accuracy ≤ ± 0.025V Overcharge detection delay time: 1s Overcharge recovery voltage: 4.05V Accuracy ≤ ± 0.025V
  • Over-discharge protection Over-discharge detection voltage: Accuracy 3V ≤ ± 0.1V Over discharge detection delay time: 128ms Over discharge recovery voltage: 3.2V Accuracy ≤ ± 0.1V
  • Temperature Operating temperature range: -40°C~85°C Storage temperature range: -40°C~125°C
  • Overcharge protection, over-discharge protection, short circuit protection, over-current protection
  • Product size: about 3.50×1.70cm
