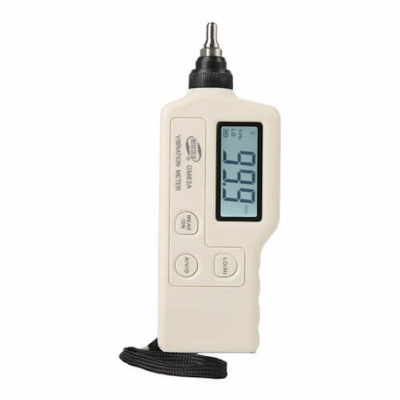

BENETECH Digital Vibration Meter GM63A adopts the piezoelectric effect of artificial polarized ceramic for design. It is suitable for monitoring all kinds of vibrating mechanical facilities, especially the vibration measurement of rotating and reciprocating machinery. The unit can measure acceleration, velocity, and displacement, which is widely used in mechanical manufacturing, electric power metallurgy, general aviation, etc. \n

Features of the Digital Vibration Meter GM63A:

\n

\n
• Simple to use, the structure is compact, and portable for carrying along with the measurement.
\n
• Visually display measurement value and state.
\n
• Acceleration, velocity, and displacement measurement.
\n
• Different vibration frequency selection.
\n
• High sensitivity probe for accurate measurement Pro-vides long and short probe heads, each one is suitable for different situation measurements.
\n
• Equipped with AC signal output interface.
\n
• Low power indication.
\n
• Auto power-off.
\n
• LCD backlight.
\n

\n

Specifications of The Digital Vibration Meter GM63A:

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Technical parameter	Technical specification
Vibration pickup	Piezoelectric ceramic accelerometer (shear-type)
Measurement range \nof acceleration	0.1~199.9m/s² peak
Measurement range \nof velocity	0.1~199.9mm/s rms
Measurement range \nof displacement	0.001~1.999mm p-p \nVelocity and displacement range are limited by \nacceleration199.9m/s²
Measurement accuracy	±5%±2digits
Measurement frequency \nrange of acceleration	10Hz～1KHz (LO) 1KHz～15KHz (HI)
Measurement frequency \nrange of velocity	10Hz～1KHz (LO)
Measurement frequency \nrange of displacement	10Hz～1KHz (LO)
Displays update cycle	1 second
LCD	3 1/2 digits display
Single output	AC output 2 V peak (display full scale) \nLoad impedance 10KΩor more earphones \ncan be connected
Power supply	9V Alkaline battery
Static current	≤20μA
Operating current	≤25mA
Battery life	20 hours of continuous use
Auto power-off	Turns off automatically in 60 seconds
LCD backlight	7 seconds
Operating temperature range	0~40℃
Operating humidity range	30~90%RH
Low battery indication	6.9V±0.2V
Dimensions	67x30x183mm
Weight	182g ( including battery)

\nClick for More Information  \n \n

\n
• Digital Vibration Testing Meter
\n
• Brand: BENETECH
\n
• Model: GM63A
\n
• Made in China
