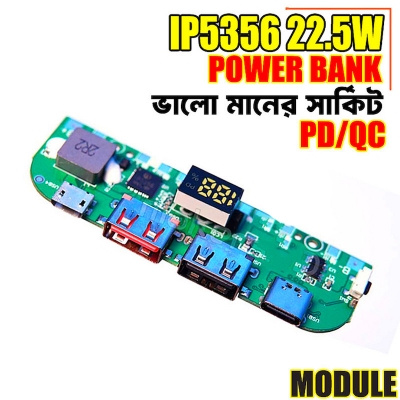

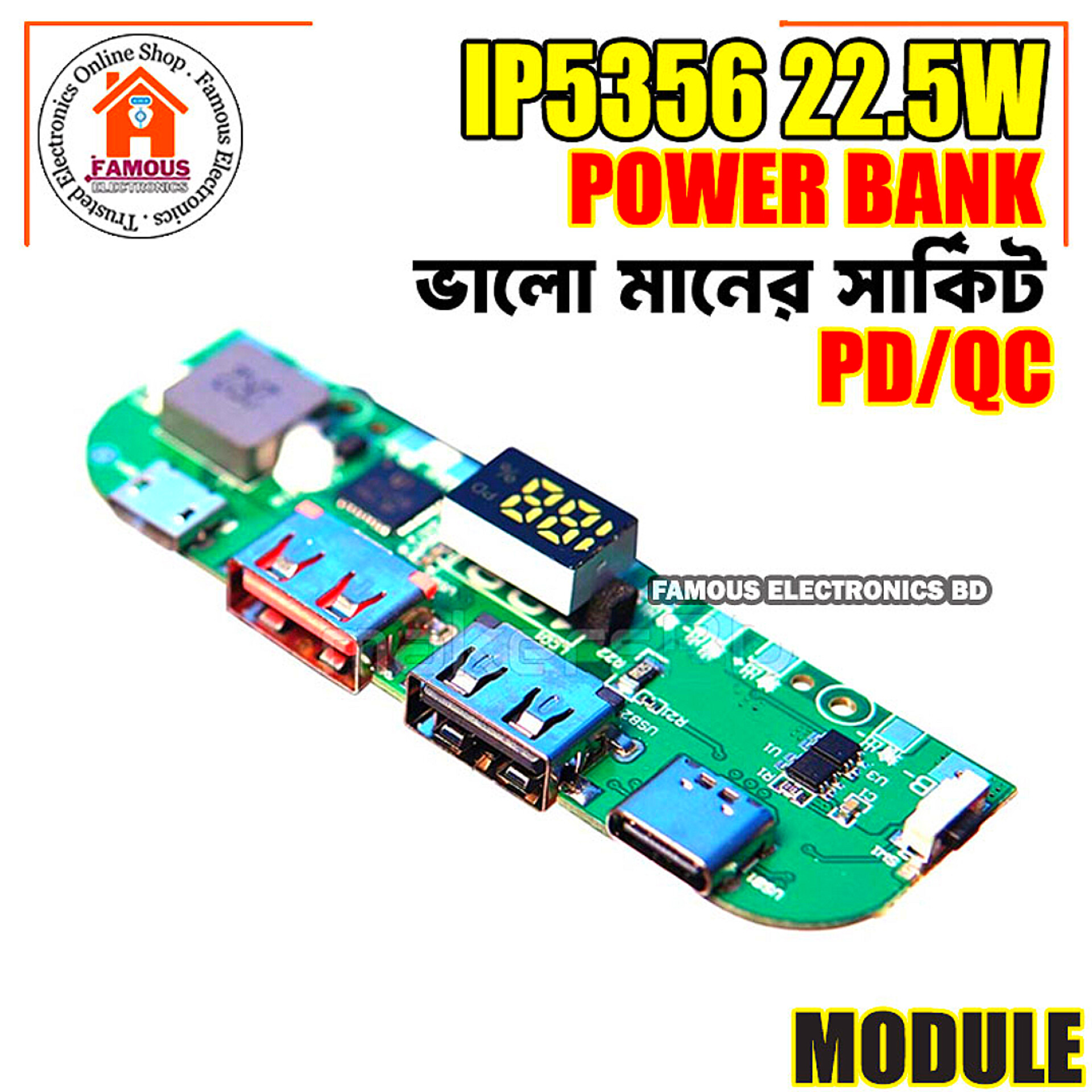

Band New IP5356 22.5W Power Bank Circuit PD QC With Display - Green

Specification

• Short circuit protection: <50uS
• Self-dissipation: Max 150uA
• Discharge constant current: 5V3A
• Recovery condition: Disconnect the load
• Suggested operating conditions: 5V3A
• Suggested operating temperature: -5~45℃
• Constant charging voltage: 4.00-4.2V
• Termination charging voltage: 4.2+0.05V
• USBA output fast charging protocol (support QC3.0/QC2.0/AFC/FCP/SCP) (output 5V/3A 9V/2A 12V/1.5A 5V/4.5A 4.5V/5A)
• Type-C support PD3.0/PD20/OC30/0C20/AFC/FCP/SCP fast charging output, support PD3.0/PD20/AFC/FCP, fast charging input (output 5V/3A9V/22A12V/1.5A5V/4.5A 4.5V/5A), (input 5V/3A 9V/2A12V/1.5A)
• Micro input support AFC/FCP fast charging input (input 5V/2A9V/2A)

Description

• Support Multiple USB ports at the same time
• 2 USB A port outputs
• 1 USB B port input
• 1 USB C port input and output

Package include:

• Fast charging module*1
