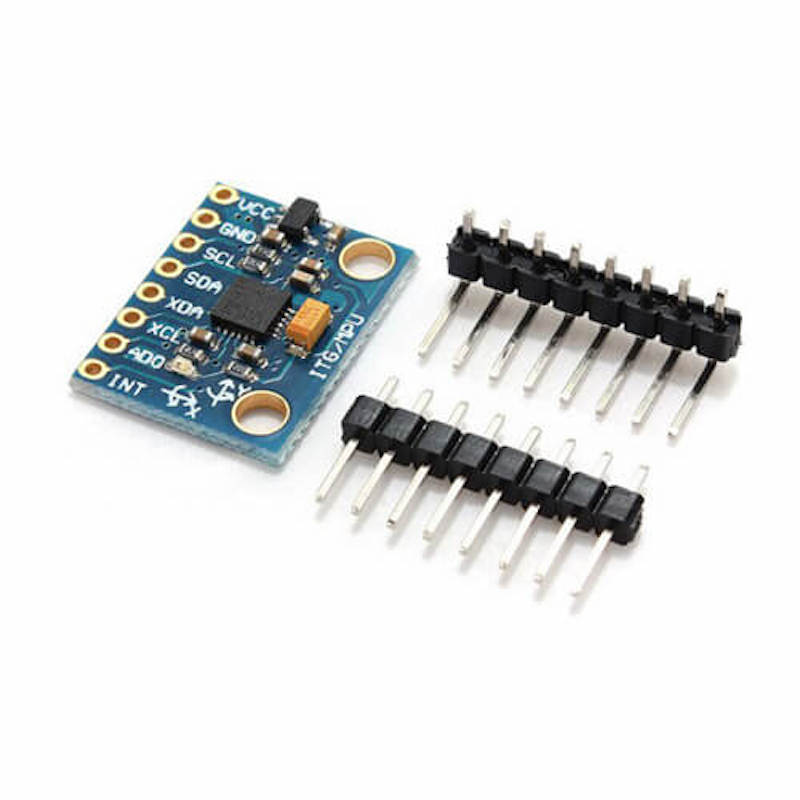

The Axis Gyro 6DOF MPU 6050 is a high-performance motion tracking sensor designed for a range of applications, from robotics to smartphones. This advanced module combines a 3-axis accelerometer and a 3-axis gyroscope, allowing for precise measurements of orientation and motion in three dimensions. \n \nWith its compact design and built-in Digital Motion Processor (DMP), the MPU 6050 offers real-time data processing, making it ideal for applications requiring fast response times. The sensor's low power consumption ensures prolonged operation, perfect for battery-powered devices. \n \nWhether you're building a drone, developing wearable technology, or integrating motion sensing into your project, the Axis Gyro 6DOF MPU 6050 provides accurate and reliable data to help you achieve your goals. Unlock new possibilities in motion tracking and elevate your projects to the next level! \n

\n
• Chip built-in 16-bit AD converter, 16-bit data output.
\n
• I2C Digital output of 6 or 9-axis MotionFusion data in rotation matrix, quaternion, Euler Angle, or raw data format.
\n
• Selectable Solder Jumpers on CLK, FSYNC, and AD0.
\n
• Digital Motion Processing™ (DMP™) engine offloads complex MotionFusion, sensor timing synchronization, and gesture detection.
\n
• Embedded algorithms for run-time bias and compass calibration. No user intervention is required.
\n
• Digital-output temperature sensor.
\n

\n

General Specification of Axis Gyro 6DOF

\n

\n
• Driver IC MPU-6050
\n
• Operating Voltage (VDC) 3 ~ 5
\n
• Communication I2C Protocol
\n
• Gyro range(°/s) ± 250, 500, 1000, 2000
\n
• Acceleration range(g) ± 2 ± 4 ± 8 ± 16
\n
• Length: 20mm
\n
• Width: 16mm
\n
• Shipment Weight 0.01 kg
\n
• Shipment Dimensions 3 × 2 × 1 cm
\n

\nPackage Includes: \n1 x 6DOF MPU 6050 3-Axis Gyro

\n
• Chip built-in 16bit AD converter, 16-bit data output
\n
• Driver Chip: MPU6050
\n
• Operating Voltage: 3-5V DC
\n
• Communication: I2C/IIC Protocol
\n
• Gyro Range: ± 250, 500, 1000, 2000 °/s
\n
• Accelerometer Range: ± 2 ± 4 ± 8 ± 16 g
\n
