• Model: H110M
• Chipset- Intel H110
• Intel Socket 1151 for 7th/6th Gen Core Processors
• 2 x DIMM, Max. 32GB, DDR4 2133
• 1 x PCIe 3.0/2.0 x16




  hipset	Intel® H110
  Supported Processors	Intel® Socket 1151 for 6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
  Max Memory	2 x DIMM, Max. 32GB, DDR4 2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP)
  Onboard Video	Integrated Graphics Processor- Intel® HD Graphics support Multi-VGA output support : DVI-D/RGB ports - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 1024 MB Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
  Onboard Audio	Realtek® ALC887 8-Channel High Definition Audio CODEC *1 - Supports : Jack-detection, Front Panel Jack-retasking

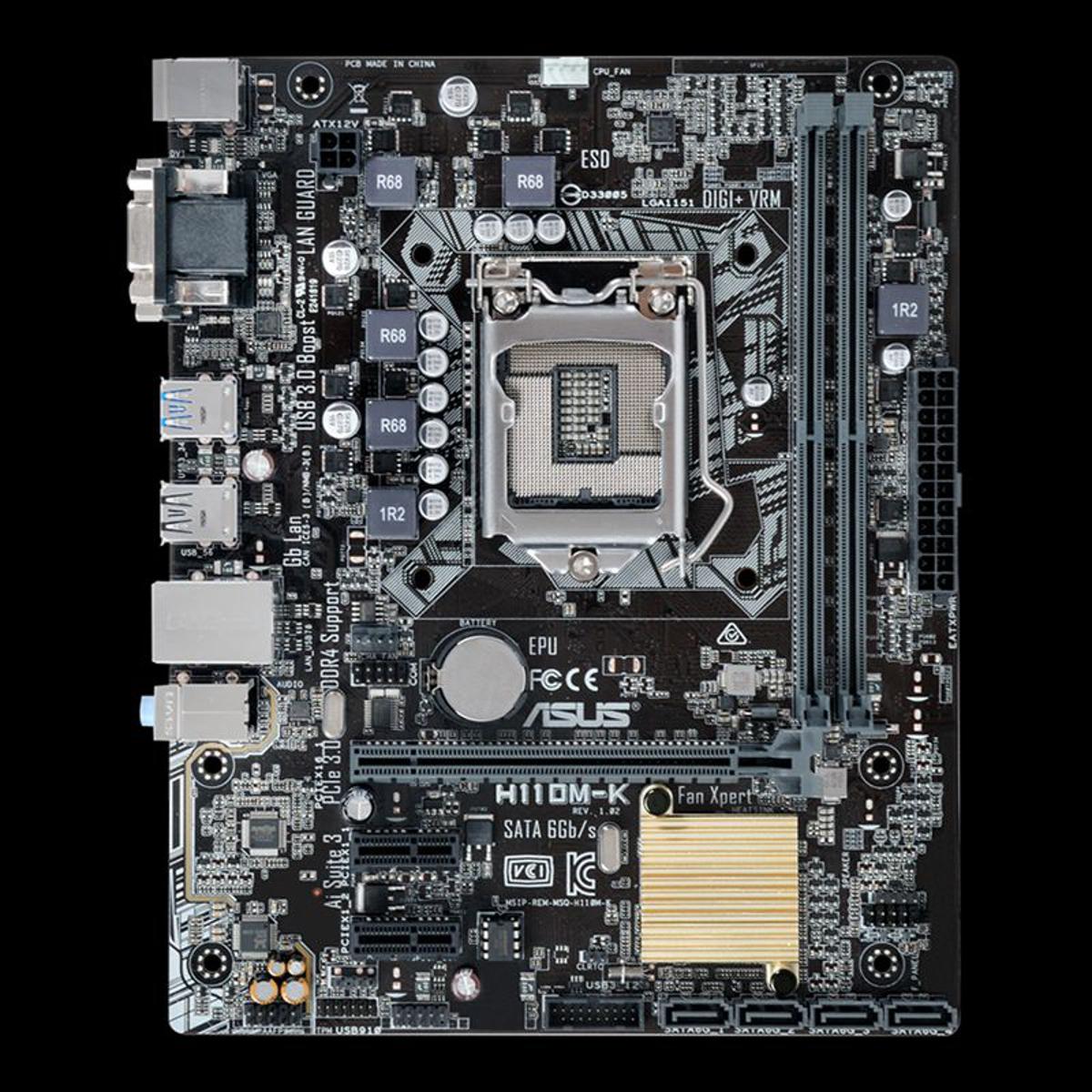

Specifications of ASUS H110M Motherboard

• Brand

  No Brand

• SKU

  309820074_BD-1386298551

• Number of memory slots

  2

• Form Factor

  Micro ATX
  Recondition Some Time Model Changes
