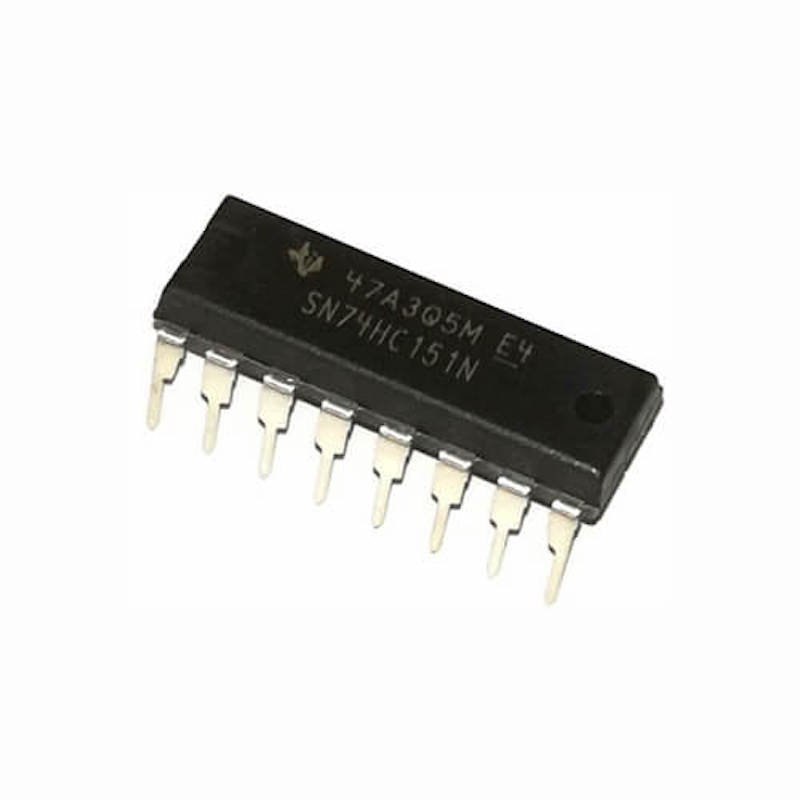

74151 Data Selectors/Mux

Name: 74151 Data Selectors/Mux
SKU: LTBD37874
Price: 35.00 BDT
Availability: InStock

Category: Industrial & Others

SKU: LTBD37874

Seller: Labtex Bangladesh

App Coupon to Get Extra Discount

Tk 35

0 review(s)

74151 Data Selectors/Mux
Recommended Operating Voltage:4.75-5.25V
Minimum High-Level Input Voltage:2V
Maximum Low-Level Input Voltage:0.8V
Made in China

Select a model: *

Chinese

Call For Order : 09613-800800

This data selectors/multiplexer contains full on-chip decoding to select the desired data source. The 'LS151 selects one of eight data sources. The 'LS151 has a strobe input which must be at a low logic level to enable these devices. A high level at the strobe forces the W output high, and the Y output low. The 'LS151 features complementary W and Y outputs. \n

Features of 74151 Data Selectors/Mux

Select one of eight data lines
Performs parallel-to-serial conversion
Permits multiplexing from N lines to one line
Also for use as a Boolean function generator
Typical average propagation delay time data input to W output 12.5 ns
Typical power dissipation 30 mW
An alternate Military/Aerospace device (54LS151) is available. Contact a National Semiconductor Sales Office/Distributor for specifications.

Specifications of 74151 Data Selectors/Mux:

Recommended Operating Voltage:4.75-5.25V
Minimum High-Level Input Voltage:2V
Maximum Low-Level Input Voltage:0.8V
Made in China
