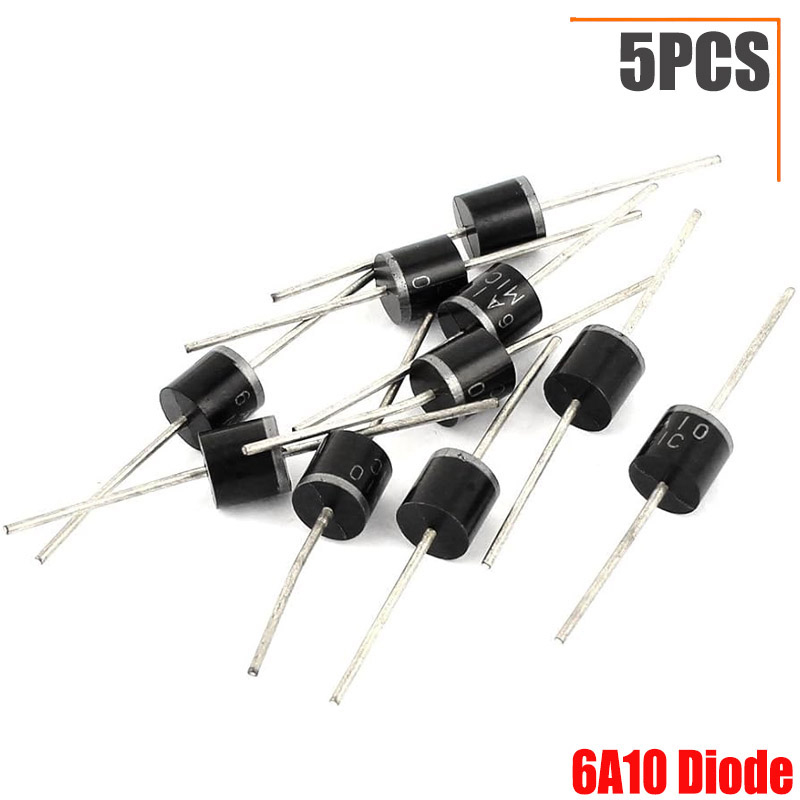

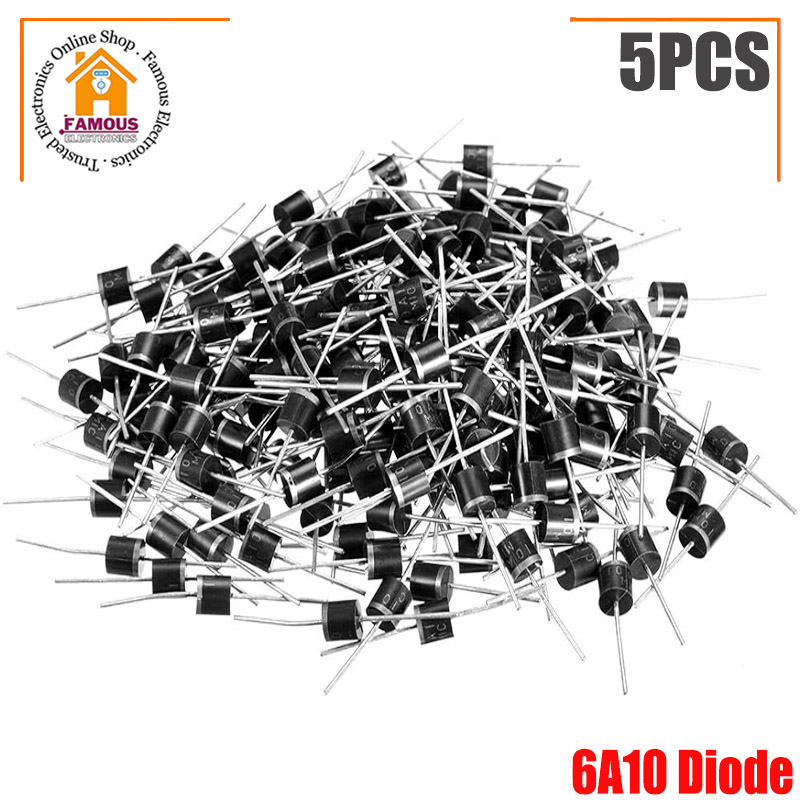

5PCS 6A10 Diode 1000V 6A General Rectifier Diode - Black

FEATURES

• The plastic package carries Underwriters Laboratory
• Flammability Classification 94V-0
• Construction utilizes void-free molded plastic technique
• Low reverse leakage
• High forward surge current capability
• High temperature soldering guaranteed: 250°C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension

MECHANICAL DATA

• Case : JEDEC R-6 Molded plastic body
• Terminals : Solder plated, solder able per MIL-STD-750,Method 2026
• Polarity : Polarity symbol marking on body
• Mounting Position : Any
• Weight : 0.072 ounce, 2.05 grams

• Product Name : Rectifier Diode ;
• Model: 6A 1000V;
• Lead Diameter : 1.2mm / 0.047″
• Total Dimension : 9 x 61mm
• Color : Black, Silver Tone
• Net Weight : 3GM
• Model: 6A10
• Type: Rectifier Diode
• Amp: 6A
• Volt: 1000V
• Package: R-6
• Qty: 5PCS
