1, the use of conventional topology BOOST complete set of constant voltage output, the internal integration of MOSFET, peripheraldevices less, the system cost is low;2, wide voltage range input, the input voltage up to 35V;3, the output voltage can be adjusted, the highest can support 40V;4, built-in over temperature protection, over current protection of the full set of reliability protection circuit, highreliability;5, system conversion efficiency can reach more than 90%, easy to heat design;6, TO263-5L standard package, suitable for 30W within the boost application.

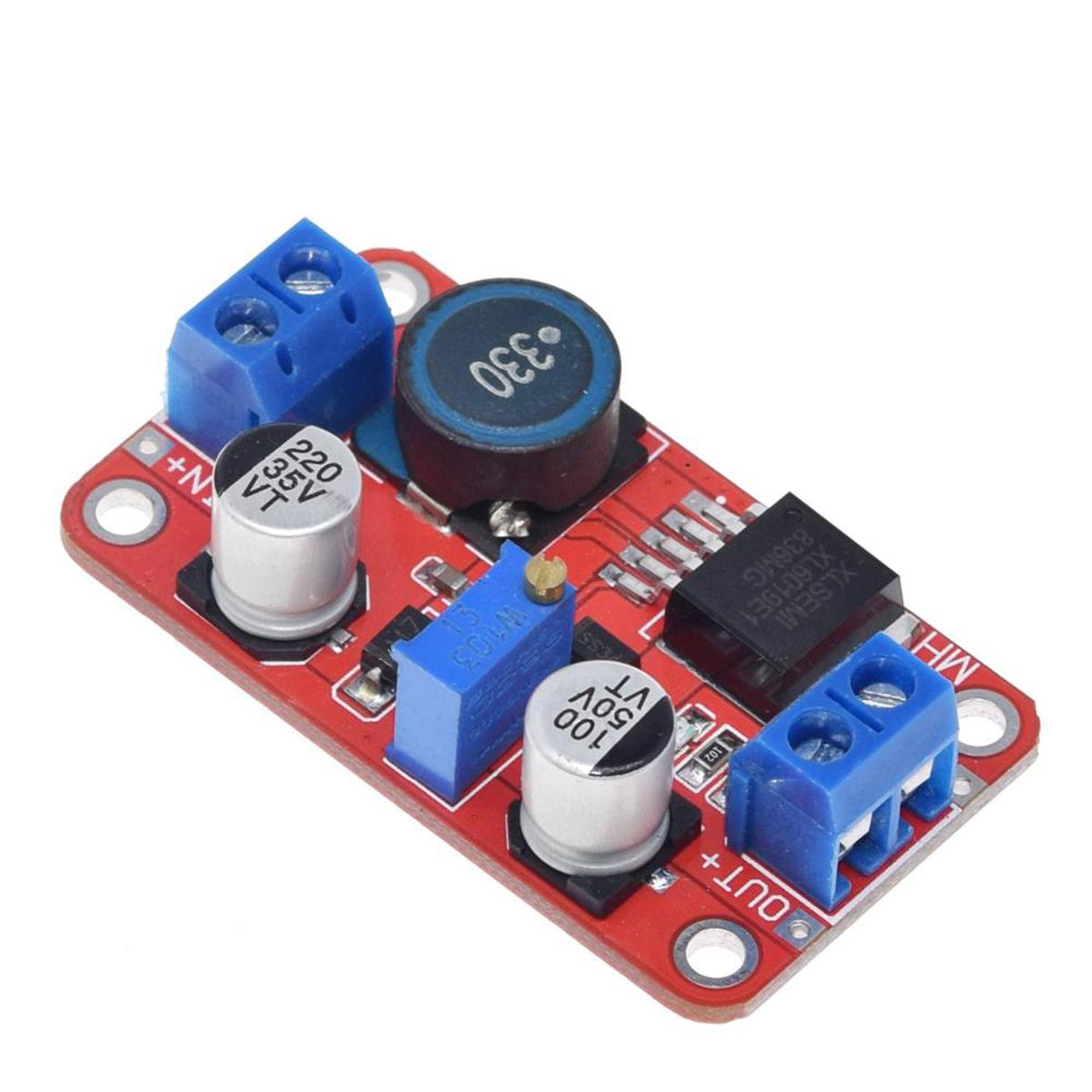

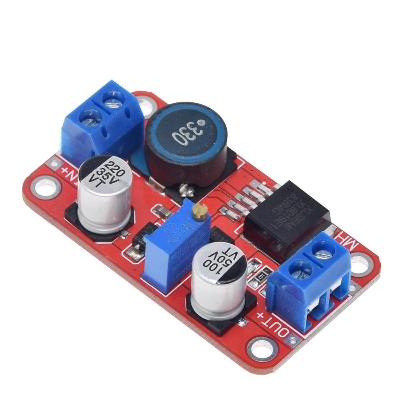

• Model Specifications: XL6019 boost module
• Module Properties: non-isolated step-up
• Rectification: Non-Synchronous Rectification
• Input range: Limits: 3-40V, recommended values: 3V-35V
• Output Range: Limits: 5-45V, recommended values: 5V-40V (via rotary potentiometer)
• Input Current: Limits: 0-5A, recommended values: 0-3A
• Conversion efficiency: up to 94%
• Open frequency: 220KHz, the second generation of switching power supply technology
• Output ripple: less than 100mV
• Load regulation: ± 0.5%
• Voltage regulation: ± 0.5%
• Working temperature: Limits: -40 to +150 degrees Celsius, the recommended values: -20 to +85 degrees Celsius
• Reverse polarity protection: protection against reverse input 40V
• Size: 50MM 28MM 13MM
• With back protection, import TDK inductor, with a connecting column, the output 5V/12V/24V can be adjusted, performance beyond LM2577. Using conventional topology BOOST as a constant voltage output, the internal integration of MOSFET, peripheral devices, low system cost, built-in over temperature protection, over current protection of the full set of reliability protection circuit, high reliability.
