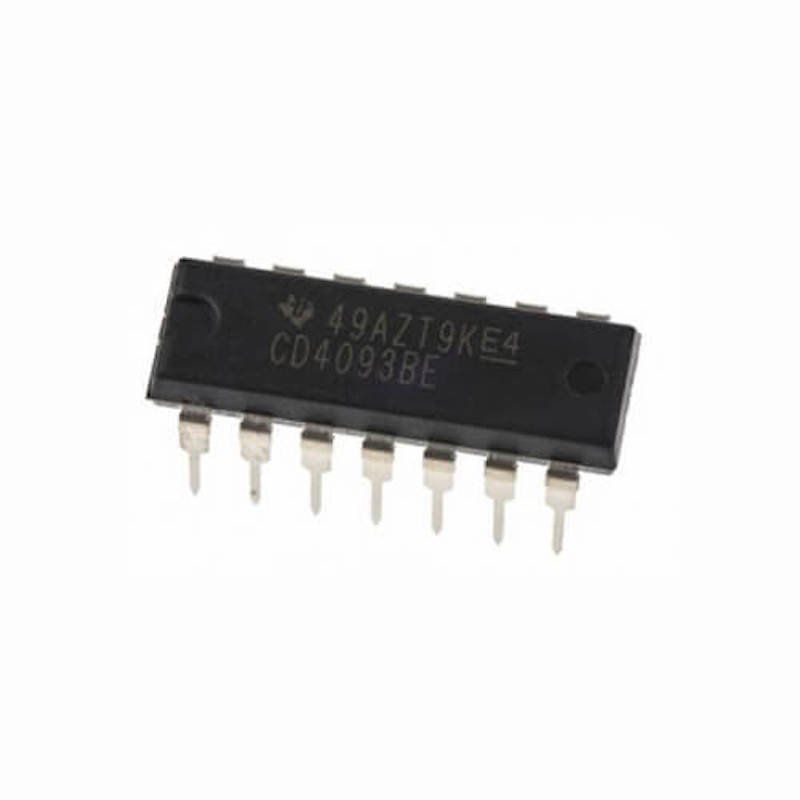

The 4093 NAND Gate consists of four Schmitt-trigger circuits. Each circuit functions as a 2-input NAND gate with Schmitt-trigger action on both inputs. The gate switches at different points for positive and negative signals. The difference between the positive (VT +) and the negative voltage (VT-) is defined as hysteresis voltage (VH). All outputs have equal source and sink currents and conform to standard B-series output drive (see Static Electrical Characteristics).
\n
Features of 4093 NAND Gate IC:
\n-
\n
- Wide supply voltage range: 3.0V to 15V \n
- Schmitt trigger on each input with no external components \n
- Noise immunity greater than 50% \n
- Equal source and sink currents \n
- No limit on input rise and fall time \n
- Standard B-series output drive \n
- Hysteresis voltage (any input) TA = 25°C Applications \n
- Wave and pulse shapers \n
- High-noise-environment systems \n
- Monostable multivibrators \n
- Astable multivibrators \n
- NAND logic \n
Specifications of 4093 NAND Gate IC:
\n-
\n
- Supply Voltage Range:-0.5V to +20V \n
- Input Voltage Range, All Inputs:-0.5V to VDD+0.5V \n
- DC Input Current, Any One Input:±10mA \n
- Power Dissipation Per package:500mW(For TA=-55°C to +100°C) \n
- Made in China \n
-
\n
- 4093 NAND Gate IC \n
- Supply Voltage Range:-0.5V to +20V \n
- Input Voltage Range, All Inputs:-0.5V to VDD+0.5V \n
- DC Input Current, Any One Input:±10mA \n
- Made in China \n
