Features of 4070 XOR Gate IC:

\n
• High-Voltage Types (20V Rating)
\n
• CD4070B - Quad Exclusive-OR Gate
\n
• CD4077B - Quad Exclusive-NOR Gate
\n
• Medium Speed Operation - tPHL, tPLH = 65ns (Typ) at VDD = 10V, CL = 50pF
\n
• 100% Tested for Quiescent Current at 20V
\n
• Standardized Symmetrical Output Characteristics
\n
• 5V, 10V and 15V Parametric Ratings
\n
• Maximum Input Current of 1mA at 18V Over Full Package Temperature Range - 100nA at 18V and 25oC
\n
• Noise Margin (Over Full Package Temperature Range)- 1V at VDD = 5V, 2V at VDD = 10V, 2.5V at VDD = 15V
\n
• Meets All Requirements of JEDEC Standard No. 13B, “Standard Specifications for Description of ‘B’ Series CMOS Devices
\n

Applications of 4070 XOR Gate IC:

\n
• Logical Comparators
\n
• Adders/Subtractors
\n
• Parity Generators and Checkers
\n

Specifications 4070 XOR Gate IC:

\n
• DC Supply Voltage Range (VDD): -0.5V to 20V
\n
• Input Voltage Range, All Inputs: -0.5V to VDD 0.5V
\n
• DC Input Current: ± 10mA
\n
• Made in China
\n

\n

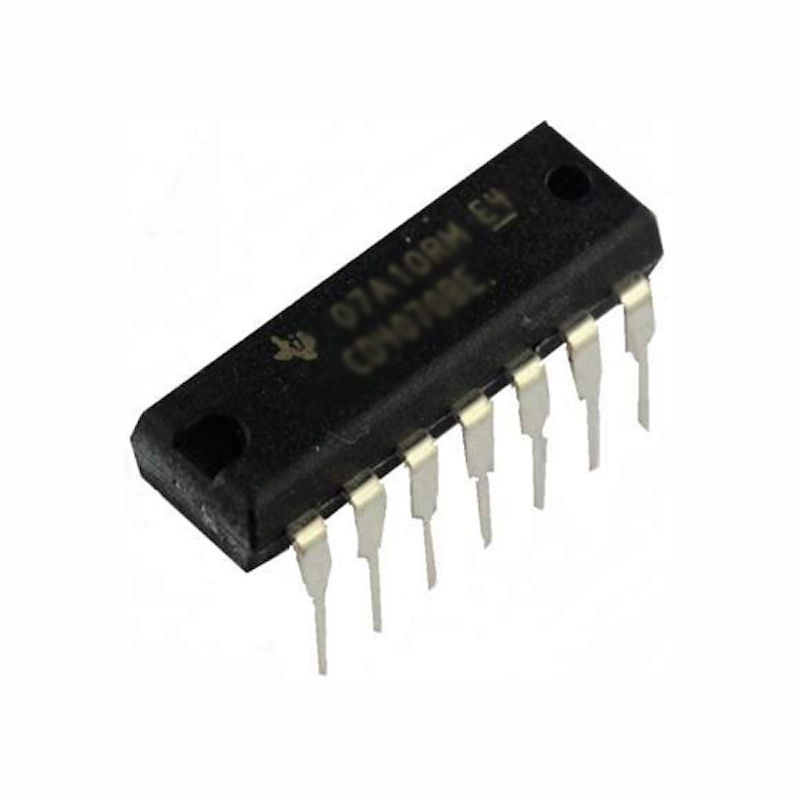

• 4070 XOR Gate IC
\n
• DC Supply Voltage Range (VDD): -0.5V to 20V
\n
• Input Voltage Range, All Inputs: -0.5V to VDD 0.5V
\n
• DC Input Current: ± 10mA
\n
• Made in China
