The CD4019B is a complementary MOS quad AND-OR Select Gate IC. Low power and high noise margin over a wide voltage range are possible through the implementation of N- and P-channel enhancement mode transistors. These complementary MOS (CMOS) transistors provide the building blocks for the 4 ``AND-OR select'' gate configurations, each consisting of two 2-input AND gates driving a single 2-input OR gate. Selection is accomplished by control bits KA and KB. All inputs are protected against static discharge damage. \n

\n
• Supply Voltage Range:-0.5V to +20V
\n
• Input Voltage Range, All Inputs:-0.5V to VDD+0.5V
\n
• DC Input Current, Any One Input:±10mA
\n
• Power Dissipation Per package:500mW(For TA=-55°C to +100°C)
\n

\n

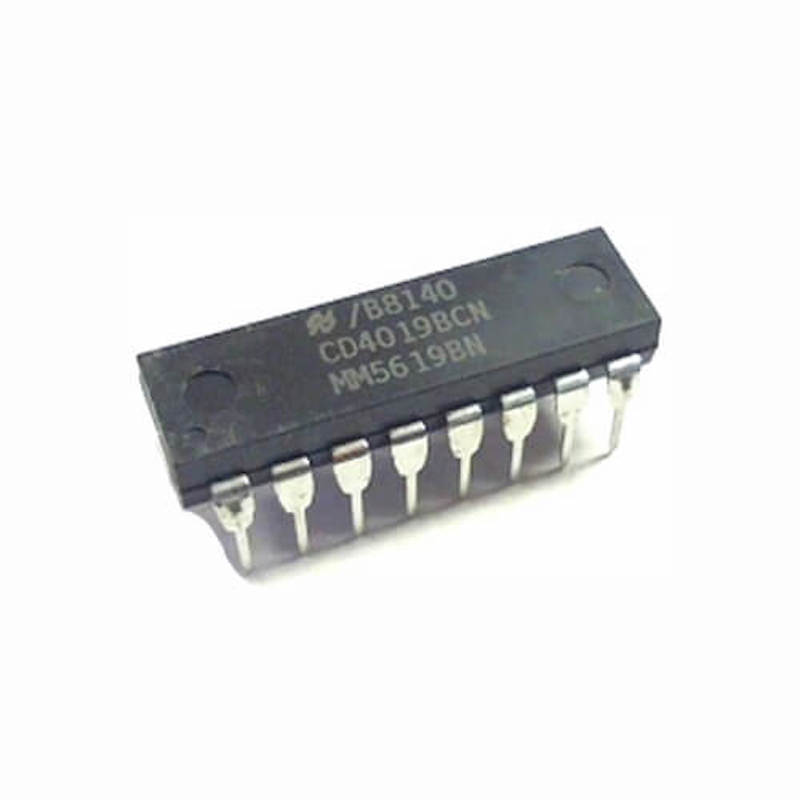

• 4019 AND-OR Select Gate IC
\n
• Supply Voltage Range:-0.5V to +20V
\n
• Input Voltage Range, All Inputs:-0.5V to VDD+0.5V
\n
• DC Input Current, Any One Input:±10mA
\n
• Made in China
