Model: HX-3S-01

• Overload voltage range: 4.25-4.35 v ? 0.05 v
• Overpressure voltage range: 2.3-3.0 v ? 0.05 v
• Size: 50 * 16 * 1.0mm
• Maximum operating current: 5-8A Operating temperature: -40 — 50 & # 8451;
• Maximum instantaneous current: 9-10A Storage conditions: -40- 80 & # 8451;
• Model: HX-3S-01
• Overload voltage range: 4.25-4.35 v ? 0.05 v
• Overpressure voltage range: 2.3-3.0 v ? 0.05 v
• Size: 50 * 16 * 1.0mm
• Maximum operating current: 5-8A Operating temperature: -40 — 50 & # 8451;
• Maximum instantaneous current: 9-10A Storage conditions: -40- 80 & # 8451;
• Current at rest: less than 6uA useful life: more than 30,000 hours
• Internal resistance: less than 60m? short circuit protection: protection, self-recovery delay.

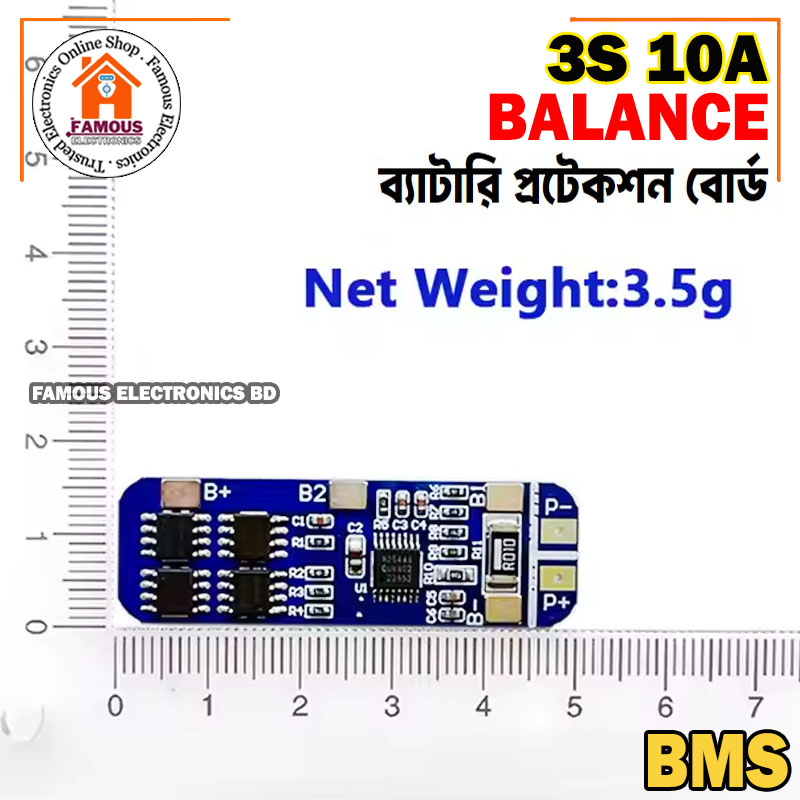

• the size of the protection board and description of the device;
• The size protection board is 50 * 16 * 1.0mm;?components for the Seiko S-8254AA protection chip and genuine FDS 4435A * 4;
• note:
• The protection board cannot be used for polymer battery iron, battery hand drill, electric fish battery machine, electric bicycle battery, 2 and then in series 24 V use, 775 (4A) above of the motor, 1 W fish eye LED light.
• described in the power range for the following products:
• vacuum cleaner battery massager, LED light backup power supply, 12V electronic products, solar battery street lamp, backup power supply monitor, and other products.
• Explanation description:

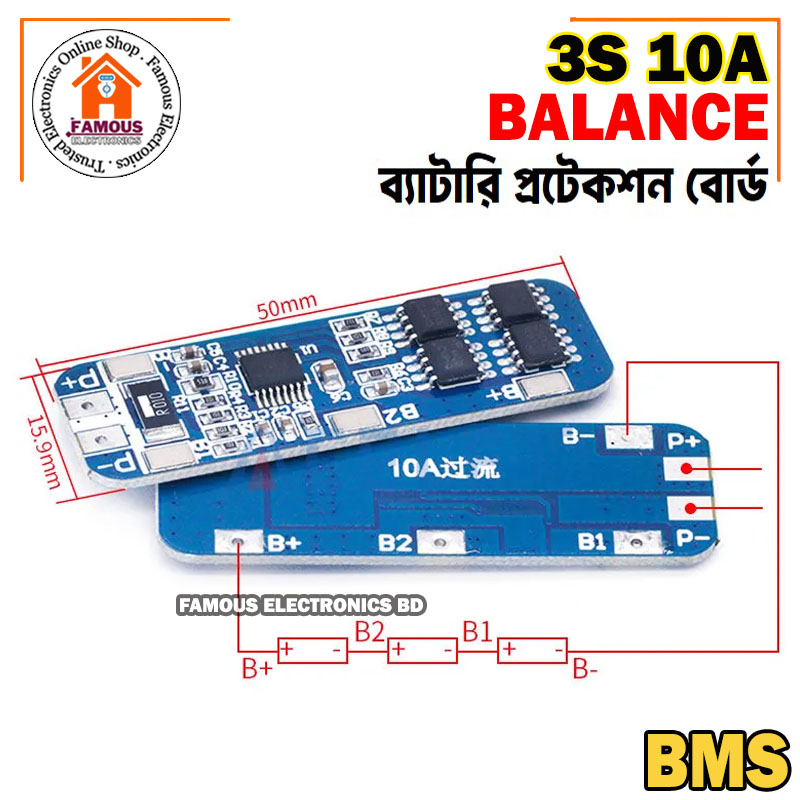

• 3 string (for 3 18650 lithium polymer batteries or batteries combination in series)
• 10.8 V (nominal voltage of lithium polymers)
• 11.1 V (18650 or 3.7 V lithium battery voltage)
• 12.6 V (lithium battery is fully charged after voltage)
• 10A discharge (referring to the maximum discharge current limit)
• lithium battery protection plate
• Comes with: overload, over discharge, over current, short circuit protection
• 18650 lithium battery should!

Supplier: FAMOUS ELECTRONICS BD
