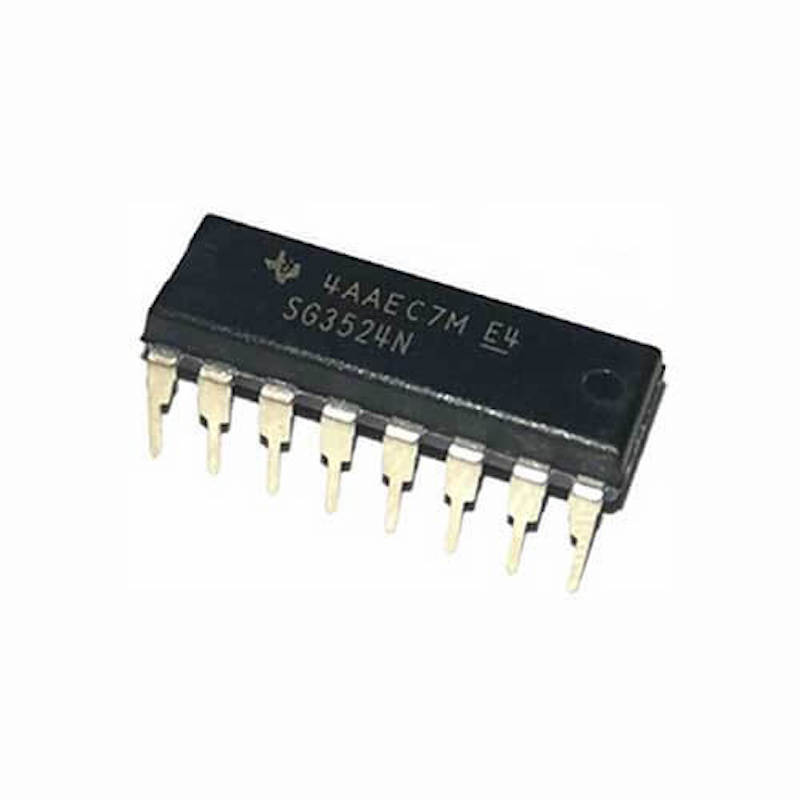

This 3524 PWM IC monolithic integrated circuit contains all the control circuitry for a regulating power supply inverter or switching regulator. Included in a 16-pin dual-in-line package are the voltage reference, error amplifier, oscillator, pulse-width modulator, pulse steering flip-flop, dual alternating output switches, and current-limiting and shut-down circuitry. This device can be used for switching regulators of either polarity, transformer-coupled DC-to-DC converters, transformerless voltage doublers, and polarity converters, as well as other power control applications. The SG3524 is designed for commercial applications of 0°C to +70°C. \n

\n
• Complete PWM power control circuitry
\n
• Single-ended or push-pull outputs
\n
• Line and load regulation of 0.2%
\n
• 1% maximum temperature variation
\n
• The total supply current is less than 10mA
\n
• Operation beyond 100kHz
\n
• Maximum Supply Voltage:40V
\n
• Power Dissipation at Tamb,70° C=1000mW
\n
• Collector Output Current=100mA
\n
• Operating Ambient Temperature Range:0°C to 70°C
\n
• Made in China
\n

\n
• 3524 PWM IC
\n
• Maximum Supply Voltage:40V
\n
• Power Dissipation at Tamb,70° C=1000mW
\n
• Collector Output Current=100mA
\n
• Made in China
