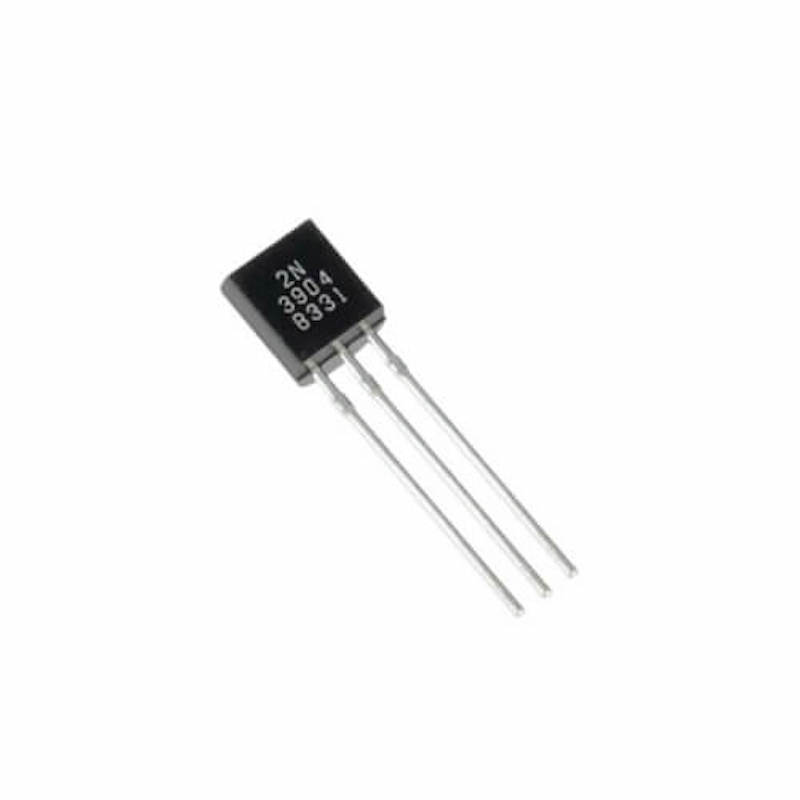

2N3904 Transistor

Category: Industrial & Others
SKU: LTBD25926
Seller: Labtex Bangladesh
App Coupon to Get Extra Discount
Tk 3
0 review(s)
    \n
  • 2N3904 Transistor
    • \n
  • Transistor Type: NPN
    • \n
  • Package/Case: DIP-13
    • \n
  • Made in China
    • \n
*

Call For Order : 09613-800800
The 2N3904 Transistor is a common NPN bipolar junction transistor used for general-purpose low-power amplifying or switching applications. It is designed for low current and power, medium voltage, and can operate at moderately high speeds. It is complementary to the 2N3906 PNP transistor. Both types were registered by Motorola Semiconductor in the mid-1960s. \n
    \n
  • Transistor Type: NPN Max Collector Current(IC): 200mA
    • \n
  • Max Collector-Emitter Voltage (VCE): 40V
    • \n
  • Max Collector-Base Voltage (VCB): 60V
    • \n
  • Max Emitter-Base Voltage (VEBO): 6V
    • \n
  • Max Collector Dissipation (Pc): 625 milliwatt
    • \n
  • Max Transition Frequency (ft): 300 MHz
    • \n
  • Minimum & Maximum DC Current Gain (hFE): 40 – 300
    • \n
  • Max Storage & Operating temperature Should Be: -55 to +150 Centigrade
    • \n
\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n
\n

General Specification

\n
Collector−Base Voltage VCBO60
Collector−Emitter Voltage VCEO40
Emitter-Base Voltage VEBO6
Product TypeGeneral Purpose Transistors 2N3903 2N3904 NPN Silicon
Operating Temperature Range (°C)–55° C to +125° C
Mounting TypeThrough Hole
Shipment Weight0.005 kg
Shipment Dimensions3 × 3 × 3 cm





    \n
  • 2N3904 Transistor
    • \n
  • Transistor Type: NPN
    • \n
  • Package/Case: DIP-13
    • \n
  • Made in China
    • \n
