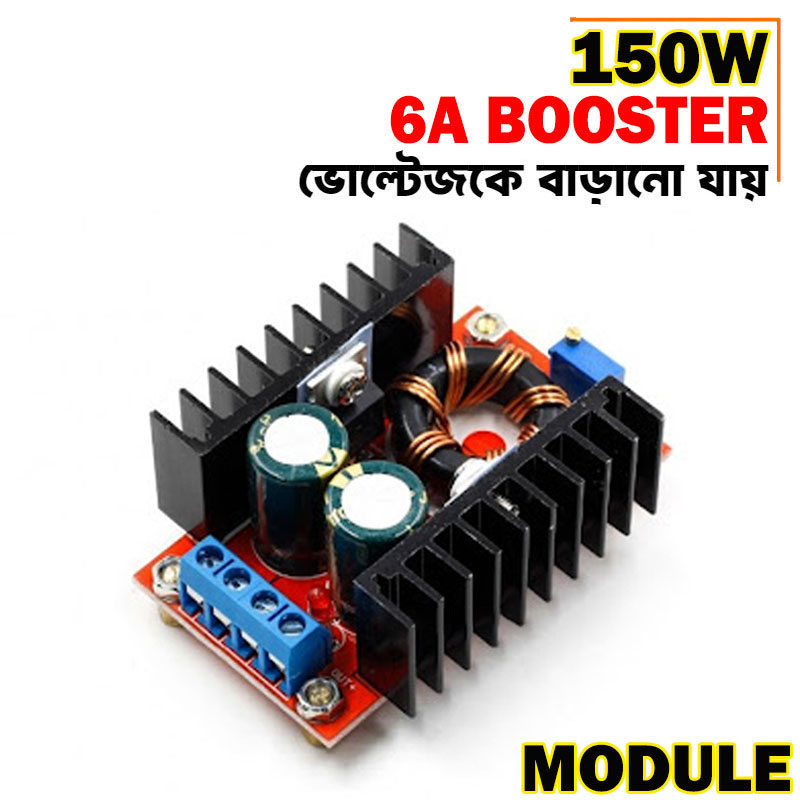

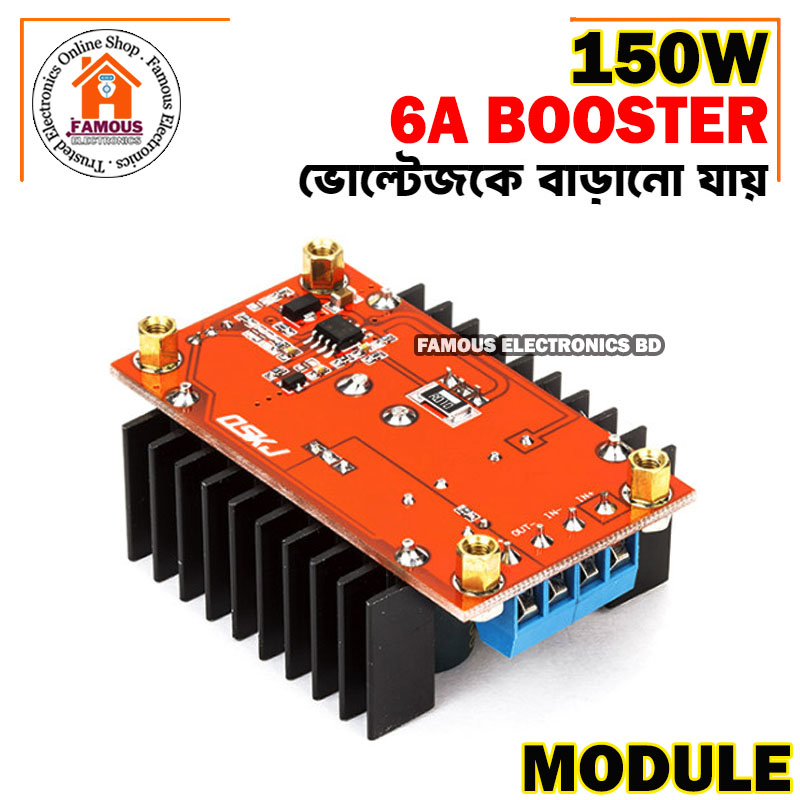

150 Watt 6 Amp Dc To Dc Step Up Boost Converter Power Module (10-32V To 12-35V) Booster - Red

• 150W DC-DC Boost Converter 10-32V To 12-35V 6A Step UPPowerModule is a DC-to-DC power converter that steps up voltage is a class of switched-mode power supply Power for the boost converter can come from any suitable DC sources, such as batteries, solar panels, rectifiers and DC generators. A process that changes one DC voltage to a different DC voltage is called DC to DC conversion. A boost converter is a DC to DC converter with an output voltage greater than the source voltage. A boost converter is sometimes called a step-up converter since it "steps up" the source voltage.
• Input voltage :10-32V
• Output voltage: 12-35V (adjustable)
• Output Current: 6A (MAX)
• Input Current: 10A (MAX) (Please enhance heat dissipation if more than 10A)
• Output power: natural cooling 100W (MAX), enhance heat dissipation 150W (MAX)
• Easy to drive 65W 90W dual-core notebook.
• Use a 12V battery drive 19V 3.42A notebook, the module temperature about 45c
• Conversion efficiency: 94% (measured at Input 16V, output 19V 2.5A)
• Output Ripple: 2% (MAX) 20M-bandwidth
• Operating Temperature: Industrial (-40c to +85c) (ambient temperature exceeds 40c, lower power use, or to enhance heat dissipation)
• Full load temperature rise: 45c
• No-load current: 25mA typical
• Voltage regulation: 0.5%
• Dynamic response speed: 5% 200uS
• Short circuit protection: None (Please Install fuses and protection circuits at Input port.)

Supplier: FAMOUS ELECTRONICS BD
