• Product Introduction:

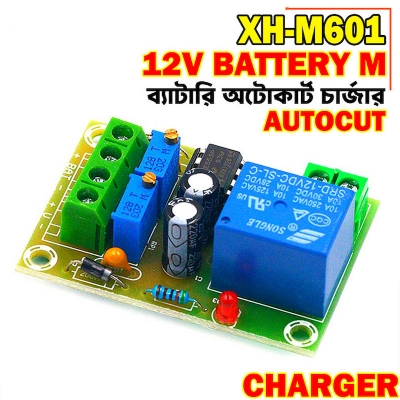

• 1.Name:12V charger power control board
• 2.Model:XH-M6013.Power Supply Voltage:13.8-14.8V4.Relay Operating Voltage:12.4V5.Relay Disconnect Voltage:14.8V6.Voltage Tolerance:+/-0.1V7.Voltage Detection Way:DC voltmeter8.Charging Type:12V storage battery9.Potentiometer Adjustment:RP1 RP210.Size:50*32*18mm
• Potentiometer Adjustment:1.RP1:adjust storage battery start charging voltage (low voltage setting:clockwise becomes higher,counter-clockwise becomes lower)2.RP2:adjust storage battery disconnect charging voltage (low voltage setting:clockwise becomes higher,counter-clockwise becomes lower)
• Package includes：1Pcs XH-M601 Battery Charging Bontrol Board

Product Introduction:

1.Name:12V charger power control board

2.Model:XH-M601

3.Power Supply Voltage:13.8-14.8V

4.Relay Operating Voltage:12.4V

5.Relay Disconnect Voltage:14.8V

6.Voltage Tolerance:+/-0.1V

7.Voltage Detection Way:DC voltmeter

8.Charging Type:12V storage battery

9.Potentiometer Adjustment:RP1 RP2

10.Size:50*32*18mm

Potentiometer Adjustment:

1.RP1:adjust storage battery start charging voltage (low voltage setting:clockwise becomes higher,counter-clockwise becomes lower)

2.RP2:adjust storage battery disconnect charging voltage (low voltage setting:clockwise becomes higher,counter-clockwise becomes lower)

Package includes：

1Pcs XH-M601 Battery Charging Bontrol Board
