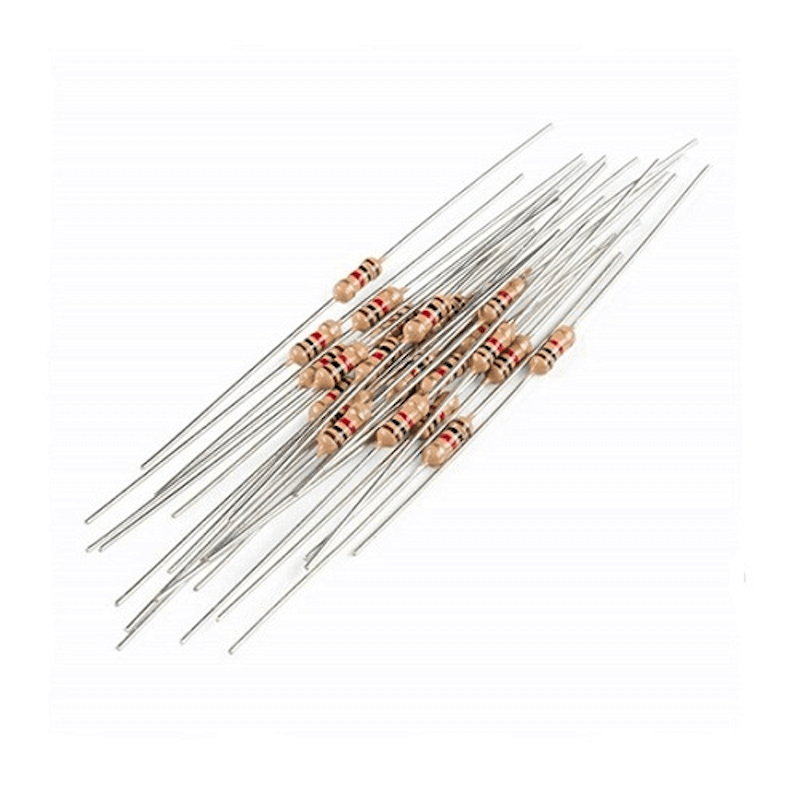

A kilo Ohm (KΩ) is a unit of electrical resistance in the International System of Units (SI). A 1/4w resistor is a type of resistor with a power rating of 1/4 watt. These resistors are commonly used in low-power electronics circuits for their compact size and affordability. The 1/4w rating indicates that the resistor can safely handle up to 1/4 watt of power without overheating or failing. The combination of a kiloohm resistance value and a 1/4 watt power rating makes this resistor a useful component in a wide range of electronic projects and applications. \n \nProduct Images are shown for illustrative purposes only and may differ from the actual product. \n

Applications of the Resistors:

\n

\n
• Voltage divider circuits: A Kiloohm resistor can be used to divide voltage in circuits to create a desired voltage level for various electronic components.
\n
• Current limiting: A resistor with a kiloohm resistance value can be used to limit the current flowing in a circuit, providing protection for sensitive components.
\n
• Pull-up and pull-down resistors: Kiloohm resistors can be used as pull-up or pull-down resistors in digital circuits to provide a default state for inputs and outputs.
\n
• Filter circuits: Kiloohm resistors can be used in filter circuits to reduce the amplitude of high-frequency signals, allowing for a clearer signal to be transmitted or received.
\n
• Precision voltage measurements: Kiloohm resistors can be used in combination with other components to measure voltage levels with a high degree of accuracy.
\n
• Blinking LED circuits: The Kiloohm resistor can be used in blinking LED circuits to control the brightness and frequency of the LED's flashing.
\n
• Power distribution: A Kiloohm resistor can be used in power distribution circuits to reduce voltage levels, providing a stable power source for components that require lower voltage levels.
\n

\n

General Specifications

\n

\n
• Resistance: 1KΩ
\n
• Tolerance: 1%
\n
• Maximum Working Voltage: 250V
\n
• Maximum Overload Voltage 500V
\n
• Temperature Coefficient: ±50 ppm/°C
\n
• Operating Temperature Range –40 to 150°C
\n
• Mounting Type: Through Hole
\n
• Length: 6mm
\n
• Width: 1.7mm
\n
• Weight: 12gm
\n
• Shipment Weight 0.01 kg
\n
• Shipment Dimensions 7 × 9 × 0.1 cm
\n

\n
• Kilo Ohm (KΩ) 1/4w (250mW) Resistors
\n
• Quantity: 10 Pcs Pack
\n
• Size: 1 KΩ, 10 KΩ, 100 KΩ, 2.2 KΩ, 27 KΩ, 39 KΩ, 4.7 KΩ, 47 KΩ
\n
• Made in China
\n
