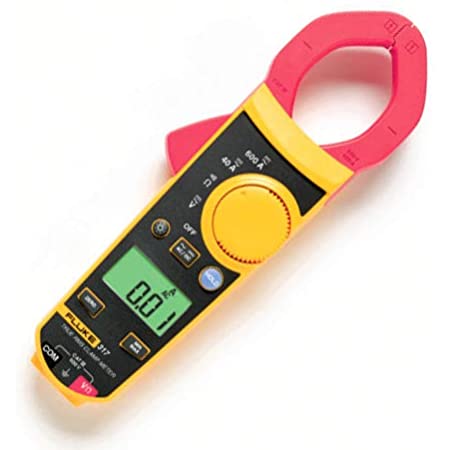

Fluke 317 AC/DC Clamp Meters 600A

Name: Fluke 317 AC/DC Clamp Meters 600A
SKU: KTR1056
Price: 41,325 BDT
Availability: InStock

Category: Building Materials

SKU: KTR1056

Seller: Kings Trading

Visa/Mastercard 10% Discount(T&C)

Nagad 10% instant Cashback(T&C)

Tk 28,927

Tk 41,325

30% OFF

Call For Order : 09613-800800

Product overview: Fluke 317 Clamp Meters

The Fluke 317 and 319 are designed with ergonomic concepts, shaped to fit your hand and to access tight spots easily. These small and rugged clamp meters are ideally suited for current measurements up to 1000 A (319) in tight cable compartments. The Fluke 317and 319 also offer AC/DC current measurements and has a higher resolution for loads below 40 A. In addition to a compact package with a strong feature set, the Fluke 319 also equip with In-rush current and Frequency functions for testing motors, lighting, etc.


Product overview: Fluke 317 Clamp MetersThe Fluke 317 and 319 are designed with ergonomic concepts, shaped to fit your hand and to access tight spots easily. These small and rugged clamp meters are ideally suited for current measurements up to 1000 A (319) in tight cable compartments. The Fluke 317and 319 also offer AC/DC current measurements and has a higher resolution for loads below 40 A. In addition to a compact package with a strong feature set, the Fluke 319 also equip with In-rush current and Frequency functions for testing motors, lighting, etc.



317 Electrical specifications

Current AC
Range
40.00 A, 600.0 A

Resolution
0.01 A, 0.1 A

Accuracy
1.6% ±6 digit (50-60 Hz) {40 A}

2.5% ±8 digit (60-500 Hz) {40 A}

1.5% ±5 digit (50-60 Hz) {600 A}

2.5% ±5 digit (60-500 Hz) {600 A}

Crest Factor add 2% into spec for CF > 2
3.0 Max @ 500 A, 2.5 Max @ 600 A

AC response
rms

Current DC
Range
40.00 A, 600.0 A

Resolution
0.01 A, 0.1 A

Accuracy
1.6% ±6 digit (40 A)

1.5% ±5 digit (600 A)

Voltage AC
Range
600.0 V

Resolution
0.1 V

Accuracy
1.5% ±5 digit (20-500Hz)

AC response
rms

Voltage DC
Range
600.0 V

Resolution
0.1 V

Accuracy
1% ±4 digit

Resistance
Range
400.0 Ω, 4000 Ω

Resolution
0.1 Ω, 1 Ω

Accuracy
1% ±5 digit

Continuity
≤ 30 Ω

Inrush
Integration time
N/A

Frequency
Range
N/A

Accuracy
N/A

Trigger Level
N/A

Environmental specifications

Operating temperature
14°F to 122°F (-10 °C to 50 °C)

Storage temperature
-40 °F to 140 °F (-40 °C to 60 °C)

Operating humidity
Non-condensing (< 50 °F) (< 10 °C)

90% RH (50 °F to 86 °F) (10 °C to 30 °C)

75% RH (86 °F to 104 °F) (30 °C to 40 °C)

45% RH (104 °F to 122 °F) (40 °C to 50 °C)

(Without condensation)

Operating altitude
1 mile (2000 meters) above mean sea level

Storage altitude
7 miles (12,000 meters) above mean sea level

IP Rating
IP40

Vibration requirements
Random MIL-PRF-28800F Class 2, 5-500 Hz, 30 minutes per axis

Drop test requirements
3 ft (1 m) drop test, six sides, oak floor

EMI, RFI, EMC
Instrument unspecified for use in EMC field ≥ 0.1 V/m

Temperature coefficients
0.1x (specified accuracy)/ °C

(<64 °F or > 82° F)

(<18 °C or > 28 °C)
