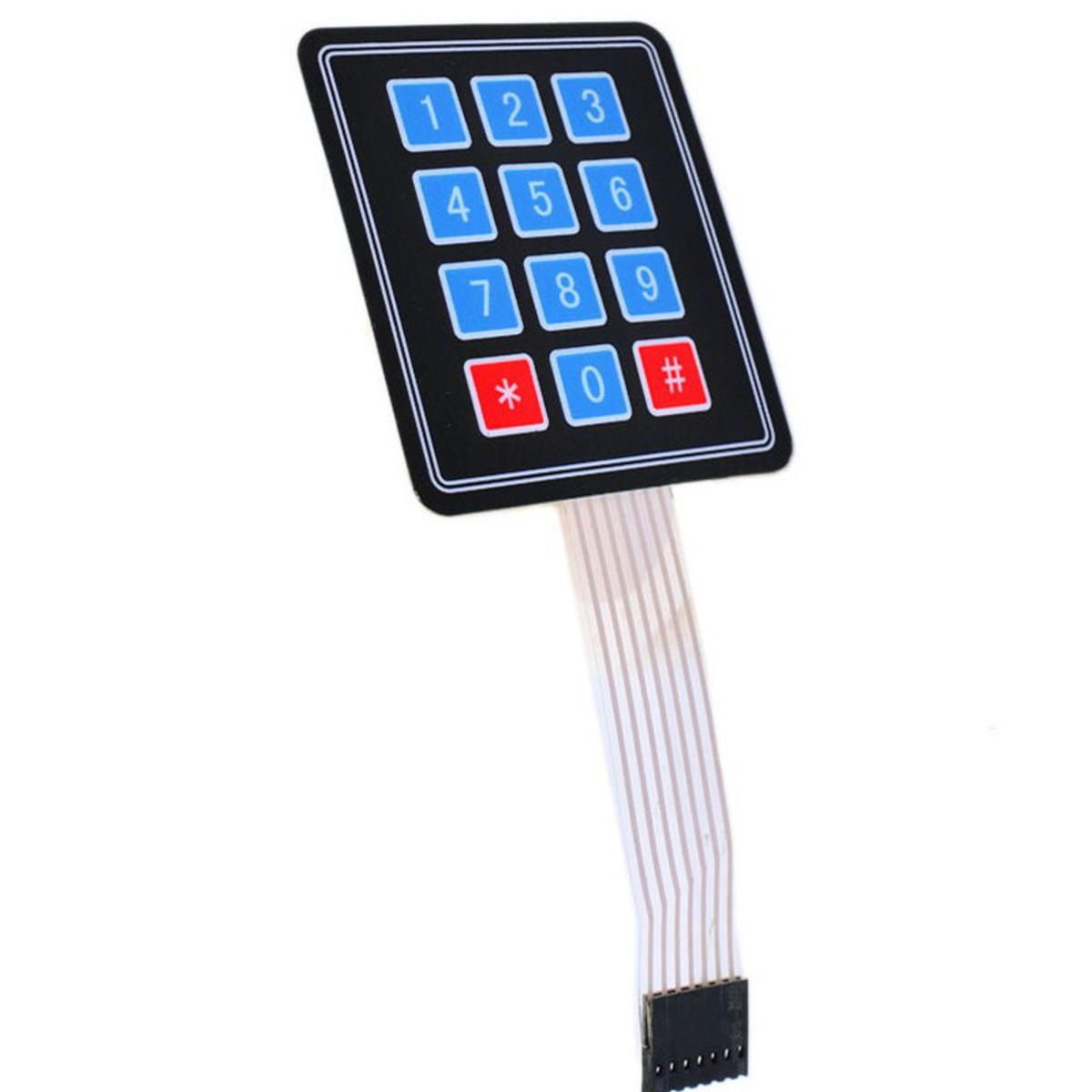

Picture of Flexible keypad for Arduino Matrix (3x4)
Picture of Flexible keypad for Arduino Matrix (3x4)

Flexible keypad for Arduino Matrix (3x4)

Category: Building Materials
SKU: 00754
Seller: Kings Trading
Tk 90
Tk 120
Tk 120
25% OFF
0 review(s)

Call For Order : 09613-800800
  • Flexible keypad for Arduino Matrix (3x4)
  • Pad size: 69.2x76.9x0.8mm
  • Cable Length: 3-1 / 3 "or 86mm (includes connector)
  • Connector: Dupont 7-pin, 0.1" (2.54mm) pitch
  • Mounting Style: Self-adhesive
  • Maximum circuit power: 35VDC, 100mA
  • Specification isolation: 100MOhm
  • 100V Dielectric resistance: 250 VRms (60Hz, 1 min)
  • Rebound contact: <=5ms
  • Life expectancy: 1 million closings
  • Operating temperature: -20 at + 40 ° C
  • Package:
  • 1 Units X 4x3 (4x4) Matrix 12 keyboard membrane buttons
