Description

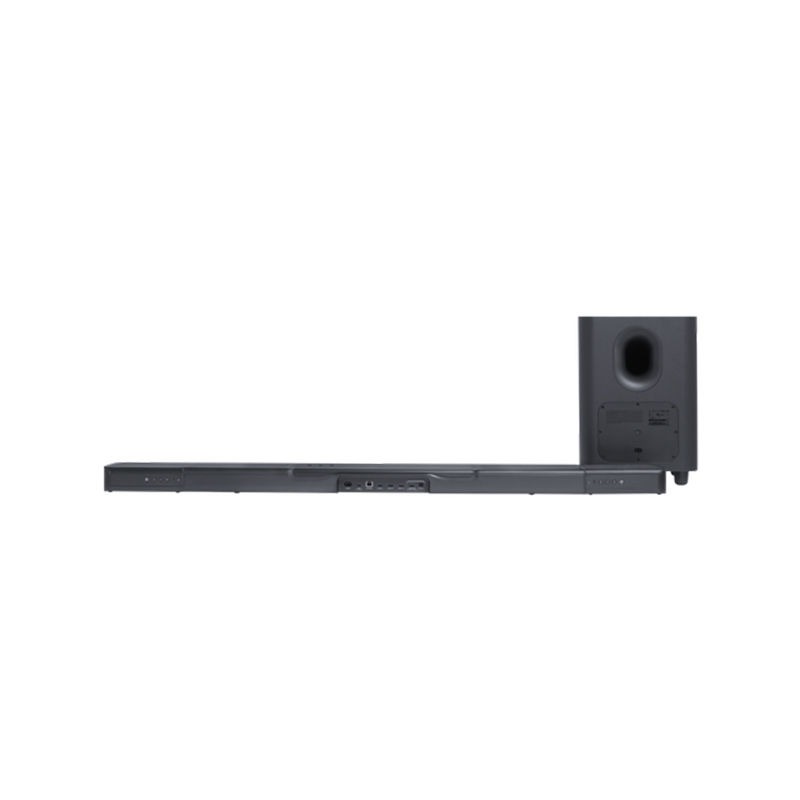

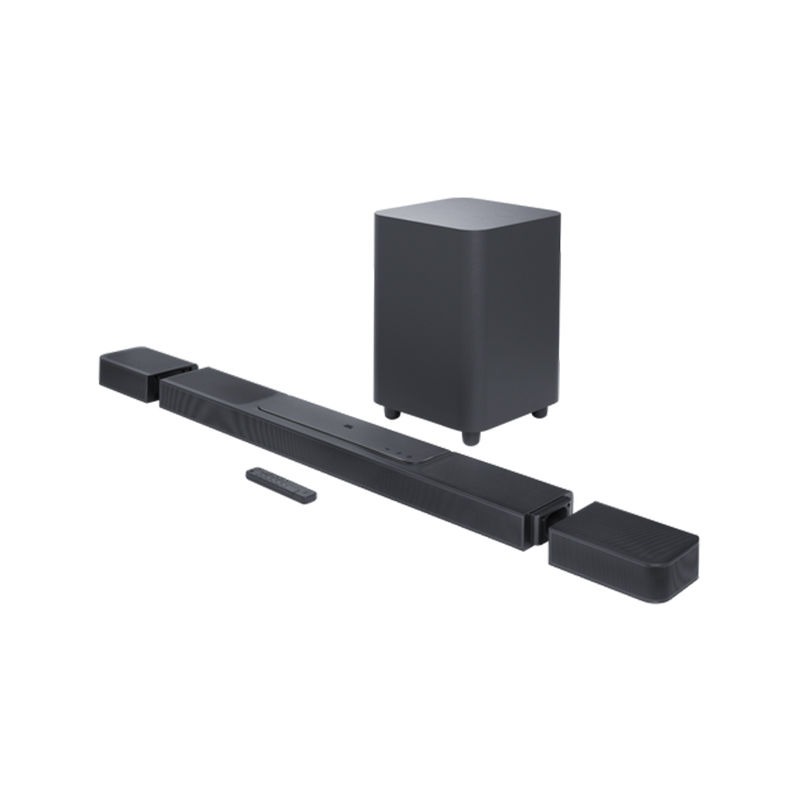

JBL Bar 1300 11.1.4-Channel Soundbar
Features:
1170W output power
Works with voice assistant-enabled speakers
10” wireless subwoofers
Standalone Bluetooth speaker
PureVoice dialogue enhancement technology
HDMI eARC with 4K Dolby vision passthrough
JBL one app
Easy sound calibration
Specifications:
Sound system: 11.1.4 channel
Power supply: 100 - 240V AC, ~ 50/60Hz
Networked standby power: < 2.0W
Operating temperature: 0°C - 45°C
Total speaker power output (Max @THD 1%): 1170W
Soundbar output power (Max @THD 1%): 650W
Surround speaker output power (Max @THD 1%): 2x 110W
Subwoofer output power (Max. @THD 1%): 300 W
Soundbar transducer: 6x (46x90) mm racetrack drivers, 5x 0.75" (20mm) tweeters, 4x 2.75" (70mm) up-firing full-range drivers
Surround speaker transducer: (46x90) mm racetrack driver, 0.75" (20mm) tweeter, 2.75" (70mm) up-firing full-range driver, 2x (48x69) mm rounded rectangle Passive Radiators
Subwoofer transducer: 10” (260mm)
Frequency response: 33Hz - 20kHz (-6dB)
Audio inputs: 1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)
Control and Connection Specifications:
USB port: Type A
USB rating: 5V DC, 0.5A
Supporting file format: MP3
MP3 codec: MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
MP3 sampling rate: 16 - 48 kHz
MP3 bitrate: 80 - 320 kbps
Bluetooth version: Main bar - 5.0, Detachable surround speaker - 5.2
Bluetooth profile: Main bar - A2DP 1.2 and AVRCP 1.5, Detachable surround speaker - A2DP 1.3 and AVRCP 1.6
Bluetooth transmitter frequency range: 2400MHz – 2483.5MHz
Bluetooth transmitter power: <15dBm (EIRP)
Wi-Fi network: IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
4G Wi-Fi transmitter frequency range: 2412 - 2472MHz (2.4GHz ISM Band, USA 11 Channels, Europe and others 13 channels)
4G Wi-Fi transmitter power: < 20dBm (EIRP)
5G Wi-Fi transmitter frequency range: 5.15 - 5.35GHz, 5.470-5.725GHz, 5.725 - 5.825GHz
5G Wi-Fi transmitter power: 5.15-5.25GHz <23dBm, 5.25-5.35GHz & 5.47-5.725GHz <20dBm, 5.725-5.825GHz <14dBm (EIRP)
4G wireless frequency range: 2406 - 2474MHz
4G wireless power: ＜10dBm (EIRP）
Battery:
Lithium battery: 3.635V, 6600 mAh
Detachable surround speaker playtime: up to 12 Hours (may vary according to content type and volume level)
