Model Name

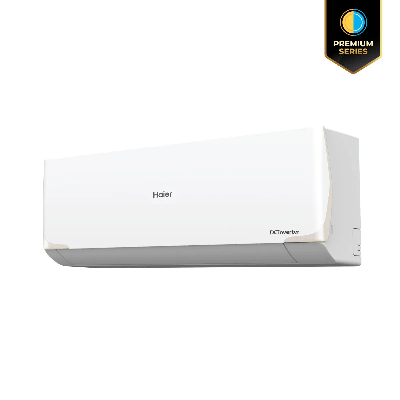

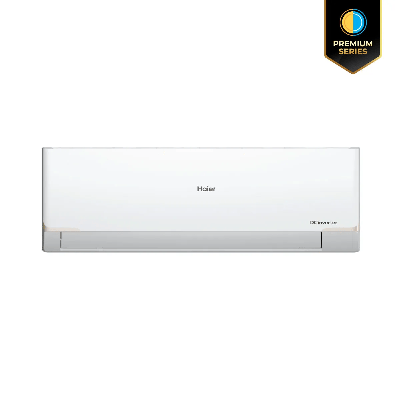

• Indoor: HSU-18HeatCool(INV)(Wifi)(3DF)(QH)
• Outdoor: HSU-18KV24(INV)H/C
• Category: Inverter
• Series: Inverter

Capacity and Parameters

• TR (Ton Range): 1.5 Ton
• Capacity(BTU): 18200
• Rated Cooling Capacity (W): 5350
• Rated Heating Capacity (W): 19000
• Rated Power Input Cooling (W): 1720
• Rated Power Input Heating (W): 1720
• Max. Power input Cooling (W): 2100
• Max. Power input Heating (W): 2030
• ENERGY EFFICIENCY RATIO (EER): 2.93
• Coefficient of Performance (COP): 2.93
• Rated Running Current (A) Cooling: 7.6
• Rated Running Current (A) Heating:7.6
• Max.Running Current (A) Cooling: 9.0
• Max.Running Current (A) Heating: 8.9
• Power supply (Ph,V,Hz): 1/230/50HZ
• Air circulation (m3/h): 900
• Moisture removal (10-3m3/h): /
• Refrigerant Type: R32
• Refrigerant standard(Kg): 0.970
• Refrigerant pipe Liquid side diameter(mm): 6
• Refrigerant pipe Gas side diameter(mm): 12
• Compressor Type: Rotary
• Evaporator/Condenser: 100% 7mm Grooved Copper
• Heat Exchangers: Golden Fin
• Indoor Net dimension (mm) W/D/H: 975*220*318
• Indoor Package dimension (mm) W/D/H: 1050*301*397
• Indoor Net weight (kg): 12.5
• Indoor Gross weight (kg): 14.5
• Indoor Sound power level [dB(A)] Hi/Mid/Lo: 47/43/40
• Outdoor
  Outdoor Net dimension (mm) W/D/H: 820*306*642
• Outdoor Package dimension (mm) W/D/H: 940*390*697
• Outdoor Net weight (kg): 36.0
• Outdoor Gross weight (kg): 38.5
• Outdoor Sound power level [dB(A)] Hi/Mid/Lo/So: 58
• Air Flow Direction
  Up & Down: Auto
• Left & Right: Auto
• User Functions
  Wifi: Yes
• Voice Control: Yes
• iFeel: No
• Cooling Mode: Yes
• Heating Mode: Yes
• Energy Saving: Yes
• Dry Mode: Yes
• Self Clean: Yes
• ECO Mode: Yes
• Turbo Function: Yes
• Auto Restart Function: Yes
• Sleep Mode: Yes
• Low Noise: Yes
• Timer: Yes
• Quick & Easy Installation: Yes
• Child Lock: Yes
