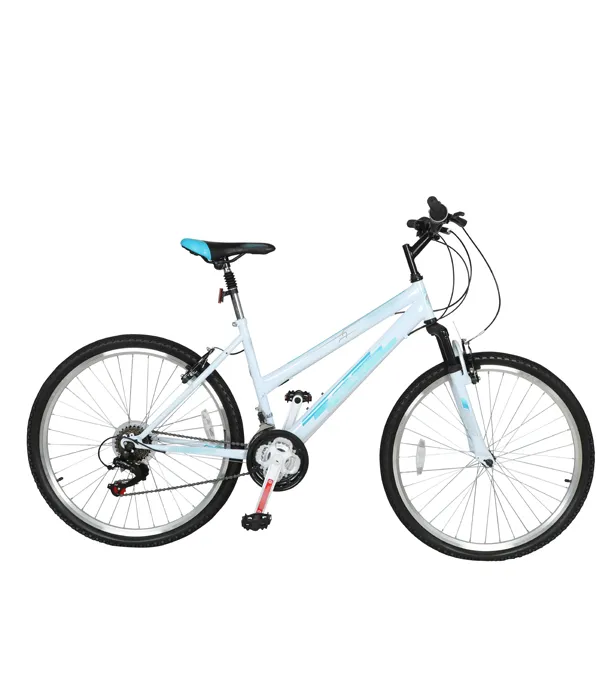

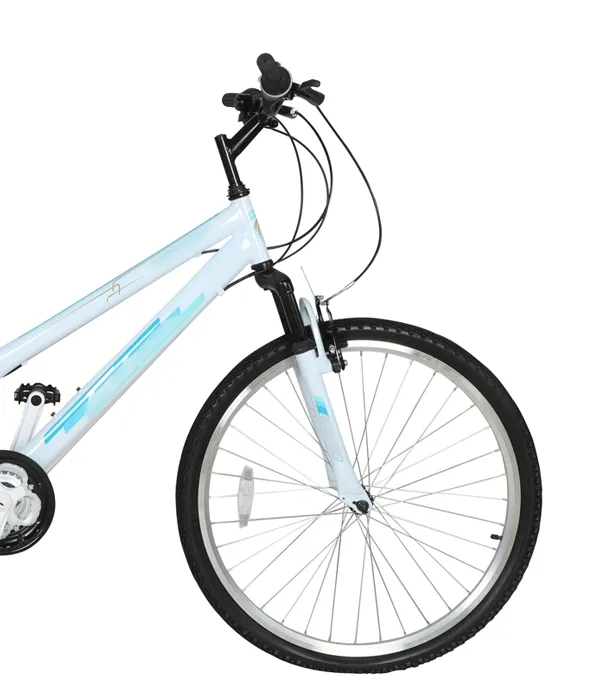

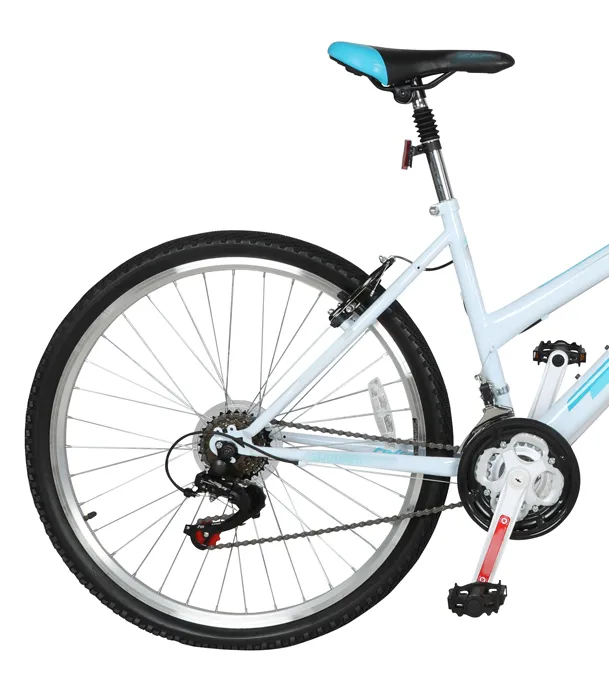

26"x17" Premium Quality 18 Speed Women's Bicycle
Item code: 849329
Model: 26"x17" Falcon Orchid
Type: 26" Steel Rigid MTB
Speed: 18 Speed Revoshift
Frame: 26"x17"mm Rigid Boys Frame, HI-TEN STEEL,TIG WELDED, Direct Mount Rear End, H/T: 30x34mmx120mmL, Seat clamp With welded
Fork: 26" Steel SUS FORK, Steerer tube: 25.4x22.2x153mmL, Steel black Crown and Stanchion with V-Brake Pivot
Head Badge: Printed with Decals
Headset: Steel 1”x24T, 22.2*30*27,  ball retainer 5/32"x16x2pcs, Set of 8Pcs
B. B. Set: BSA 1.37"x24T with BB axle
B.B Axle: Steel cotterless, Bolt type axle, Long side forword
B. B Cable Guide: Plastic for 40mm BB Shell
Decals: SKC  Decals as per artwork
Seat Bolt/Pin/Clamp: Steel seat bolt M8*40mm with Dome Nut
Handle Bar    Steel. Diameter: 22.2, Barbore-25.4mm. Width: 580mm. Rise: 30mm. Back Sweep 15°.
Stem     Steel MTB Type, Quill OD-22.2mm x150mmL, Ext: 100mm, Rise: 25deg, Barbore: 25.4mm, with Allen type expander bolt and plastic cap
Grips    TPR MTB Type 90mm/90mm (One side Opened)
Brake Levers    Full Resin Brake Lever, 3 Finger Type
Front Brake    Steel V-Brake , Arm :110mm , brake shoe-60мм EN Std., Linear spring type. Replace flat washe out side to inside.
Rear Brake    Steel V-Brake , Arm :110mm , brake shoe-60мм EN Std., Linear spring type
Brake Inner Cable    1.5*1100MM-7*8 HEAD, steel galvanized
Brake Inner Cable    1.5*1900MM-7*8 HEAD, steel galvanized
Brake Outer Casing    2P, 5mm, 500M/Roll
Shifter Right    6 SPEED BLK INDEX TWIST SHIFTER
Shifter Left    3 SPEED FRICTION TYPE TWIST SHIFTER
Front Derailleur    Down pull 28.6 mm Clamp. For 42-34-24T Chainset.
 Rear Derailleur      REAR DERAILLEUR, TOURNEY TZ, RD-RD-TZ500,   GS 6-SPEED, BRACKET  TYPE      BULK
Chain    Steel 1/2'' x 3/32'' Links, 6/Speed, 108 link
Freewheel    6 Speed Index 14-28 T
Chainwheel    Steel triple chainwheel 3/32"x24x34x42T, 24T Black, 34T Silver, 42T Black, 170mm Steel without plastic coated.Black Spider, Guard Blk.
Pedals    9/16" Boron Axle with PP body  and BS Reflectors & Ball bearing,warning decals (R+L)
Derailleur Cables Outer Casing    SP 4mm
Brake Outer Casing endcap    Steel 5mm
Derailleur Outer Casing endcap    Plastic 4mm
Inner safety endcap    Alloy
ReflectorBracket(F)    Front   Reflector, Clear, Snap on
Reflectors(Front)    Front   Reflector, Clear, Snap on
Reflector Bracket(R)    Seat Post braket, 28.6mm
Reflectors(Rear)    Rear   Reflector, Red, Snap on
Reflectors(Wheel)    Wheel Reflector, Clear,W/14GA. Rivet, BS Std
Tyres Front    26"x1.95" City Pattern tyre
Tyres Rear    26"x1.95" City Pattern tyre
Tubes/Valve    26"x1.95" Butyle tube with AV 40L Valve
Rim Tape    26" Rubber
Rims    26"x1.75 Alloy 14Gx36 Holes Double Wall with side CNC
Front Hub    Steel 14Gx3/8"x36Hx100x140mm, Black Flange Nut with Safety washer
Rear Hub    Steel 14G X 3/8" X 36H X 130 X 170mm,Black Flange Nut with Serated washer
Spokes    Steel 14Gx263mmL
Spokes    Steel 14Gx 260/262mmL
Spoke Disc    PVC 5 1/2"
Nipples    Standard
Saddle    MTB type Saddle, Steel Rails & Clamps BK With Bk Bumper
Seat Post    Suspension seat post, Steel 25.4mmx 1.6mm x300mmL.
Water Bottle Bolt    Steel Allen bolt M5x12mm
Bell    Alloy top with Resin bracket
Manual    Manual - as Buyer AW
Tools    5/6mm Steel Allen Key
Tools    Steel Multispanner
Carton    Standard 5 Ply, 85% Assembly (Carton Size:mm)
Fork Protector    Plastic # 6 (1pc Each Cycle)
Axle Protector    Plastic # 11 ( Each Bike 2 Pcs)
Axle D/T Protector    Plastic # 14 ( Each Bike 1 Pc)
Front Axle  Protector     Each Bike 1 Pc
Seat tube Protector     Each Bike 1 Pc
Head Tube Protector     Each Bike 1 Pc
Wrapping Paper    2 Ply corrogated
WRAPPING BOARD: Per bike 01 pcs
Adhesive Tape: Use Masking Tape for wrapping
Long Cable ties: Plastic Cable Tie, 420mmL
Warning decals: PVC Printing
Staples: Steel
Strapping: 12mm x 1mm
Color: Mixed (As given picture).

Bicycle Size Chart:

Delivery Condition:
*Bicycles will not be delivered as fitted, it will be delivered in a box.
*If customer wants to fitting product, customer has to pay TK 200 as fitting service charge.
*Fitting Service is applicable only for all Metropolitan area of the country. No Fitting Service will be done if the area is not under Metropolitan area.
