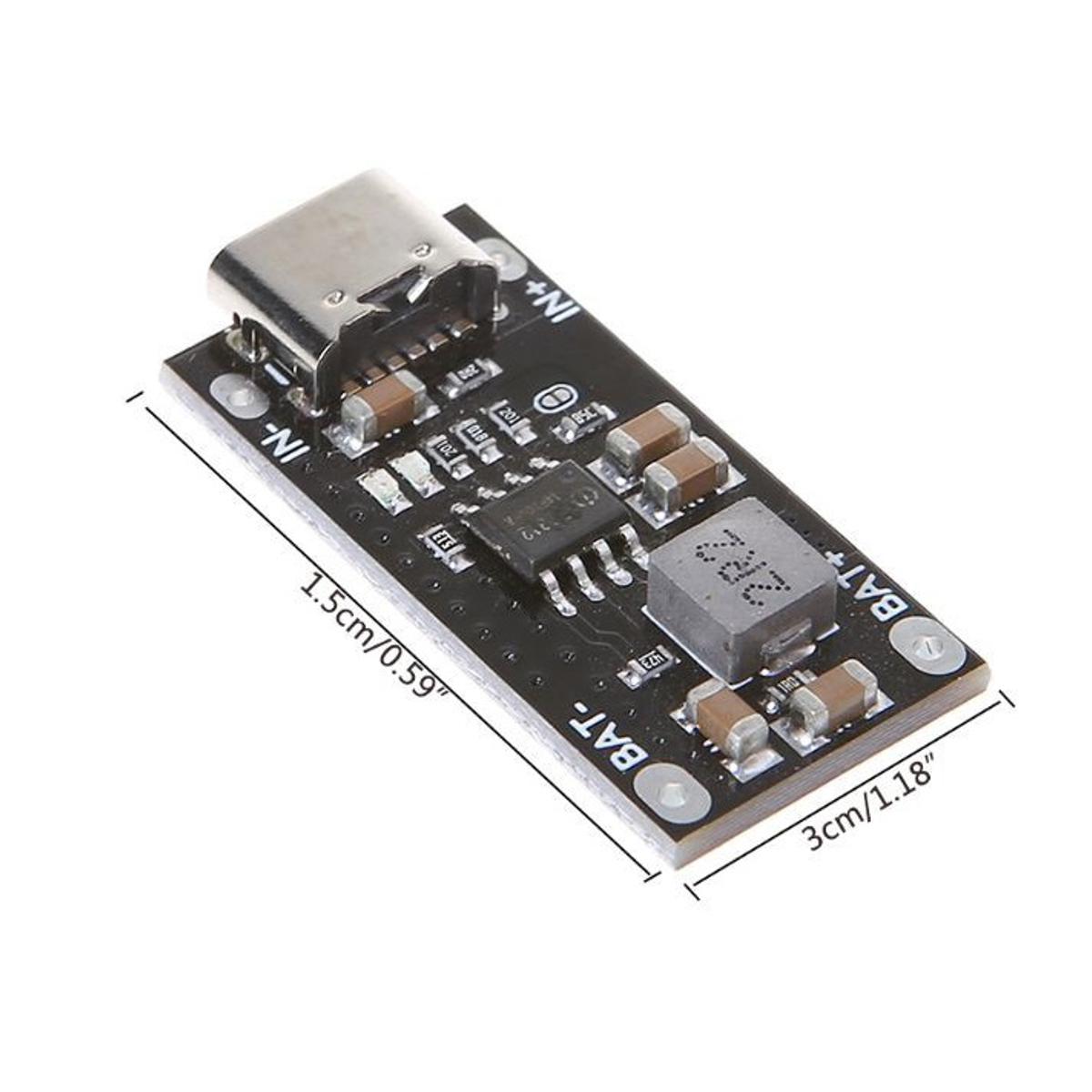

Picture of Type C USB C Input High Current 3A 5V To 4.2V 4.35V Polymer Ternary Lithium Battery Fast Charging Board IP2312
Picture of Type C USB C Input High Current 3A 5V To 4.2V 4.35V Polymer Ternary Lithium Battery Fast Charging Board IP2312

Type C USB C Input High Current 3A 5V To 4.2V 4.35V Polymer Ternary Lithium Battery Fast Charging Board IP2312

Category:
SKU: RDE02142
Seller: READY ELECTRONICS
Tk 220
Tk 500
Tk 500
56% OFF
0 review(s)
  • Main-control Chip: IP2312
  • Type: Fast Charging Board
  • Output: 4.2V,4.35V(optional)
  • Input: 4.5-5.5V
  • Charging Current: 3A
  • Size: 1.5x3cm(0.59x1.18in)



Call For Order : 09613-800800
When the battery voltage is lower than 3V, it enters trickle charging mode and charges the battery with 100mA charging current.When the battery voltage is greater than 3V, it enters the constant current charging mode to charge the battery with the set constant current charging current.When the battery voltage is close to 4.2V and the charging current is less than 300mA, the battery enters the constant voltage charging mode. After entering the constant voltage mode, stop chargingevery 4 minutes and check whether the battery voltage is higher than 4.15V: if it is higher than 4.15V, stop charging; Otherwise, continue to charge, and then after another 4 minutes after detection.When the battery is fully charged, if it is detected that the battery voltage is lower than 4.1V, it will start to charge the battery.board only,other accessories demo in the picture are not included!




  • Main-control Chip: IP2312
  • Type: Fast Charging Board
  • Output: 4.2V,4.35V(optional)
  • Input: 4.5-5.5V
  • Charging Current: 3A
  • Size: 1.5x3cm(0.59x1.18in)
