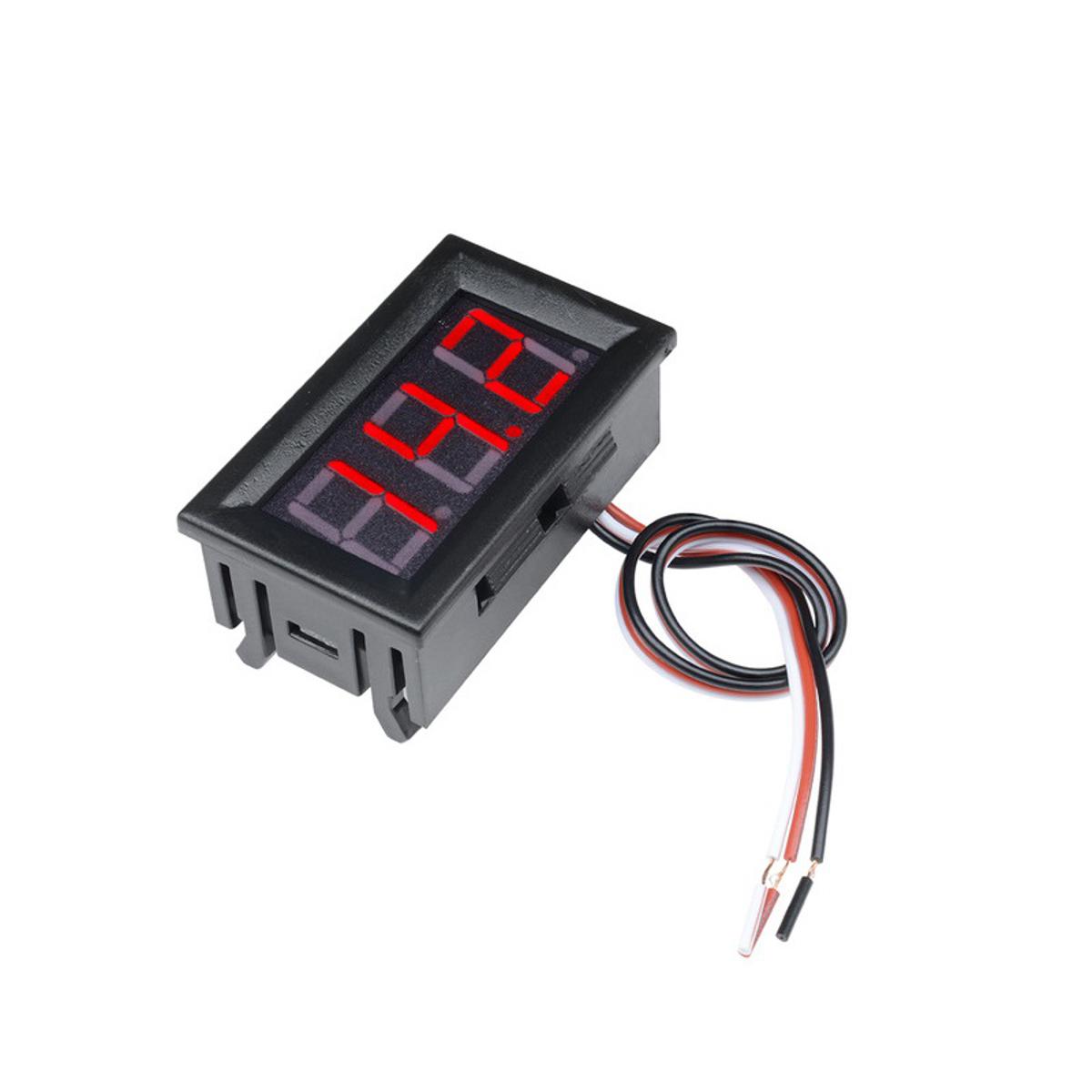

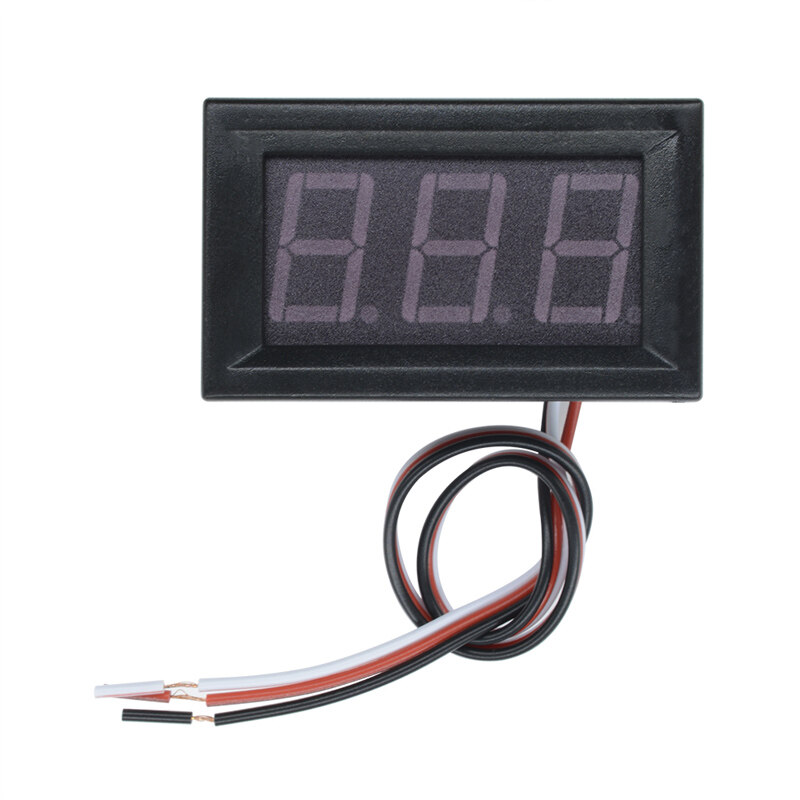

Red 0.56 inch Mini Digital Voltmeter DC 0-30V Voltage Panel Meter For 6V 12V Electromobile Motorcycle Car 3 Wires

Name: Red 0.56 inch Mini Digital Voltmeter DC 0-30V Voltage Panel Meter For 6V 12V Electromobile Motorcycle Car 3 Wires
SKU: RDE01885
Price: 350 BDT
Availability: InStock

Category:

SKU: RDE01885

Seller: READY ELECTRONICS

App Coupon & 10% Extra Savings ( T&C)

Tk 200

Tk 350

43% OFF

0 review(s)

Measuring range 0.00V-30.0V
Power supply range red DC4.50-30.0V, green DC4.70-30.0V, blue DC5.00-30.0V
Maximum input DC30.0V. Note: Input voltage higher than 30V may be permanently damaged!
Tolerance ± 1%; error greater than or equal to 10V ± 0.3V; error less than 10V ± 0.10
Input impedance> 100K ohms
Working current red <23mA, green <18mA, blue <13mA
Refresh speed of about 300mS once
Display mode three 0.56 "LED digital tube
Display color red, green, blue optional
Lead length 20cm
Dimensions 48 x 29 x 22 mm, long X wide X thick;
Mounting hole 46 x 27 mm
Net weight 19g
Gross weight 26g
Operating temperature -10 ° ~ 65 °
