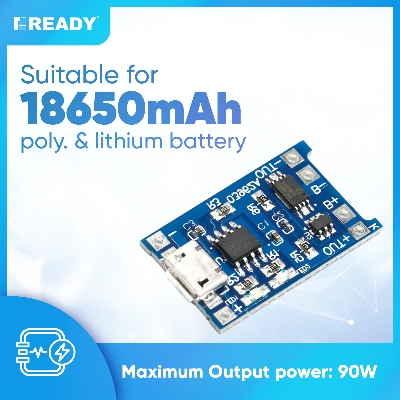

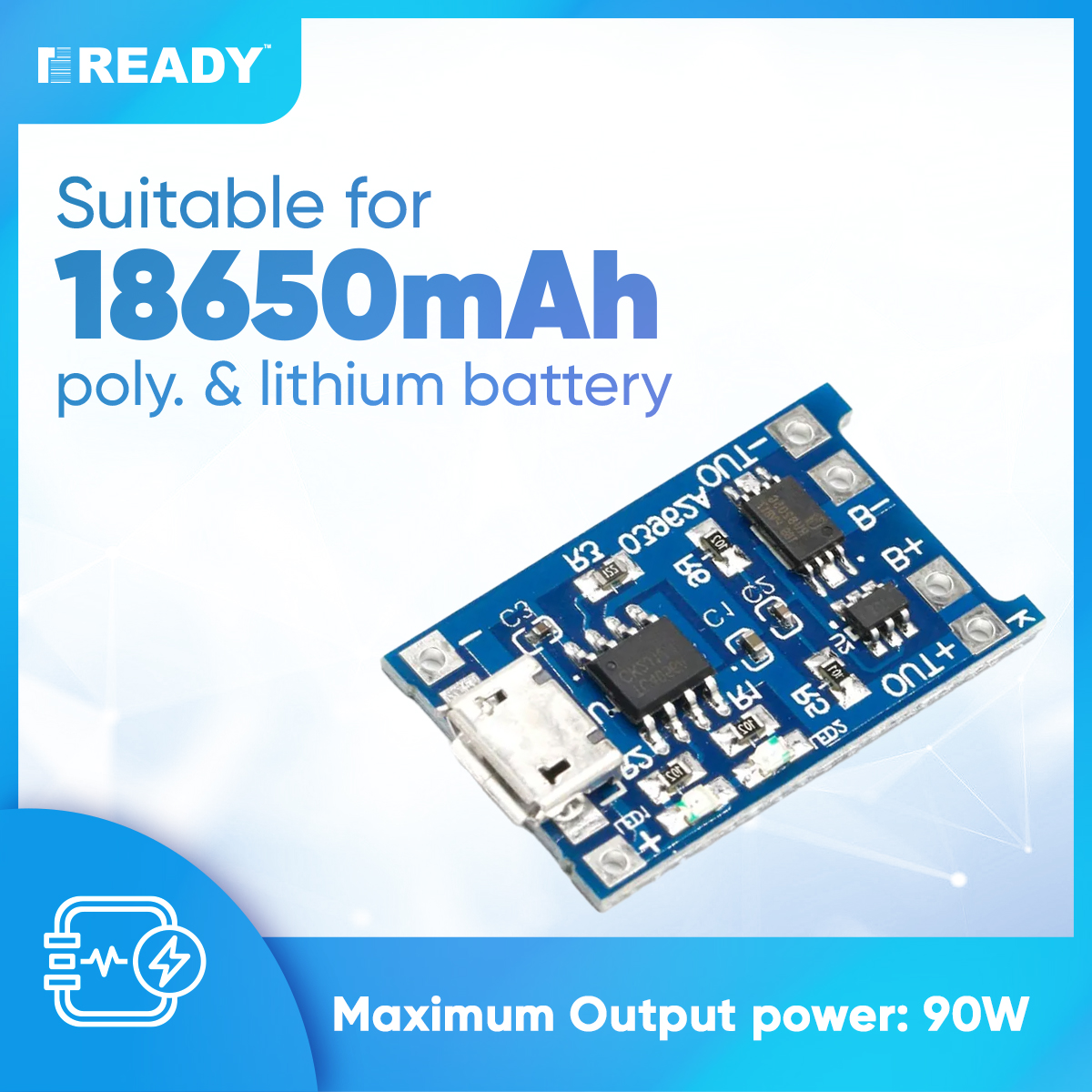

Micro USB 5V 1A 18650 TP4056 Lithium Battery Charger Module Charging Board WithProtection Dual Functions 1A

Name: Micro USB 5V 1A 18650 TP4056 Lithium Battery Charger Module Charging Board WithProtection Dual Functions 1A
SKU: RDE01773
Price: 100 BDT
Availability: InStock

Category:

SKU: RDE01773

Seller: READY ELECTRONICS

Tk 37

Tk 100

63% OFF

0 review(s)

Micro USB input terminal with a female, can be directly input to do with the phone charger rechargeable lithium battery, And still retains the input voltage wiring pads, can be very convenient DIY.
It can be used for voltage 3.6 3.7V, etc. 18650, polymer and other lithium battery charge and discharge protection.
Input voltage: 5V
Charging cut-off voltage: 4.1~ 4.2V
Maximum charge current: 1000mA
Battery over-discharge protection voltage: 2.5V
Battery overcurrentProtection current: 3A
Board size : 17.16 mm x 26.17 mm

Call For Order : 09613-800800

Micro USB input terminal with a female, can be directly input to do with the phone charger rechargeable lithium battery, And still retains the input voltage wiring pads, can be very convenient DIY.
It can be used for voltage 3.6 3.7V, etc. 18650, polymer and other lithium battery charge and discharge protection.
Input voltage: 5V
Charging cut-off voltage: 4.1~ 4.2V
Maximum charge current: 1000mA
Battery over-discharge protection voltage: 2.5V
Battery overcurrentProtection current: 3A
Board size : 17.16 mm x 26.17 mm
