Specification

Read Range: Up to 10CM

Reading Time: ≤300ms

Input Port: External LED Control , External Buzzer Control

Output Port: 26bit Wiegand (Default)

Power/Current: DC 6-14V / Max.70mA

LED: Red and Green LEDs

Operating Temperature: -10°C to +65°C

Material: ABS+PC with texture

Operating Humidity: 10% to 90% relative humidity non-condensing

Beeper: Yes

Index of Protection: IP65

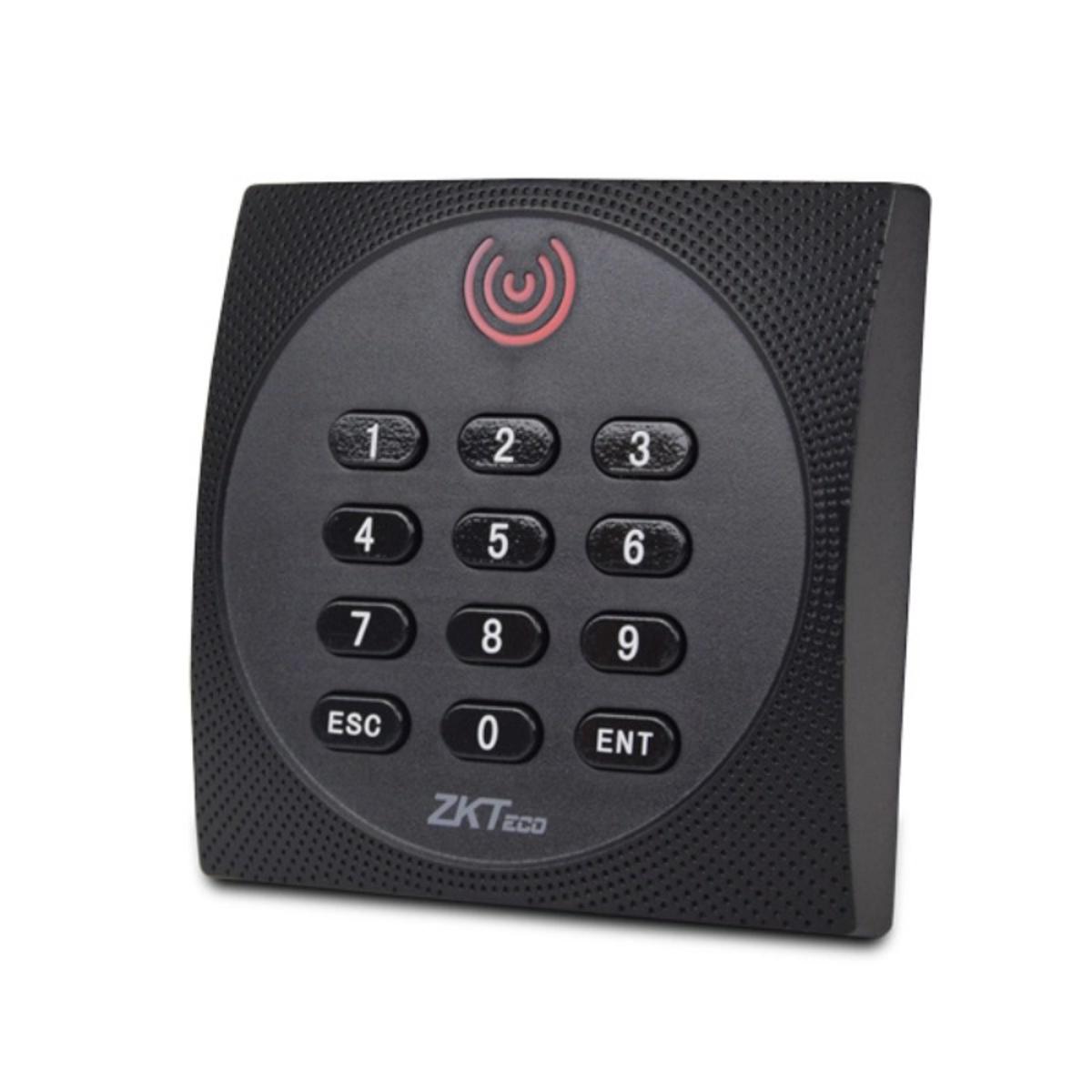

ZKTeco KR602E Wiegand Reader

• 125KHz Proximity Card Reader
• Read Range: Up to 10 CM (125KHz)
• Reading time (Card) : 300ms
• Output Card Format: 26bit Wiegand (Default)
• Power: DC 6-14V / Max.70mA
• Waterproof IP64
