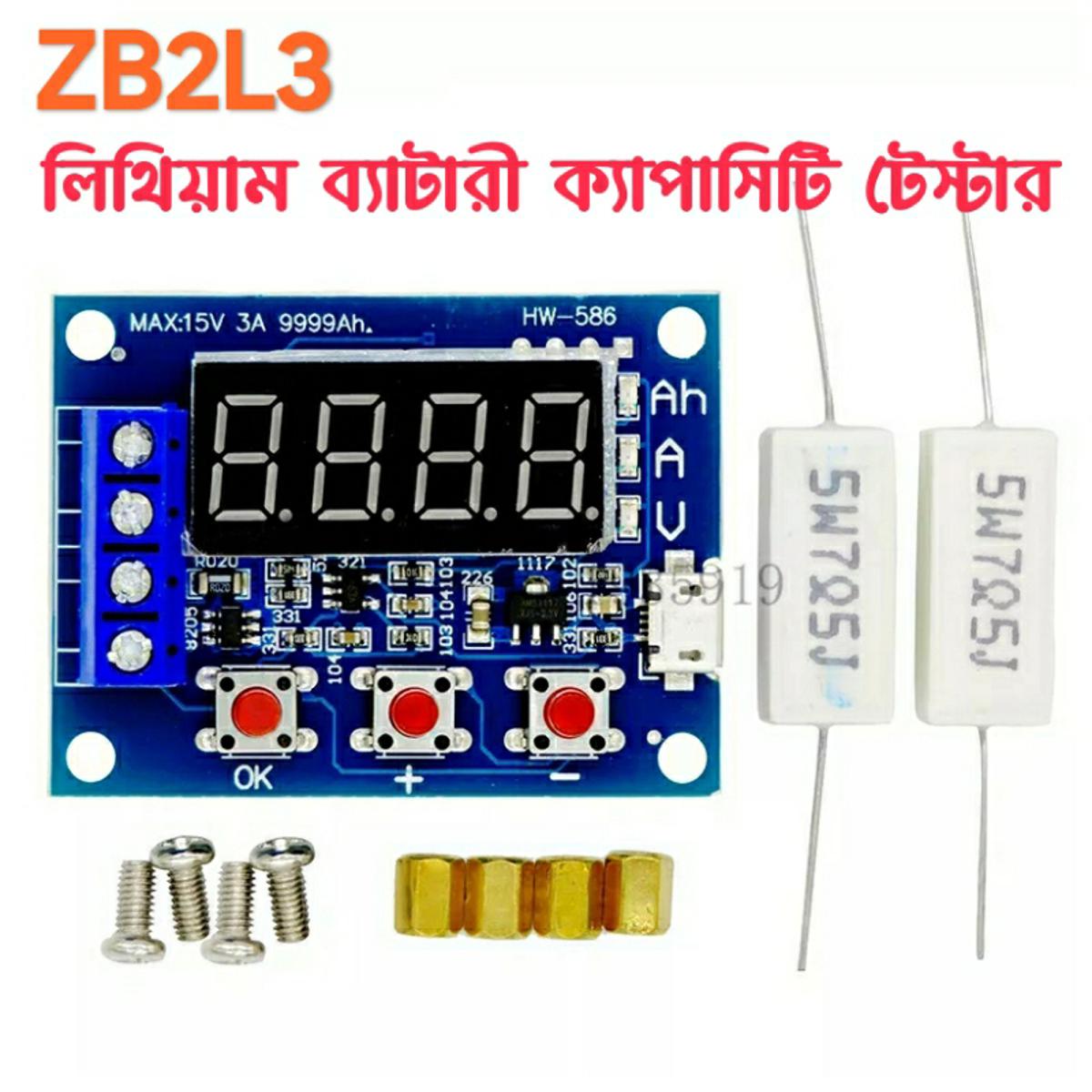

ZB2L3 Battery Capacity Tester LED Digital Display 1.2V ~12V 18650 Lithium Battery Power Supply Test Resistance Lead-acid Capacity Discharge Meter

Category: Tools
SKU: SKNT56848
Seller: Skynet
bKash 10% Cashback ( T&C)
Tk 320
Tk 544
Tk 544
41% OFF
0 review(s)
  • Power supply voltage: DC4.5-6V (micro USB connector)
  • Operating Current: less than 70mA
  • Discharge voltage: 1.00V-15.00V 0.01V resolution
  • Termination voltage range: 0.5-11.0V
  • Supported by current: 3.0O0A 0.001A resolution
  • Maximum voltage measurement error: 1% + 0.02V Maximum current measurement error: 1.5% + - 0.008A
  • Maximum battery capacity range: 9999AH (1Ah = 1000mAh) greater value by shifting the decimal point to switch, when the display is less than 1OAH X.XXX, as shown above to achieve 10Ah XX.XX, and so on.
  • Board size: 50mmX37mm
  • Finished Size: 50mmX37mmX17mm (length X width X height maximum position size, contains copper foot height)
*

Call For Order : 09613-800800





  • Power supply voltage: DC4.5-6V (micro USB connector)
  • Operating Current: less than 70mA
  • Discharge voltage: 1.00V-15.00V 0.01V resolution
  • Termination voltage range: 0.5-11.0V
  • Supported by current: 3.0O0A 0.001A resolution
  • Maximum voltage measurement error: 1% + 0.02V Maximum current measurement error: 1.5% + - 0.008A
  • Maximum battery capacity range: 9999AH (1Ah = 1000mAh) greater value by shifting the decimal point to switch, when the display is less than 1OAH X.XXX, as shown above to achieve 10Ah XX.XX, and so on.
  • Board size: 50mmX37mm
  • Finished Size: 50mmX37mmX17mm (length X width X height maximum position size, contains copper foot height)
