YF-S201 HALL EFFECT WATER FLOW METER / SENSOR

Name: YF-S201 HALL EFFECT WATER FLOW METER / SENSOR
Brand: No Brand
SKU: DTBD940773
Price: 699.00 BDT
Availability: InStock

Category: Adaptor, Cable & Hub

SKU: DTBD940773

Manufacturer: No Brand

Seller: DishanTech BD

Tk 699

0 review(s)

Call For Order : 09613-800800

Description

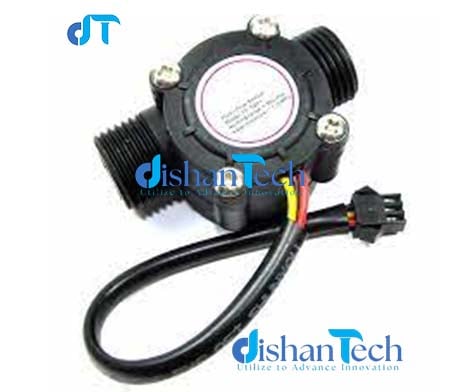

This is YF-S201 Water Flow meter Measurement Sensor with 1-30Leter/min Flow Rate in black colour. This sensor sits in line with your water line and contains a pinwheel sensor to measure how much liquid has moved Dishan Tech BD. through it. There’s an integrated magnetic hall effect sensor that outputs an electrical pulse with every revolution. The hall effect sensor is sealed from the water pipe and allows the sensor to stay safe and dry. Featured By Dishan Tech BD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

Dishan Tech BD.

Connection

Red wire: +5V
Black wire: GND
Yellow wire: PWM output Dishan Tech BD.

Features :

The simple and compact module.
Easy to Install.
High Sealing Performance.
High-Quality Hall Effect Sensor. Dishan Tech BD.

General Specification
Model	YF-S201
Working Voltage (V)	5 ~ 18
Max current draw	15mA @ 5V
Working Flow Rate (Liters/Minute)	1 ~ 30
Operating Temperature range (℃)	-25 ~ +80
Operating Humidity Range	35% – 80% RH
Accuracy	±10%
Maximum water pressure	2.0 MPa
Output duty cycle	50% +-10%
Output rise time (µsec)	0.04
Pulses per Liter	450
Output fall time (µsec)	0.18
Outer diameter (mm)	20
Intake diameter (mm)	11
Outlet diameter (mm)	11
Length (mm)	62.5
Width (mm)	36
Height (mm)	35
Weight (gm)	50
Shipment Weight	0.089 kg
Shipment Dimensions	9 × 6 × 6 cm

Please allow 5% measuring deviation due to manual measurement.

Dishan Tech BD.

Package Includes :

1 x YF-S201 Water Flow meter Measurement Sensor with 1-30Liter/min Flow Rate – Black.

Dishan Tech BD.

What is the price of YF-S201 Hall Effect Water Flow Meter / Sensor in Bangladesh?

The latest price of YF-S201 Hall Effect Water Flow Meter / Sensor in Bangladesh is BDT 440 You can buy the YF-S201 Hall Effect Water Flow Meter / Sensor at best price from our Dishan Tech BD.or visit Dishan Tech BD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product Dishan Tech BD.
