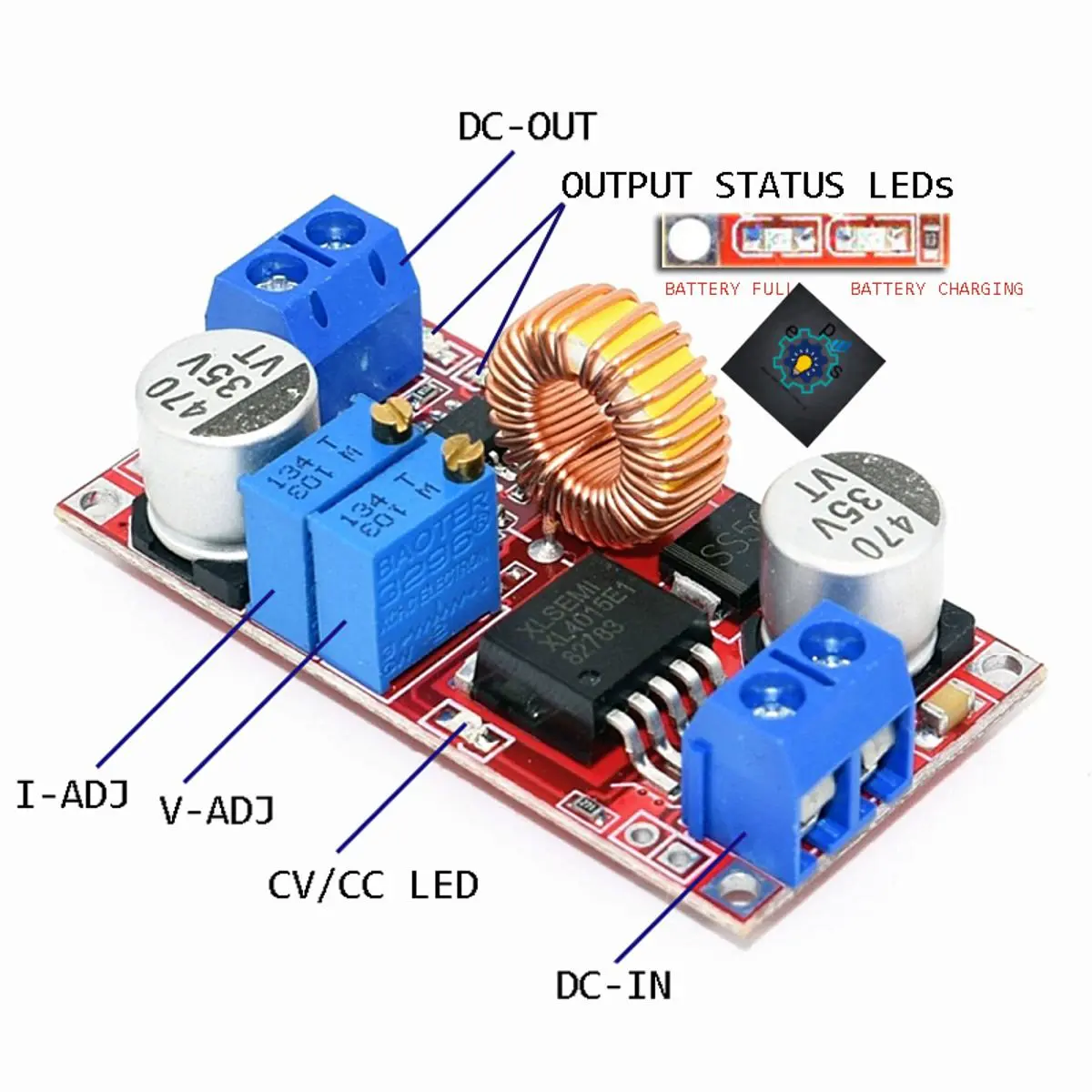

XL4015 5A DC to DC CC CV Lithium Battery Step down Charging Board Led Power Converter Lithium Charger Step Down Module XL4015E1 (Silver)

Category: Battery & Charger
SKU: PONS841635
Seller: Ponno shopping
Tk 231
Tk 550
Tk 550
58% OFF
0 review(s)

XL4015 5A DC to DC CC CV Lithium Battery Step down Charging Board Led Power Converter Lithium Charger Step Down Module XL4015E1

Call For Order : 09613-800800
  • Size: 5.2 x 2.65 x 1.4cm (L x W x H)
  • Module Properties: non-isolated constant current and voltage module
  • Rectification: non-synchronous rectification
  • Input voltage: 5V-36V
  • Output voltage: 1.25V-32V
  • Output current: adjustable maximum 5A
  • Conversion efficiency: 95% (the highest)
  • Switching frequency: 180KHz
  • Output ripple: 50mV (max) 20M bandwidth
  • Load Regulation: ± 0.5%
  • Voltage Regulation: ± 2.5%
  • Operating Temperature: -40 °c to +85 °c





XL4015 5A DC to DC CC CV Lithium Battery Step down Charging Board Led Power Converter Lithium Charger Step Down Module XL4015E1
