Specification:

• Screen Size: 7”
• Resolution: 480 (H) x 3RGB x 234 (V)
• Effective Area: 154.08mm (H) x 86.58mm (V)
• Pixel Size: 0.107 (H) x 0.370 (V)
• Input Voltage: AC100-240V 50Hz/60Hz
• Output Voltage Current: DC 12V 1100mA
• Monitoring time-lapse: 40s±10%
• Talking time-lapse: 120s±10%
• Effective Distance:50m (4 x 0.5mm2)
• Consumption:Standby state<2W
• WorkingTemperature: -10℃~+40℃
• RelativeHumidity: 10%~90 %( RH)

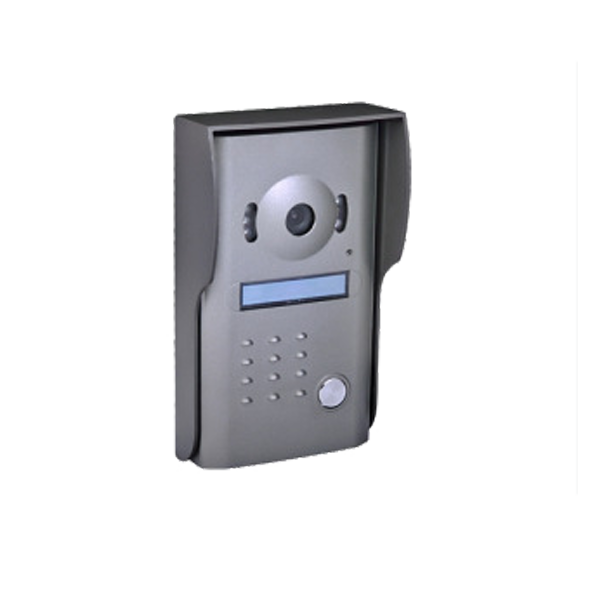

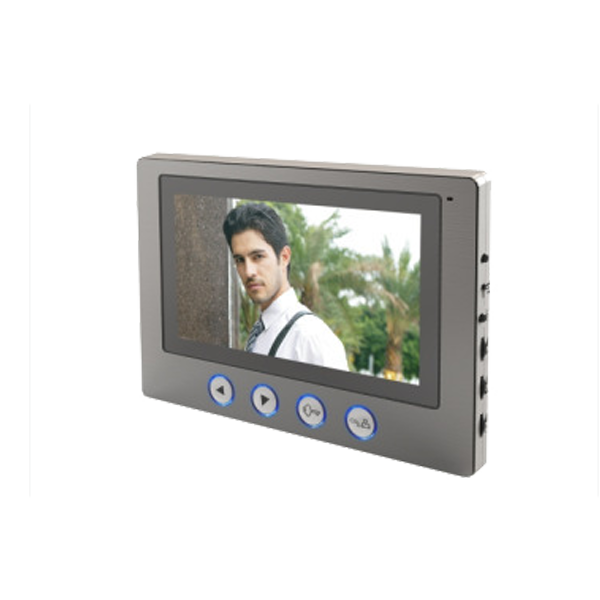

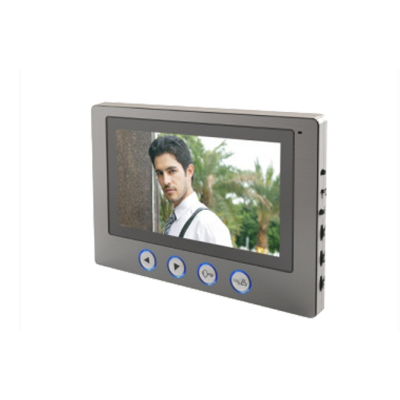

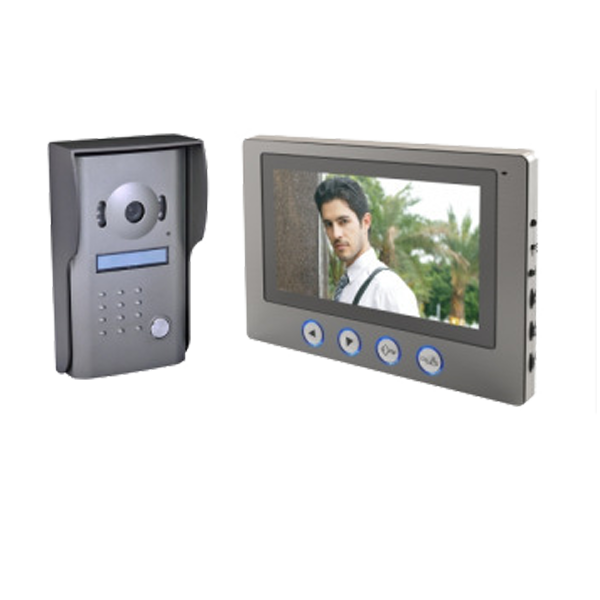

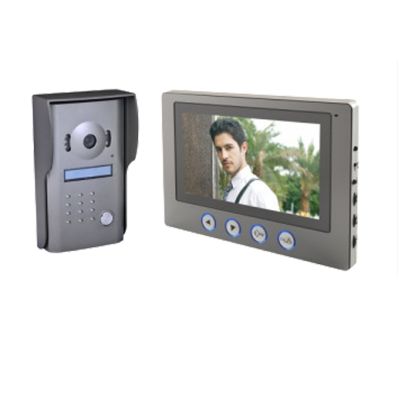

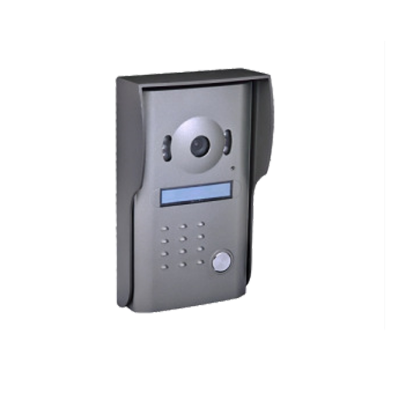

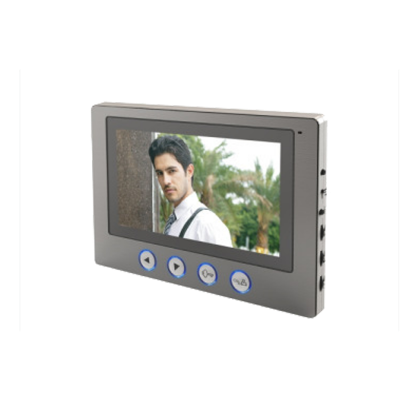

RL-A7H Video Door Phone Monitor with Photo-taking Function

• Screen Size: 7”
• Resolution: 480 (H) x 3RGB x 234 (V)
• Effective Area: 154.08mm (H) x 86.58mm (V)
• Pixel Size: 0.107 (H) x 0.370 (V)
• Input Voltage: AC100-240V 50Hz/60Hz
• Output Voltage Current: DC 12V 1100mA
• Monitoring time-lapse: 40s±10%
• Talking time-lapse: 120s±10%
• Effective Distance: 50m (4 x 0.5mm2)
• Consumption: Standby state<2W
• Working Temperature: -10℃~+40℃
• Relative Humidity: 10%~90 %( RH)
