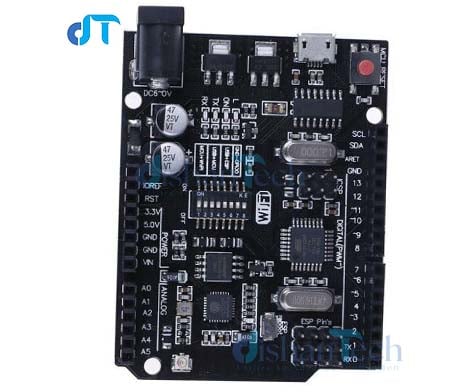

UNO WiFi R3 ATmega328P ESP8266 Module
WeMos UNO WiFi R3 ATmega328P ESP8266 Module 32Mb Memory USB-TTL CH340G Compatible For Arduino Uno NodeMCU ESP8266
Description: WeMos UNO WiFi R3 ATmega328P ESP8266 Module 32Mb Memory USB-TTL CH340G Compatible For Arduino Uno NodeMCU ESP8266
The perfect low cost IoT board with onboard ESP8266 + 8Mb flash, Chip antenna and direct interface with ATmega328p. Programmable (both Arduino + ESP8266) using CH340G based USB to TTL interface which can also be used as a generic com port. Ideal solution for Network connected embedded computing applications..

Specifications:
Full integration on one board: Uno R3 ATmega 328 and WiFi ESP8266 with memory 32Mb (MegaByte). All of the modules can work together or each separately. And everyone has their own pinout headers.
The convenient solution for the development of new projects requiring Uno and WiFi.
Via USB you can update sketches and firmvare for ATmega328 and for ESP8266. For this on board have the USB-serial converter CH340G.
Use this board is very simple.
The board has DIP-switch, to connect the modules.
Driver link:https://wiki.wemos.cc/downloads
For example, to: USB and ATmega328, USB and ESP8266, ATmega328 and ESP8266.
Model Number: UNO+WiFi-R3-AT328-ESP8266-32MB-CH340G
Type: Logic ICs
Condition: New
MCU: ATmega328
WiFi MCU: ESP8266
USB-converter: CH340G
PinOut Uno: Uno R3
UNO+WiFi R3 ATmega328P+ESP8266 (32Mb memory), USB-TTL CH340G. Compatible for Arduino Uno,
NodeMCU, WeMos ESP8266
Package Include:
1 x UNO WiFi R3 ATmega328P ESP8266 Module
