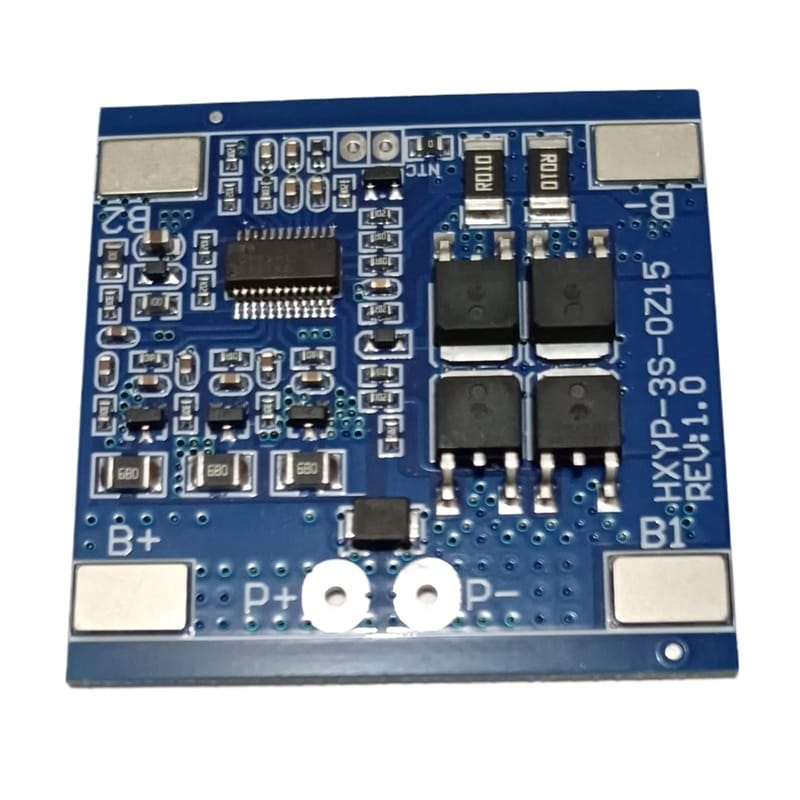

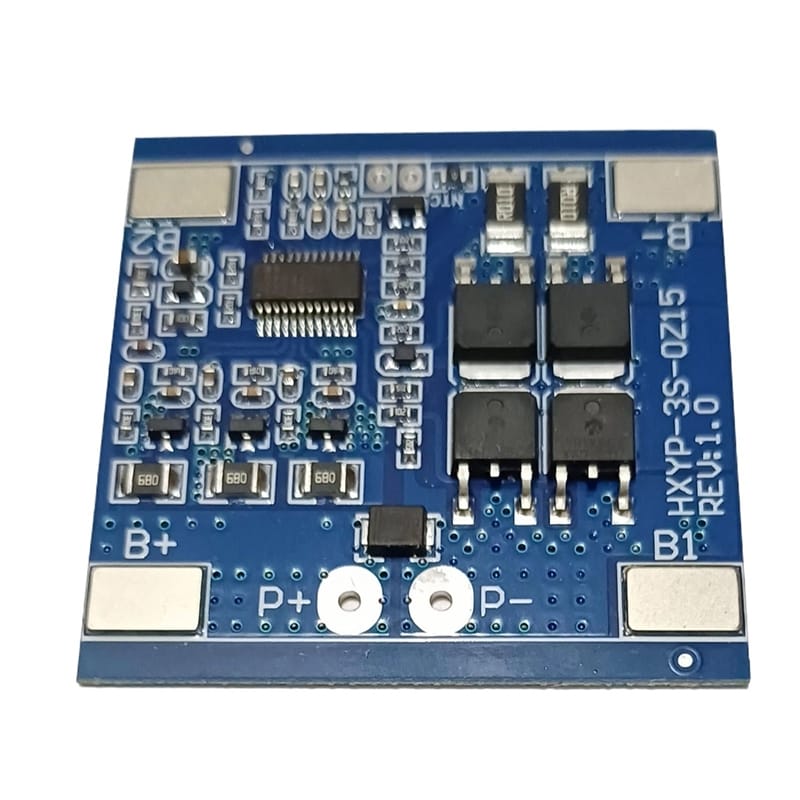

TZT 3S 12V 15A BMS 18650 Lithium BattAery Protection Board 11.1V 12.6V Anti-Overcharge With Balance And Temperature Control

Basic Parameters

• Model: HXY-P-3S-QZ15
• Size: 48 × 48 × 3.6 mm
• Continuous Discharge Current: 15A
• Discharge Protection Current Limit: 20A
• Charging Voltage: 12.6V
• Continuous Charging Current: 10A
• Charging Protection Current Limit: None, limited by MOS (Do not exceed continuous current)
• Overcharge Voltage: Single cell 4.225V ± 0.025V
• Overcharge Release Voltage: Single cell 4.175V ± 0.03V
• Overdischarge Voltage: Single cell 2.7V ± 0.05V
• Overdischarge Release Voltage: Single cell 3.0V ± 0.08V
• Temperature Protection: -10°C to 70°C
• Balancing Current: 56mA
• Applicable Battery Type: Nominal 3.7V ternary lithium battery cells
