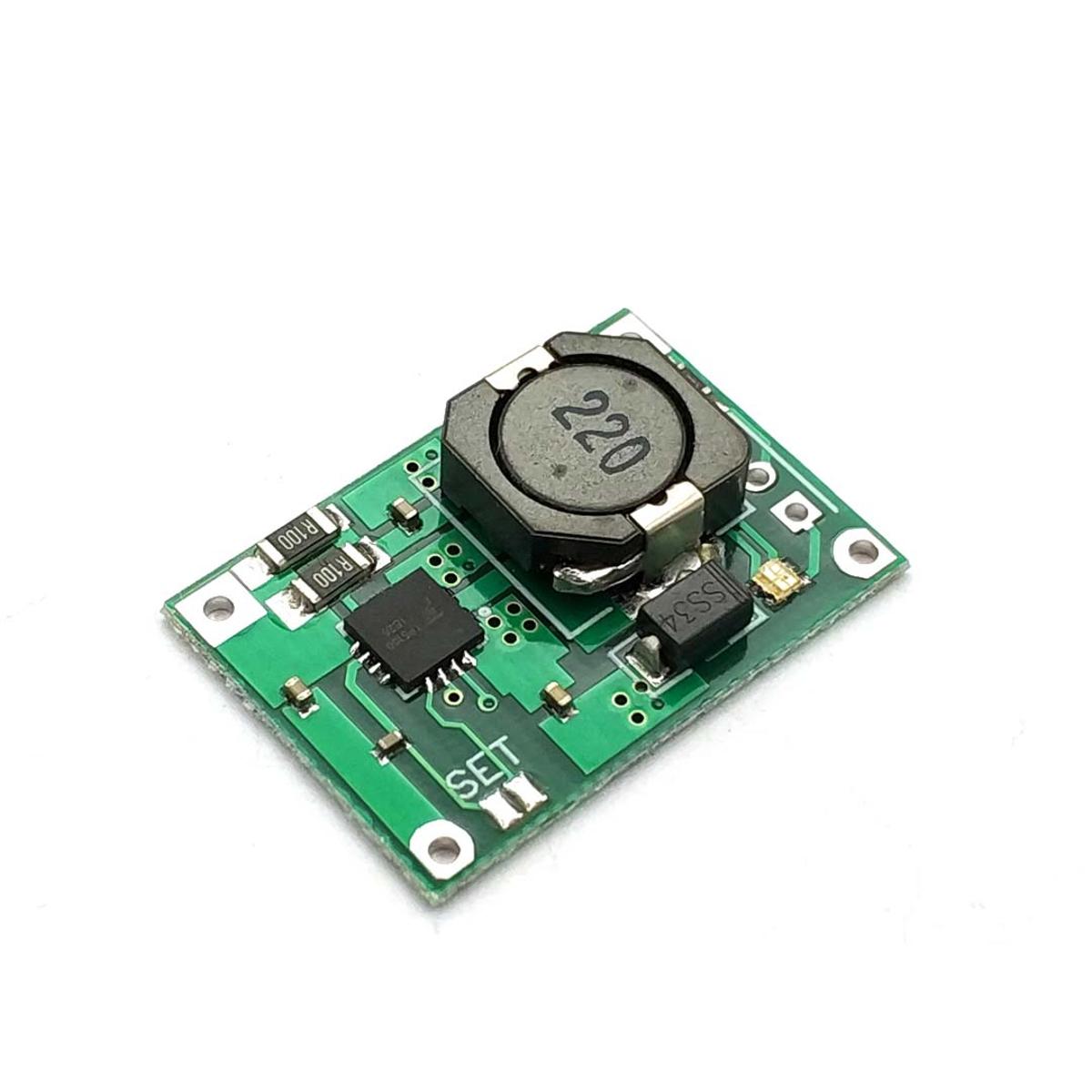

TP5100 is a double switch buck 8.4V, single cell 4. 2V lithium battery charge management chip. Its ultra-compact QFN16 package and simple external circuit, making TP5100 ideal for portable equipment so large current charging management applications.Meanwhile, TP5100 built-in input overcurrent, undervoltage protection, over temperature protection, short circuit protection, battery temperature monitoring, reverse battery protection.

TP5100 have 5V-18V wide input voltage, dual battery trickle charge into pre-charge, constant current, constant voltage three phase, pre-charge current trickle charge current through an external resistor adjustment, the maximum charge current up to 2A. TP5100 with a frequency of 400kHz switching mode makes it possible to use a smaller outer Suo device and the large current charging still maintain a smaller amount of heat.

• Double 8.4v / 4.2v lithium rechargeable single
• Programmable charge current. 0. 1A-2A
• Programmable steady precharge current 10% -100%.
• Wide operating voltage, maximum reach I8V
• Red and green LED charge status indicator
• Chip temperature protection, overcurrent protection, undervoltage protection
• Battery temperature protection, reverse battery shutdown, short circuit protection
• Switching frequency 400Khz, usable inductance 20uH and more
• PWR_ON Power battery for switching control
•  Static input supply voltage (VlN): 20V
• BAI: -8.4V-20V
• BAT Short-Circuit Duration: Continuous
• Operating environment Temperature range: -40 ° -85 °
• Storage temperature range: -65 ° - 125 °
