Description

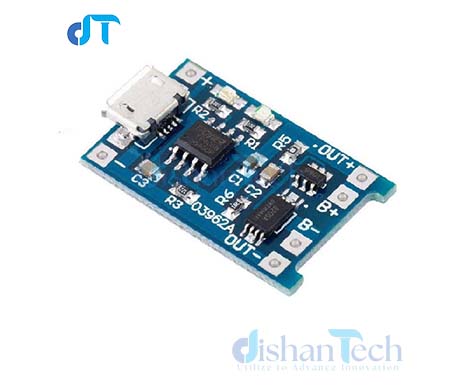

TP4056 Lithium-ion Battery Charging Module Micro USB

• Charging Input Interface: Micro USB
• Charging Mode: Linear Charging
• Charging Current: Up to 1000mA (Adjustable)
• Charge Precision: 1.5%
• Input Voltage: 4.5V-5.5V
• Full Charge Voltage: 4.2V
• Over Discharge Protection Voltage: 2.5V
• Over Current Protection: 3A
• Working temperature: -10 °C to +85 °C
• Dimension: 28 x 17.4 x 3 (LxWxH)mm
• Constant-Current/Constant-Voltage Charging
• Charges Single Cell Li-Ion Batteries Directly from USB Port
• Two Charge Status Output LED
• Soft-Start Limits Inrush Current
