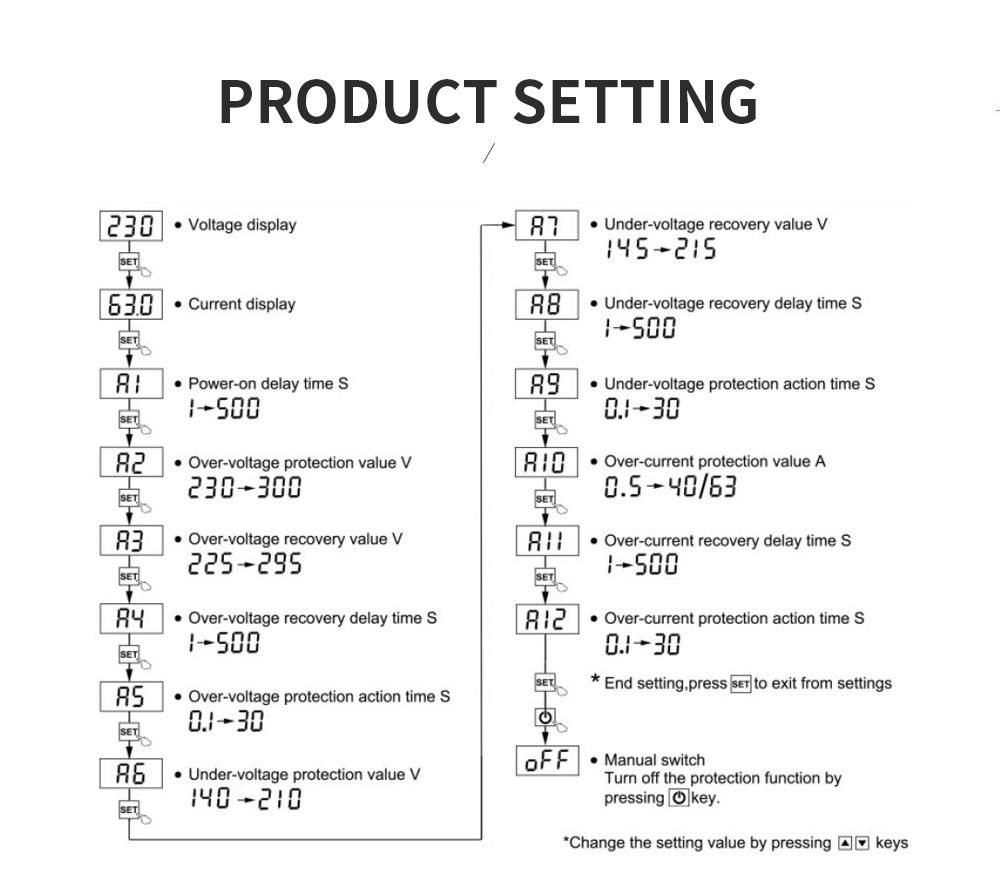

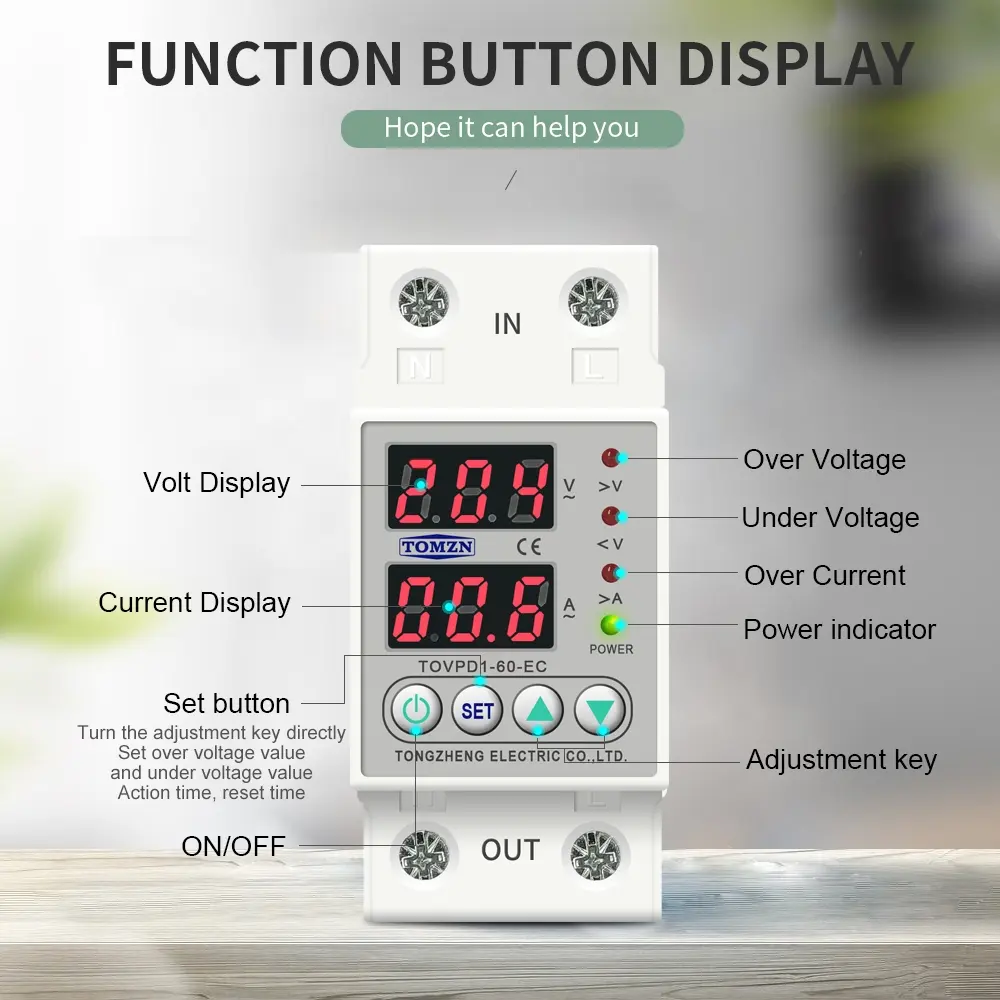

Functions:

1.Over-voltage protection

2.Under-voltage protection

3.Over-current protection

4. Automatic recovery

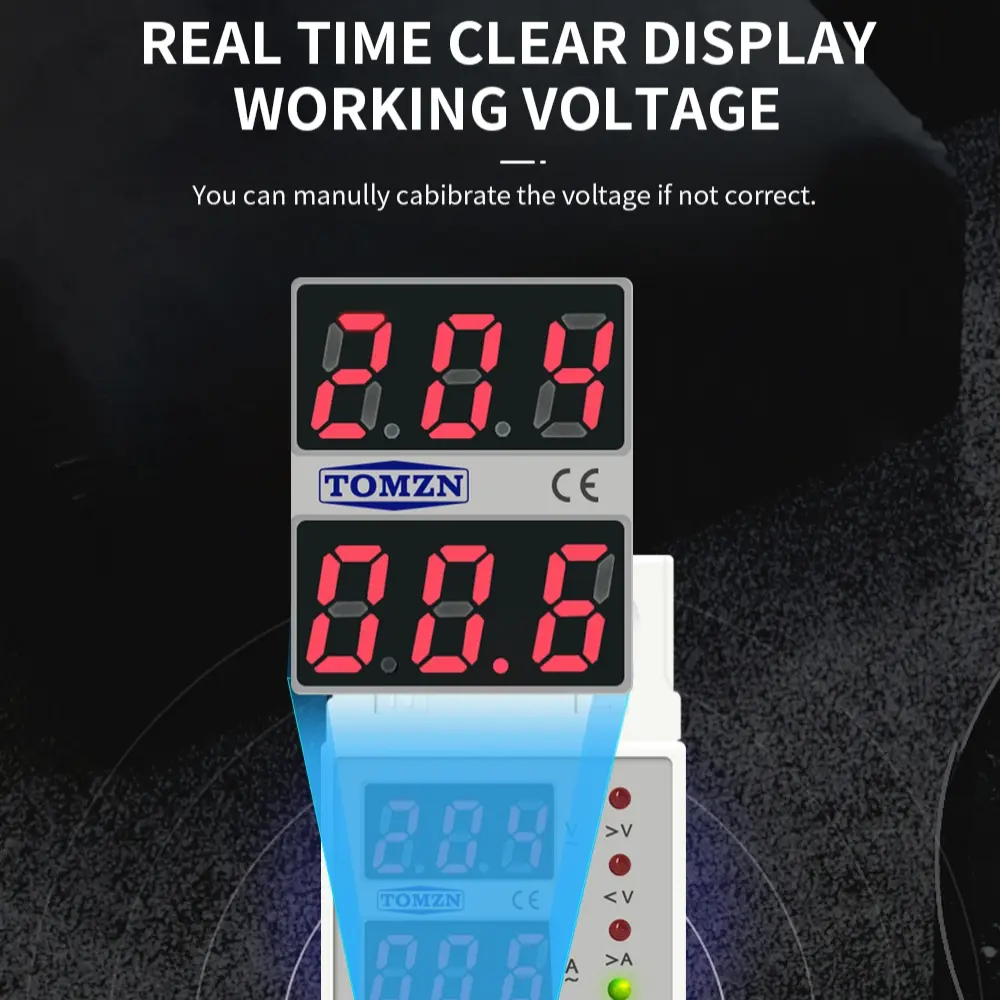

5. Voltage display (voltage measurement)

6. Current display (current measurement)

7. Voltage calibration: Voltage +-10% adjustable. A13

8. Restore factory settings: press the down button for more than 12s

9.Fault inquiry: Press the UP button from more than 12S

Product Parameters:

1. Model number: TOVPD1-60-EC

2.Power supply: 230VAC 50/60Hz

3.Max. Loading power:1~40A Adjustable (default:40A)

1~63A Adjustable (default:63A)

4.Over-voltage protection value

range:230V~300~OFF(default:270V)

Over-voltage recovery voltage

range:225V-295V (default:250V)

Over-voltage protection action time: 0.1s~30s (default value:0.5s)

Over-voltage recovery delay time:1s~500s (default:30s)

5.Under-voltage protection value range:140V-210V -OFF(default:170V)

Under-voltage recovery voltage range: 145V-215V (default:190V)

Under-voltage protection action time: 0.1s~30s (default:0.5s)

Under-voltage recovery delay time: 1s~500s(default:30s)

6.Over-current adjustment range:1-40A (default:20A)1-/ (default:40A)

Over-current action range:0.1~30 second (default:0.5s)

Over-currentrecovery delay time:1s~500s(default:30s)

7.Power-on delay time: 1s~500s (default:10s)

9.Power consumption: <2W

10. Electric machinery life: 100,000 times

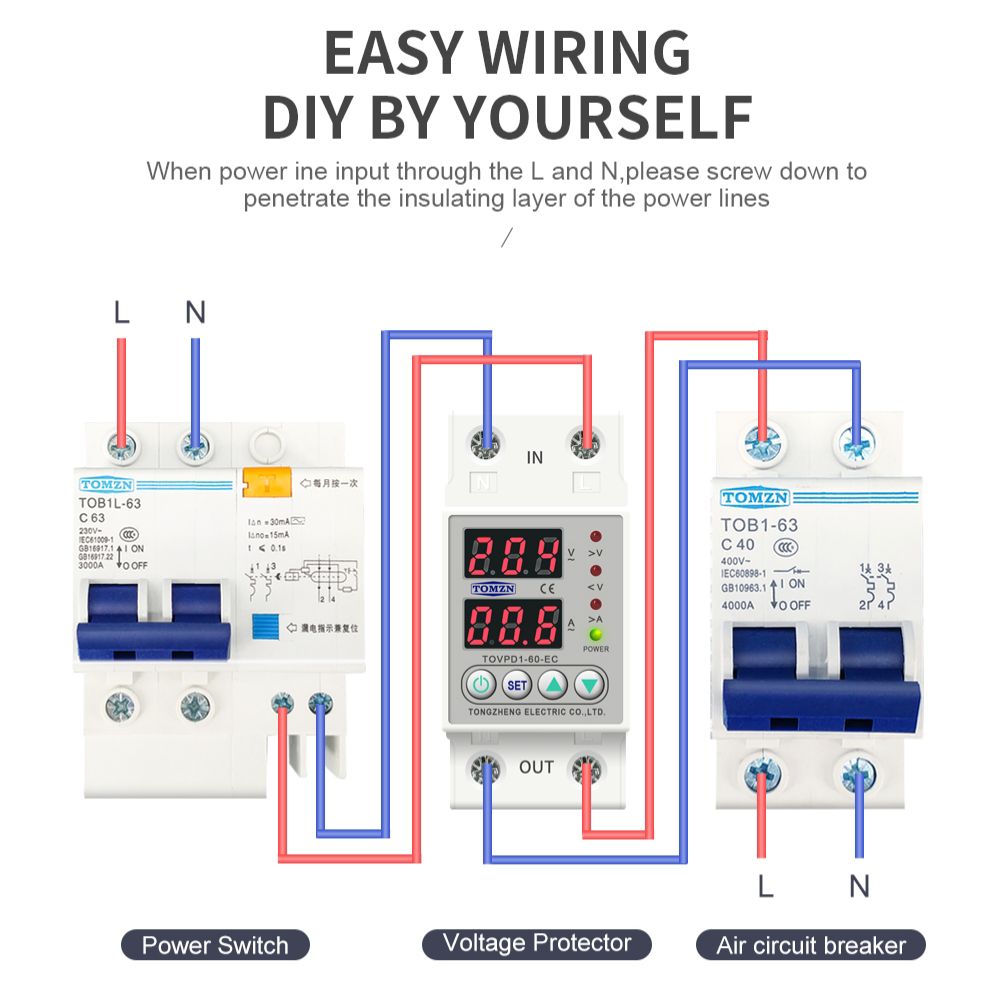

11.Installation:35mm DIN rail

• • Automatic recovery

  • Over-current protection

  • Under-voltage protection

• Over-voltage protection

  5.Voltage display(voltage measurement)

  6. Current display (current measurement)

  7. Voltage calibration A13

  Product Parameters:

  1.Model number:TOVPD1-60-EC

  2.Power supply:230VAC 50/60Hz

  3.Max.Loading power:1~40A  Adjustable(default:40A)

                                      1~63A  Adjustable(default:63A)

  4.Over-voltage protection value range:230V~300V (default:270V)

     Over-voltage recovery voltage range:225V–295V(default:250V)

     Over-voltage protection action time:0.1s~30s(default value:0.5s)

      Over-voltage r ecovery delay time:1s~500s(default:30s)

  5.Under-voltage protection value range:140V–210V (default:170V)

      Under-voltage recovery voltage range:145V–215V (default:190V)

     Under-voltage protection action time:0.1s~30s(default:0.5s)

     Under-voltage  r ecovery delay time:1s~500s(default:30s)

  6.Over-current adjustment range:1-40A (default:20A) 1-63A  (default:40A)

     Over-current action range:0.1~30 second (default:0.5s)

     Over-current   r ecovery delay time:1s~500s(default:30s)

  7.Power-on delay time:1s~500s(default:10s)

  9.Power consumption : <2W

  10.Electric machinery life : 100,000 times

  11.Installation:35mm DIN rail
