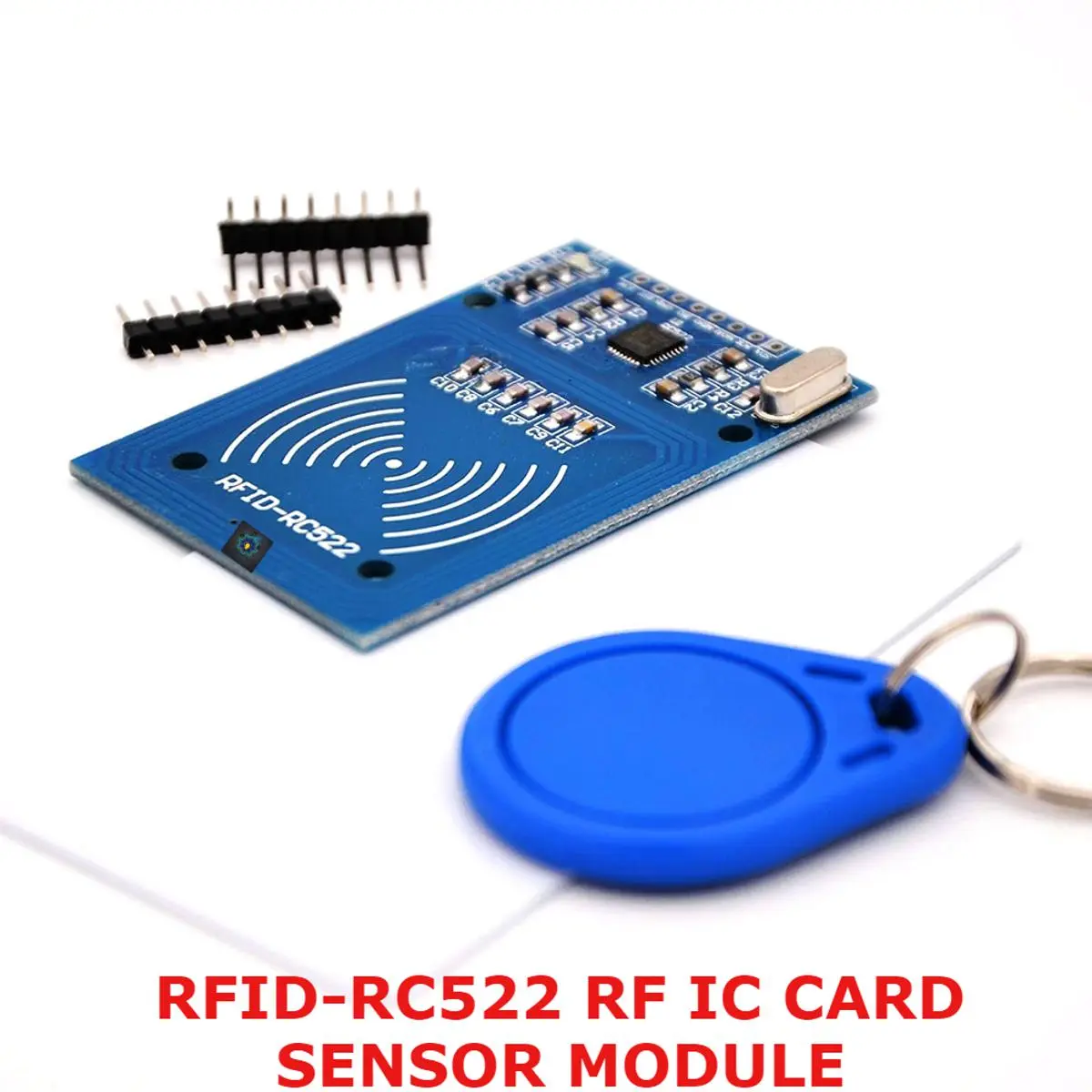

RFID-RC522 RF IC CARD SENSOR MODULE (Silver)

Category: Electronics & Appliances
SKU: PONS841715
Seller: Ponno shopping
Tk 211
Tk 350
Tk 350
40% OFF
0 review(s)

RFID-RC522 RF IC CARD SENSOR MODULE

  • Electrical parameters [Introduction] Current :13-26mA / DC 3.3V Idle Current :10-13mA / DC 3.3V Sleep current: <80uA Peak current: <30mA Operating Frequency: 13.56MHz Supported card types: mifare1 S50, mifare1 S70, mifare UltraLight, mifare Pro, mifare Desfire Product Physical Characteristics: Dimensions: 40mm × 60mm Environmental Operating temperature: -20-80 degrees Celsius Environment Storage temperature: -40-85 degrees Celsius Relative Humidity: 5% -95% Module Interface SPI Parameters Data Transfer Rate: Max. 10Mbit / s

Call For Order : 09613-800800
  • Electrical parameters [Introduction] Current :13-26mA / DC 3.3V Idle Current :10-13mA / DC 3.3V Sleep current: <80uA Peak current: <30mA Operating Frequency: 13.56MHz Supported card types: mifare1 S50, mifare1 S70, mifare UltraLight, mifare Pro, mifare Desfire Product Physical Characteristics: Dimensions: 40mm × 60mm Environmental Operating temperature: -20-80 degrees Celsius Environment Storage temperature: -40-85 degrees Celsius Relative Humidity: 5% -95% Module Interface SPI Parameters Data Transfer Rate: Max. 10Mbit / s





RFID-RC522 RF IC CARD SENSOR MODULE

  • Electrical parameters [Introduction] Current :13-26mA / DC 3.3V Idle Current :10-13mA / DC 3.3V Sleep current: <80uA Peak current: <30mA Operating Frequency: 13.56MHz Supported card types: mifare1 S50, mifare1 S70, mifare UltraLight, mifare Pro, mifare Desfire Product Physical Characteristics: Dimensions: 40mm × 60mm Environmental Operating temperature: -20-80 degrees Celsius Environment Storage temperature: -40-85 degrees Celsius Relative Humidity: 5% -95% Module Interface SPI Parameters Data Transfer Rate: Max. 10Mbit / s
