Specifications:

Brand: Power Guard

Mode: 10KVA Online Long Backup UPS

Efficiency: To AC Mode: 93%; To Battery Mode: 87%

Nominal Voltage: 200/208/220/230/240VAC

Input Voltage Range: 110-280 VAC (Based on Load at 50%)

Frequency Range: 46Hz-54Hz / 56Hz-64Hz

Phase: Single phase with ground

Power Factor: R0.99 @ nominal voltage (100% load)

Battery Type: 12 V

Numbers: 16

Typical Recharge Time: 6 hours recovery to 90% capacity

Charging Current (max.): 1.0A/2.0A/4.0 A/6.0A

DC Voltage: 192 VDC

Output Voltage:200/208/220/230/240VAC

Voltage Regulation: ±1%

Frequency Range (Synchronized Range): 46 ~ 54 Hz or 56 ~ 64 Hz

Frequency Range (Batt. Mode): 50 Hz or 60 Hz ±0.1%

Current Crest Ratio: 3:01

Battery Mode: Sounding every 4 seconds

Low Battery: Sounding every second

Overload: Sounding twice every second

Fault: Continuously sounding

Dimension(mm): 290x642x600

Warranty: 01 Year

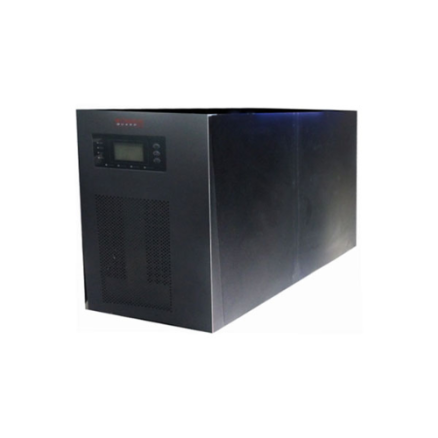

Power Guard 10KVA Online Long Backup UPS

• 10000VA/ 10000W Capacity
• 93% AC Mode
• Nominal Voltage: 200/208/220/230/240VAC
• Input Voltage Range: 110-280 VAC (Based on Load at 50%)
• Power Factor: R0.99
• 01 Year Warranty

Warranty: 1 Year warranty.
Note: Product delivery duration may vary due to product availability in stock.
