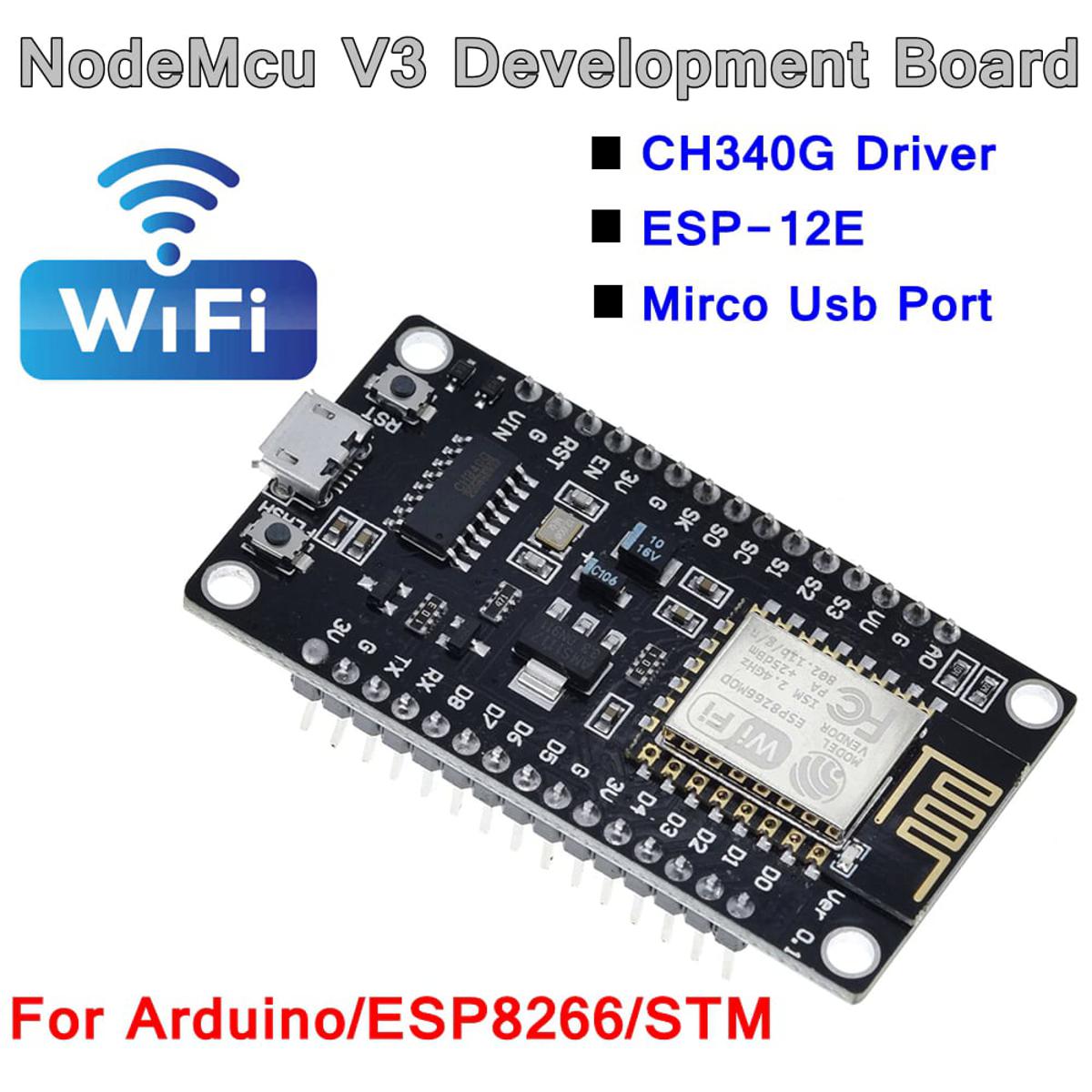

New Wireless module CH340 NodeMcu WIFI Internet of Things development board based ESP8266

Introduction

The NodeMcu is an open-source firmware and development kit that helps you to

Prototype your IOT product within a few Lua script lines.

Formore details, please visitwww.nodemcu.com, andhttps://github.com/nodemcu/nodemcu-firmware/wiki/nodemcu_api_en

Features

Open-source

Interactive

Programmable

Low cost

Simple

Smart

WI-FI enabled

Ard--uino-like hardware IO

Advanced API for hardware IO, which can dramatically reduce the redundant work for configuring and manipulating hardware.

Code like ard--uino, but interactively in Lua script.

Nodejs style network API

Event-driven API for network applicaitons, which faciliates developers writing code running on a 5mm*5mm sized MCU in Nodejs style.

Greatly speed up your IOT application developing process.

Lowest cost WI-FI

Less than $2 WI-FI MCU ESP8266 integrated and esay to prototyping development kit.

We provide the best platform for IOT application development at the lowest cost.

Specification:

The Development Kit based on ESP8266, integates GPIO, PWM, IIC, 1-Wire and ADC all in one board.

Power your developement in the fastest way combinating with NodeMCU Firmware!

USB-TTL included, plug&play

10 GPIO, every GPIO can be PWM, I2C, 1-wire

FCC CERTIFIED WI-FI module(Coming soon)

PCB antenna
