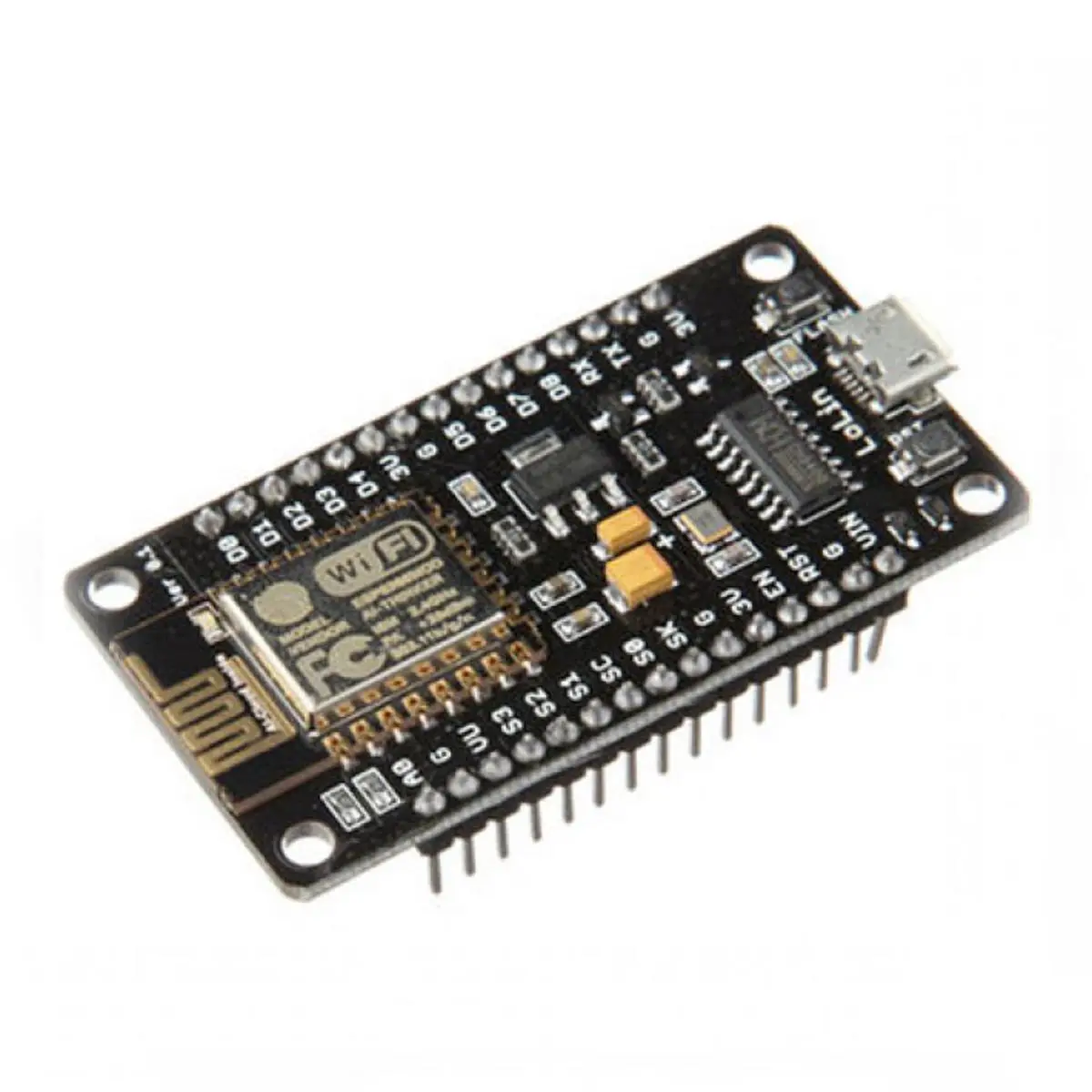

Picture of NODEMCU V3 ESP8266 WIFI MODULE DEVELOPMENT BOARD WITH CH340 (Silver)
Picture of NODEMCU V3 ESP8266 WIFI MODULE DEVELOPMENT BOARD WITH CH340 (Silver)

NODEMCU V3 ESP8266 WIFI MODULE DEVELOPMENT BOARD WITH CH340 (Silver)

Category: Electrical Accessories
SKU: PONS841844
Seller: Ponno shopping
Tk 280
Tk 550
Tk 550
49% OFF
0 review(s)

NODEMCU V3 ESP8266 WIFI MODULE DEVELOPMENT BOARD WITH CH340

Call For Order : 09613-800800
  • Open-source platform
  • Interactive & Programmable
  • WiFi enabled
  • Arduino-like Hardware IO
  • Nodejs style network API
  • ESP8266, a low cost WiFi module on-board (FCC Certified)
  • On-board USB-TTL converter, plug & play
  • Headers – 2.54mm 15-pin header with access to GPIOs, SPI, UART, ADC, and power pins
  • Input Voltage: 7 – 12V
  • Operating Voltage: 3.3V
  • CPU: 32-bit RISC Tensilica Xtensa LX106 running at 80 MHz
  • 64 KB of instruction RAM, 96 KB of data RAM (80x Arduino UNO!)
  • 512 KB of EEPROM (512x Arduino UNO!)
  • External QSPI flash – 512 KB to 4 MB* (up to 16 MB is supported)
  • IEEE 802.11 b/g/n Wi-FiIntegrated TR switch, balun, LNA, power amplifier and matching network
  • WEP or WPA/WPA2 authentication, or open networks
  • Digital I/O Pins (DIO): 16
  • Analog Input Pins (ADC): 1
  • UARTs: 1 on dedicated pins, plus a transmit-only UART can be enabled on GPIO2
  • SPIs: 1
  • I2Cs: 1
  • Flash Memory: 4 MB
  • SRAM: 64 KB
  • Clock Speed: 80 Mhz
  • 80 Mhz clock (5x arduino UNO or mega!)





NODEMCU V3 ESP8266 WIFI MODULE DEVELOPMENT BOARD WITH CH340
