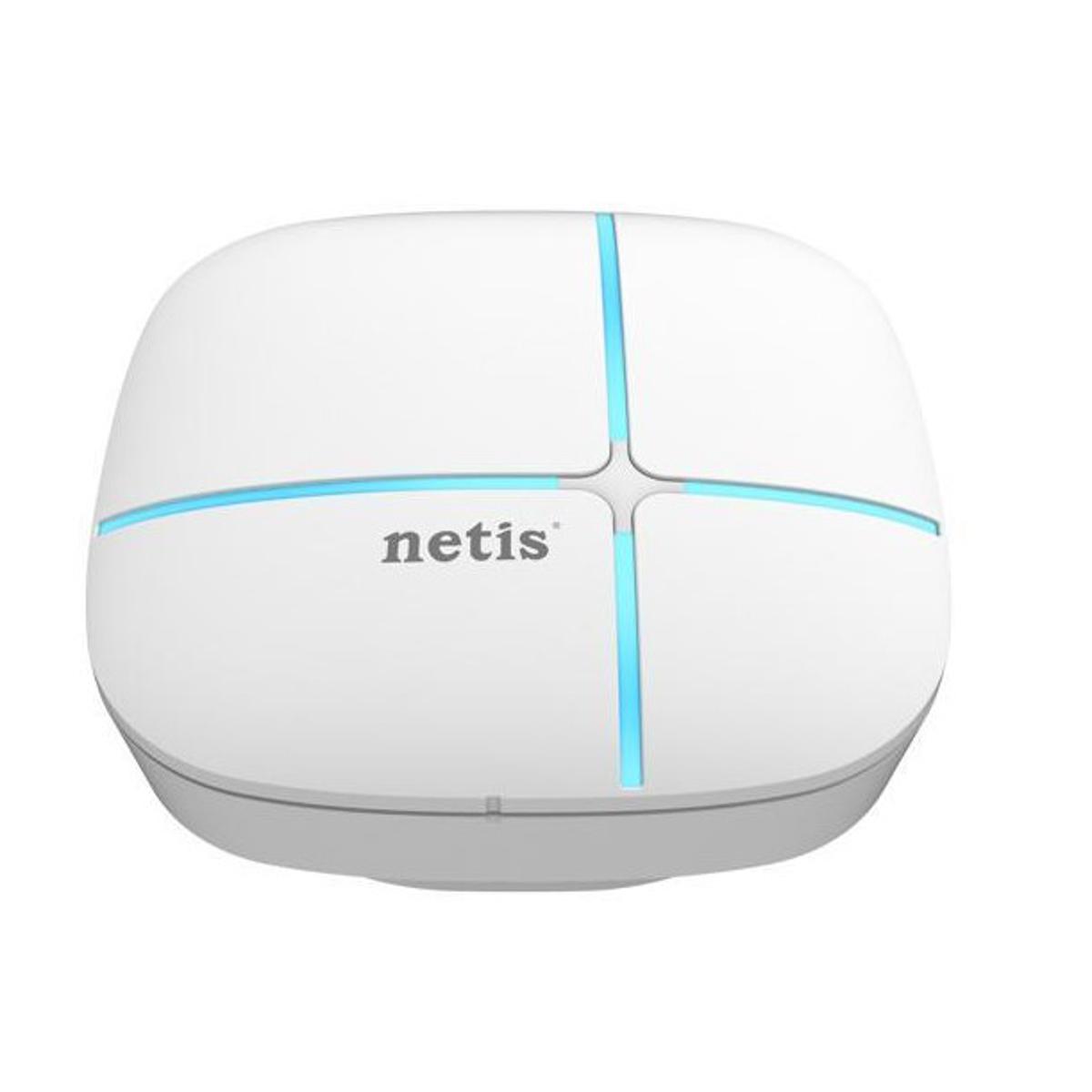

Netis WF2520 300Mbps Wireless N High Power Ceiling-Mounted Access Point

Wireless

• Standards
• IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
• Signal Rate
• Up to 300Mbps
• Frequency Range
• 2.4-2.4835GHz
• Transmit Power
• <20dBm (For countries using CE Standards)
• <30dBm (For countries using FCC Standards)
• Data Transfer Rates
• 802.11n:
• 40MHz(300Mbps, 270Mbps, 240Mbps, 180Mbps, 120Mbps, 90Mbps, 60Mbps, 30Mbps)
• 20MHz  (144Mbps, 130Mbps, 115Mbps, 86Mbps, 57Mbps, 43Mbps, 28Mbps, 14Mbps) (Auto-Sense)
• 801.11g:
• (54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 11Mbps, 9Mbps, 6Mbps)
• 802.11b:
• (11Mbps,9Mbps, 6Mbps, 5.5Mbps, 2Mbps, 1Mbps)

Wireless Modes

• Access Point, Client, WDS, AP+WDS, Client+Repeater
• Wireless Security
• WEP (64/128-bit), WPA-PSK, WPA2-PSK,
• WPA-PSK/WPA2-PSK Mixed Mode
• SSID Broadcast Enable/Disable
• MAC Address Filtering

Hardware

• Standards
• IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX,
• IEEE 802.3af, IEEE802.3at
• Interface
• WAN/PoE: 10/100Mbps Auto MDI/MDIX RJ45 LAN port,
• 802.3af&at PoE Supported
• LAN: 10/100Mbps Auto MDI/MDIX RJ45 LAN port,
• LED Indicators
• System, Wi-Fi
• Buttons
• RESET
• Antenna
• 2* Internal Antenna

Power Supply

• 802.3af&at PoE

Software

• Operation Modes
• AP, AP Router, WISP
• WAN Connection Types
• DHCP, Static IP,PPPoE, Russia PPPoE,
• L2TP/Russia L2TP, PPTP/Russia PPTP
• Port Forwarding
• Virtual Servers, UPnP, DMZ
• QoS

Bandwidth Control

• Access Control
• MAC Filtering
• Others
• Dynamic DNS, Firmware Upgrade, Backup & Restore
• Others
• Certification
• FCC, CE
• Environment
• Operating Temperature: 0℃~40℃
• Storage Temperature: -40℃~70℃
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing

Package

• 1* WF2520
• 1* Mounting Kit
• 1* Ethernet Cable
• 1* Quick Installation Guide

Warranty: 1 Year warranty.
Note: Product delivery duration may vary due to product availability in stock.
