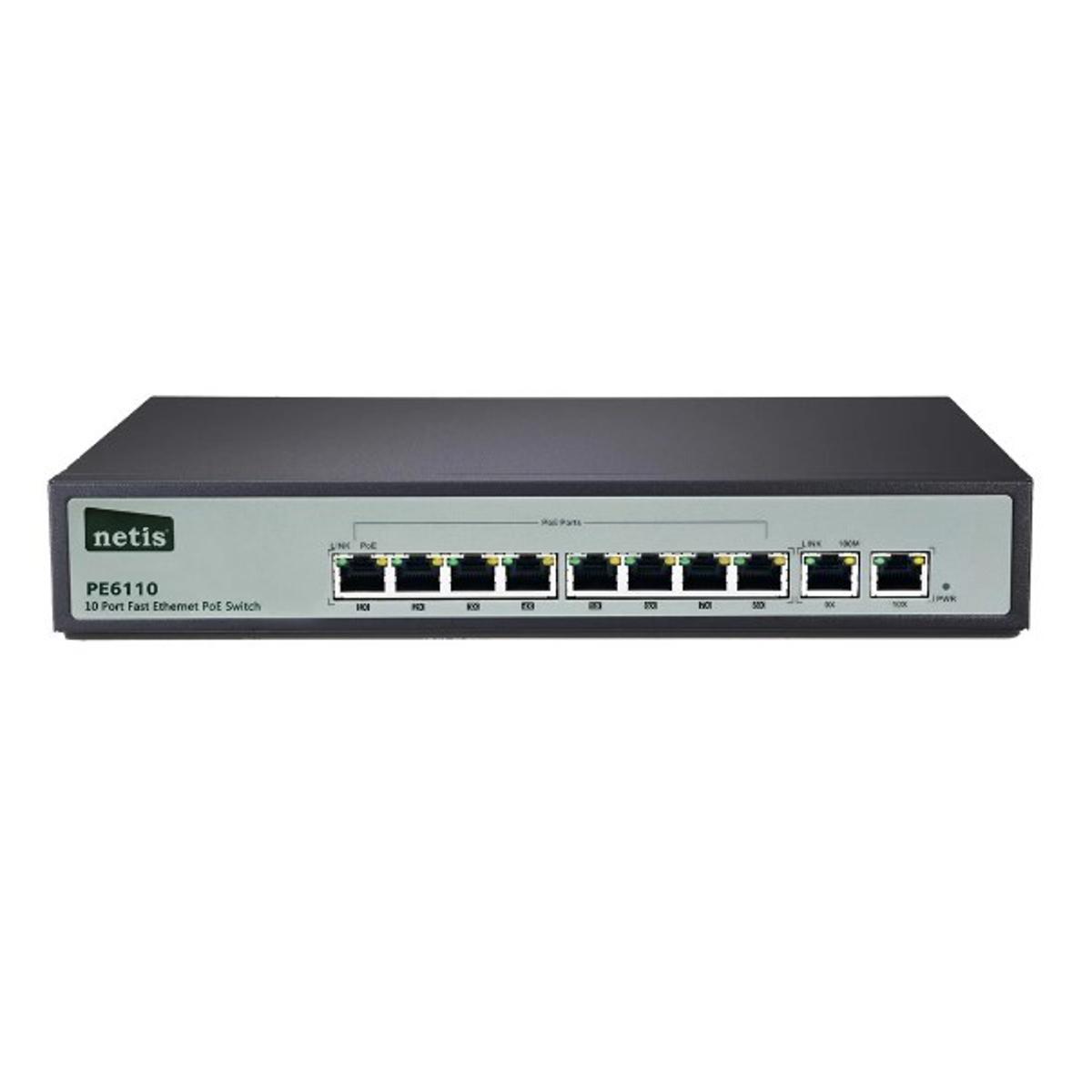

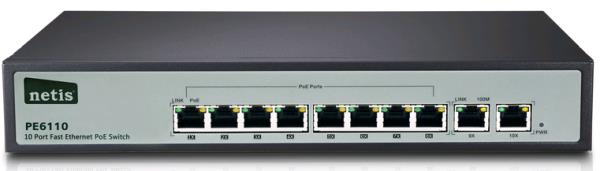

Netis PE6110 10 Port Fast Ethernet PoE Switch

Hardware

• Interface
• 10 10/100Mbps RJ45 port, with8 PoE function

LED

• PWR, 1-8 PoE, 1-10 100M

Power Supply

• 100-240 V AC/50-60Hz
• PoE Power
• 48V/2.8A

Dimensions (L x W x H )

• 280 x 173 x 43mm
• Switching Features

Standard

• IEEE 802.3u 100BASE –TX, IEEE 802.3 10BASE –T, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x Flow Control

Access Method

• CSMA/CD

Transmission Method

• Store and Forward
• Switching Fabric Capacity
• 2.0 Gbps
• MAC Address Table
• 1K, auto-learning & auto-aging
• Flow Control
• IEEE 802.3x Flow Control, Full-Duplex mode
• Back-Pressure Flow Control, Half-Duplex mode
• PoE
• 30 Watts (Max. each port)
• 140 Watts (Max. all ports)
• Others
• Certification
• FCC, CE

Environment

• Operating Temperature: 0℃~40℃
• Storage Temperature: -40℃~70℃
• Operating Humidity: 10%~90%RH, non-condensing
• Storage Humidity: 5%~90%RH, non-condensing

Package

• 1*PE6110
• 1*Quick Installation Guide
• 2*Brackets
• 1*Power Cord
