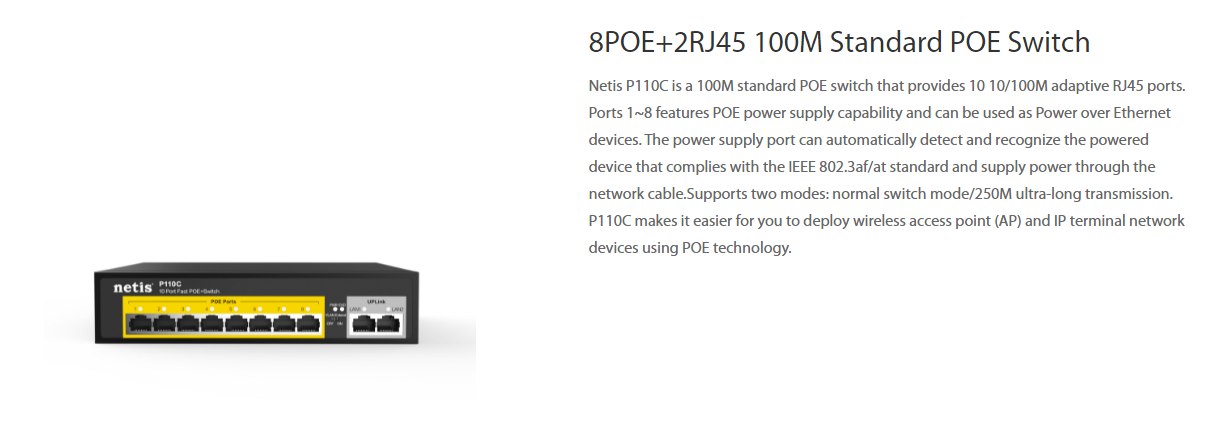

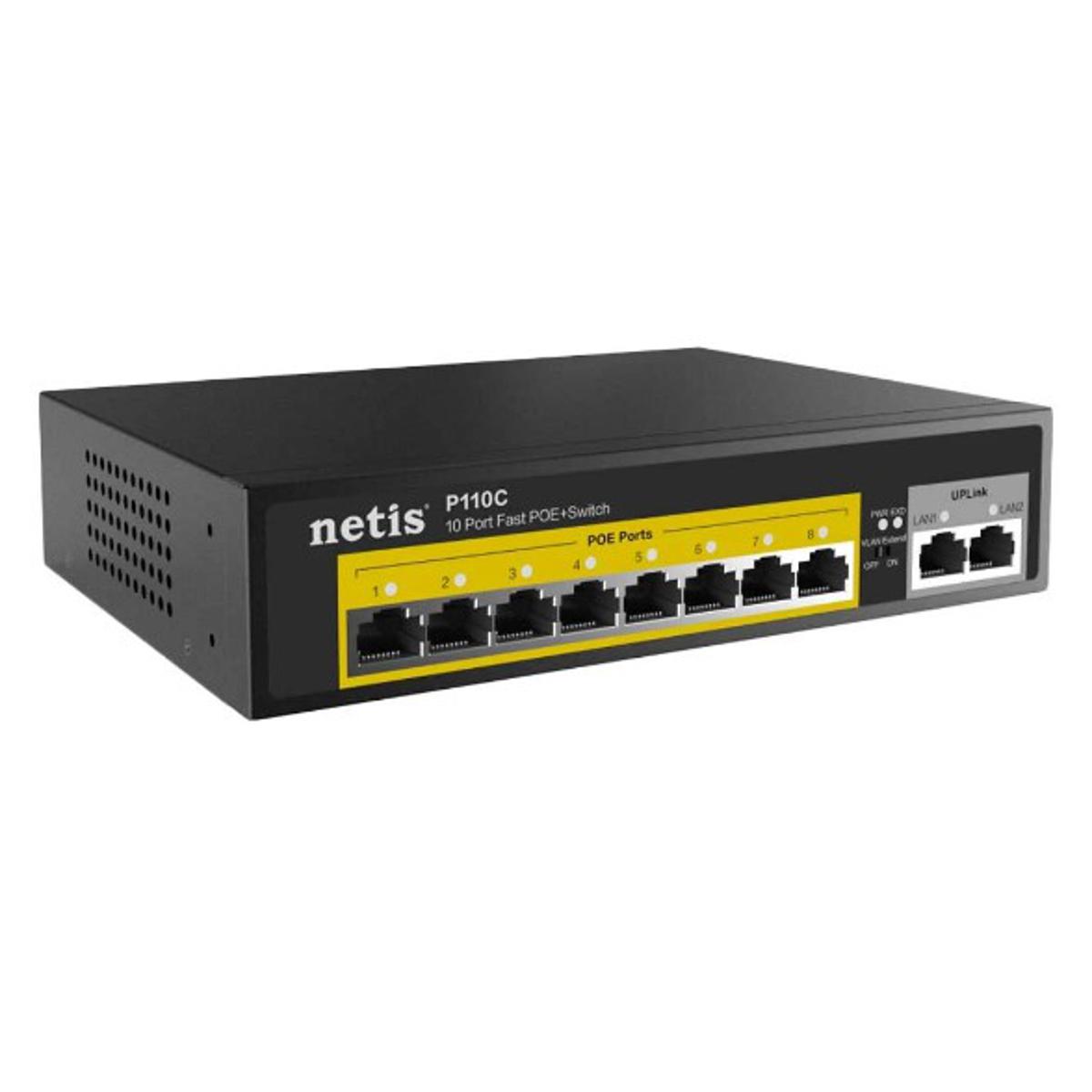

Netis P110C 10-Port (8PoE+2RJ45) Standard POE Switch

Hardware

• Interface
• 8*10/100Mbps POE ports（Data/Power)
•  2*10/100M uplink RJ45 ports (Data)

 Basic function

•  Follow IEEE 802.3 Ethernet and IEEE802.3u Fast Ethernet Protocol
•  Supports POE IEEE 802. 3af/at compliant Powered Device (PD)
•  Store-and-forward switching scheme
•  Support IEEE802.3X full duplex and Backpressure half duplex

 MAC address auto-learning & auto-aging

•  Standards
•  IEEE 802.3 10BASE-T Ethernet
•  IEEE 802.3i 10BASE-T Ethernet
•  IEEE 802.3u 100BASE-TX Fast Ethernet
•  IEEE 802.3af/at, Power over Ethernet
•  IEEE 802.3x Flow Control
•  Mode
•  Normal switch mode/Extend mode

 Data Transfer Rate

• Etherent:10Mbps(Half-duplex);20Mbps(Full-duplex)
• Fast Entherent:100Mbps(Half-duplex);200Mbps(Full-duplex)
•  Store & Forwarding
• Yes
•  Switching Capacity
• 2G
•  MAC Address
•   Table Size
• 2K
•  Jumbo Frame
•  2048 byte

 Environment

•  Operation Temperature：0℃～40℃
•  Storage Temperature：-40℃～70℃
•  Operation Humidity：10%～90% RH Non-condensing
•  Storage Humidity：5%～90% RH Non-condensing

 Power Input POE

•  Standards
•  Single port maximum power 30W,
•  Whole switch maximum power 100W
•  Support over-current,over-voltage and short-circuit protection
•  Support Soft Start of High  Power PD
•  Support sequential boot-up
•  Power Supply Pin:12+/36-
•  AC 110~240V 50/60HZ

 Cabling type

•  100Base-TX: Cat 5e or better UTP/STP(≤100m)
•  10Base-TX: Cat 5e or better UTP/STP(≤250m)

Dimensions

•  190mm*140mm*43mm
