Specifications
Brand: MSI
Model: B560M PRO-E
CPU: 10th & 11th Gen Intel Core, Pentium Gold and Celeron Processors
CPU Socket: LGA 1200
Chipset: Intel B560 Chipset
Graphics Interface: 1x PCIe 4.0 x16 slot
Display Interface: Support 4K@60Hz as specified in HDMI 2.0b, VGA – Requires Processor Graphics
Memory Support: 2 DIMMs, Dual Channel DDR4-4800MHz(OC)
Expansion Slots: 1x PCIe 3.0 x1 slot
Storage: 1x M.2 Gen3 x4 slot; 4x SATA 6Gb/s ports
USB Ports: 4x USB 3.2 Gen 1 5Gbps(4 Type-A); 6x USB 2.0
LAN: Intel I219-V 1G LAN
Audio: 8-Channel(7.1) HD Audio with Audio Boost
Warranty: 3 Years

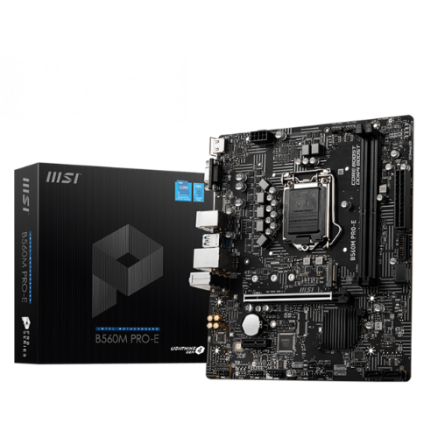

MSI B560M PRO-E Intel 10th and 11th Gen Motherboard

• Supports 10th & 11th Gen Intel Core, Pentium Gold and Celeron Processors for LGA 1200 socket
• Supports DDR4 Memory, up to 4800(OC) MHz
• Lightning Gen4 Solution, Turbo M.2
• Audio Boost, Steel Armor, Core Boost, DDR4 Boost
• HDMI, VGA, USB, Audio Out
• 3 Years Warranty

Disclaimer: The actual color of the physical product may slightly vary due to the deviation of lighting sources, photography or your device display settings.
