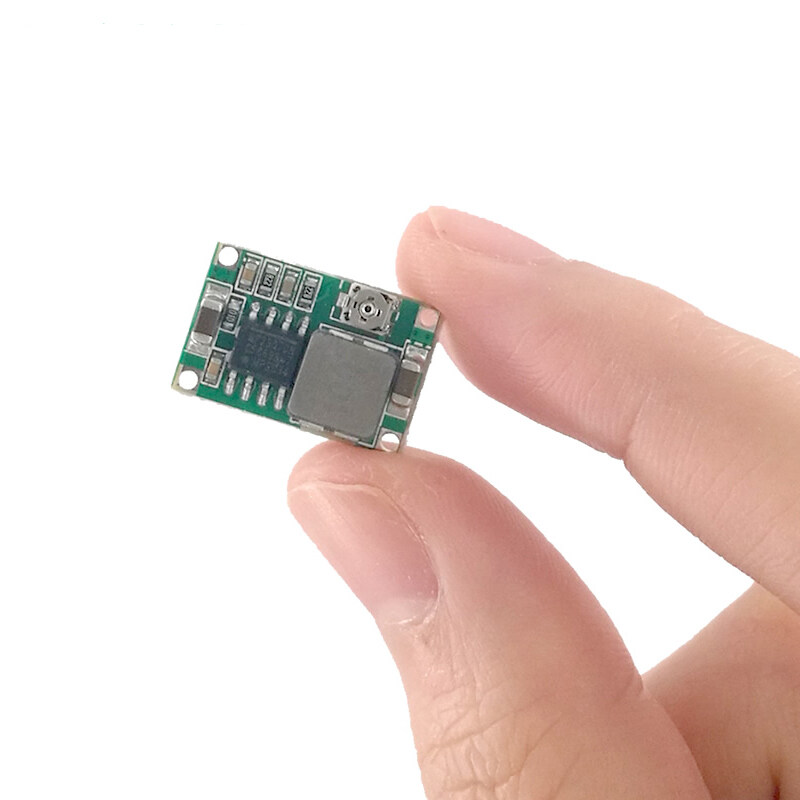

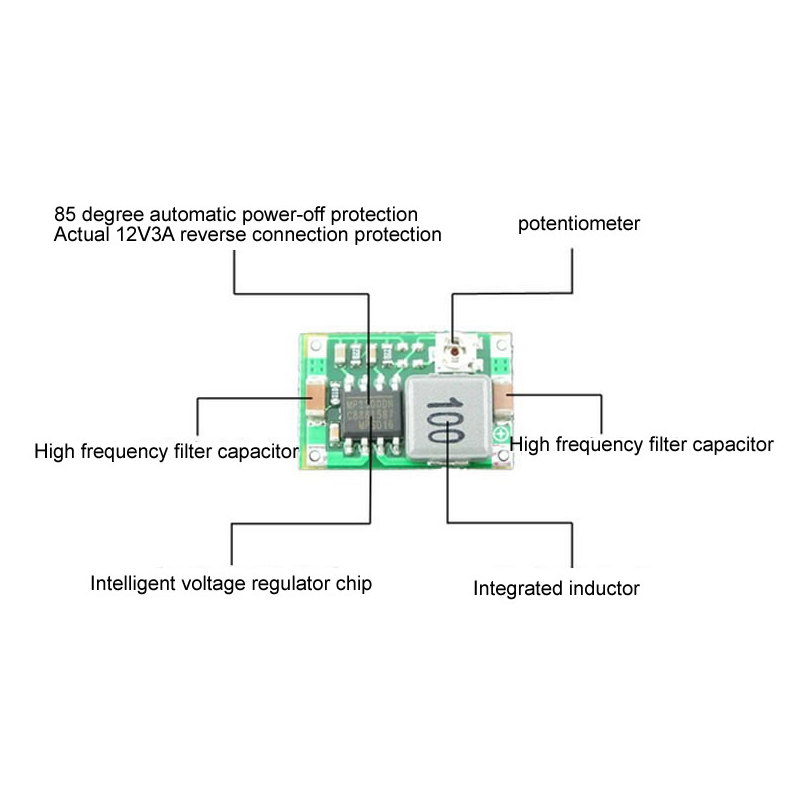

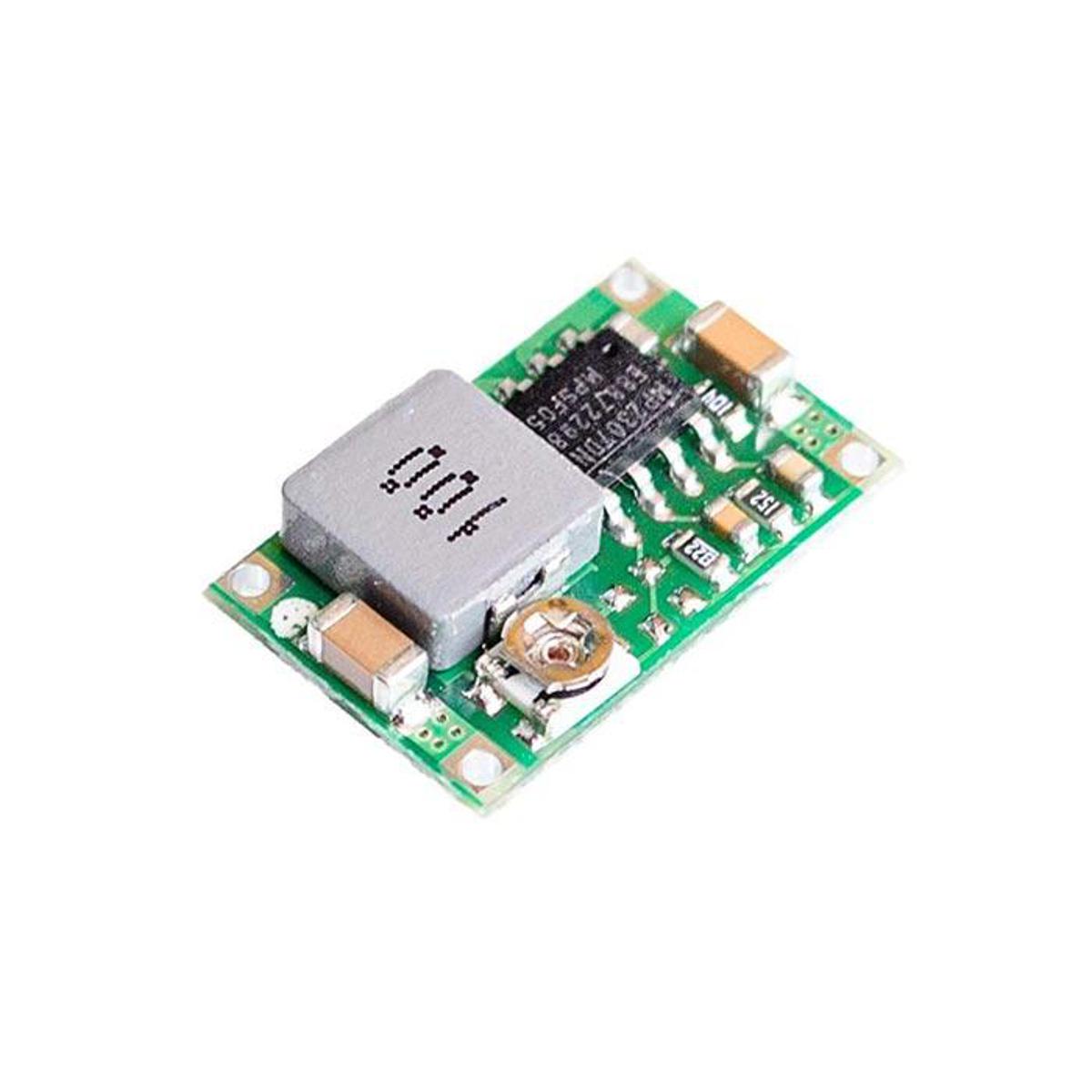

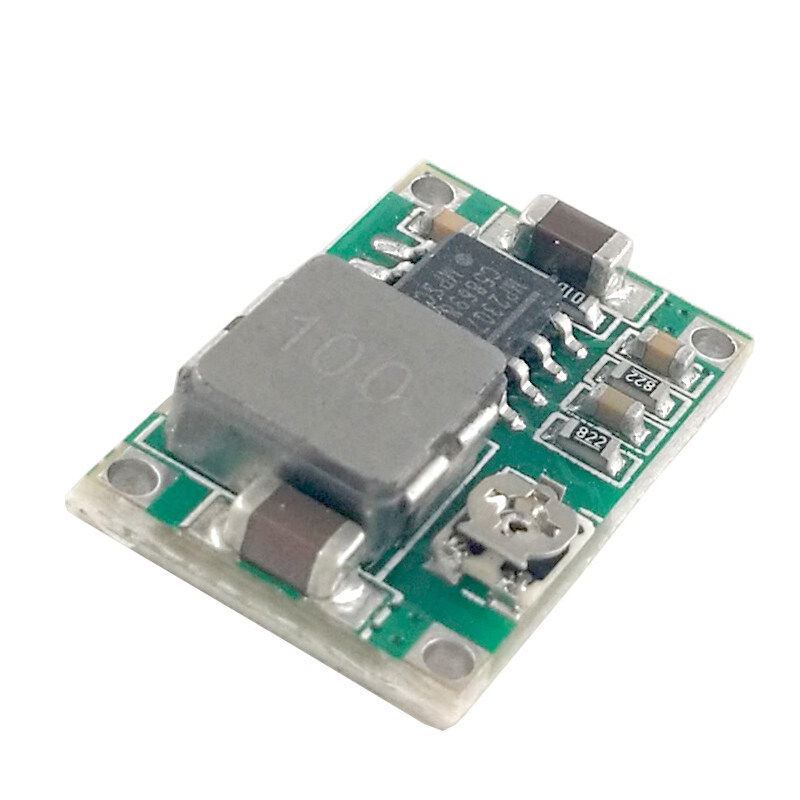

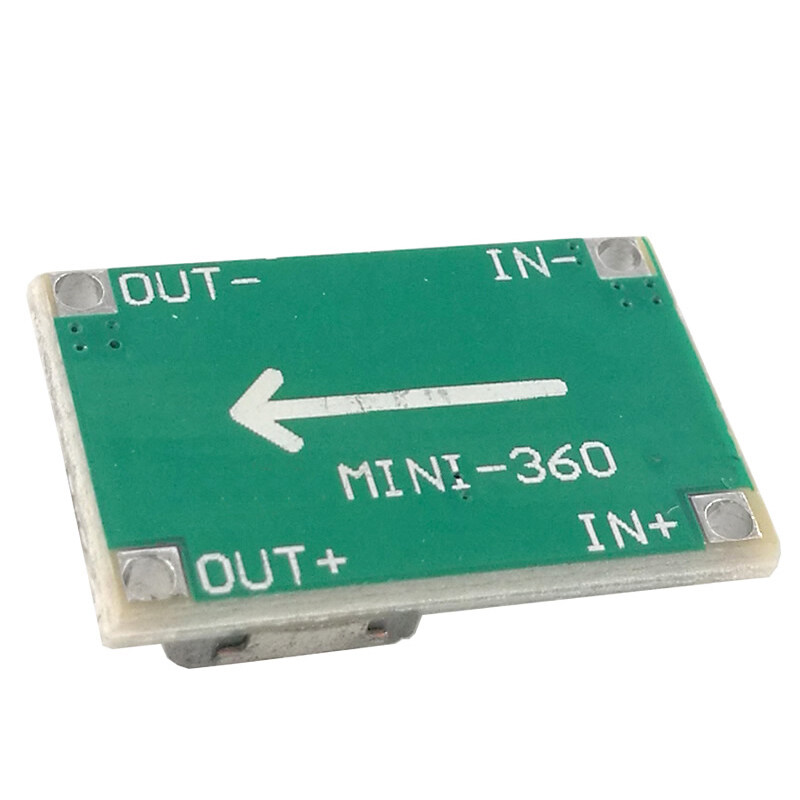

Model aircraft power supply step-down DC DC mini-360 power module 3A car power supply super LM2596 adjustable

Category:
SKU: RDE01875
Seller: READY ELECTRONICS
Tk 70
Tk 150
Tk 150
53% OFF
0 review(s)
  • Step Down Module
  • Condition: New
  • Type: Mini-360
  • Non-isolated step-down
  • Synchronous rectification
  • Size: approx. 17 x 11 x 3.8mm
  • Input voltage: 4.75V-23V
  • Output voltage: 1.0V-17V
  • Current output: peak 3A, 1.8A long time
  • Transfer efficiency: 96% ( highest)
  • Swtiching frenquency: 340KHz
  • Output ripple: 30mV(no-load)
  • Load regulation: ±0.5%
  • Voltage regulation: ±2.5%
  • Operating temperature: -40~+85

Call For Order : 09613-800800






  • Step Down Module
  • Condition: New
  • Type: Mini-360
  • Non-isolated step-down
  • Synchronous rectification
  • Size: approx. 17 x 11 x 3.8mm
  • Input voltage: 4.75V-23V
  • Output voltage: 1.0V-17V
  • Current output: peak 3A, 1.8A long time
  • Transfer efficiency: 96% ( highest)
  • Swtiching frenquency: 340KHz
  • Output ripple: 30mV(no-load)
  • Load regulation: ±0.5%
  • Voltage regulation: ±2.5%
  • Operating temperature: -40~+85
