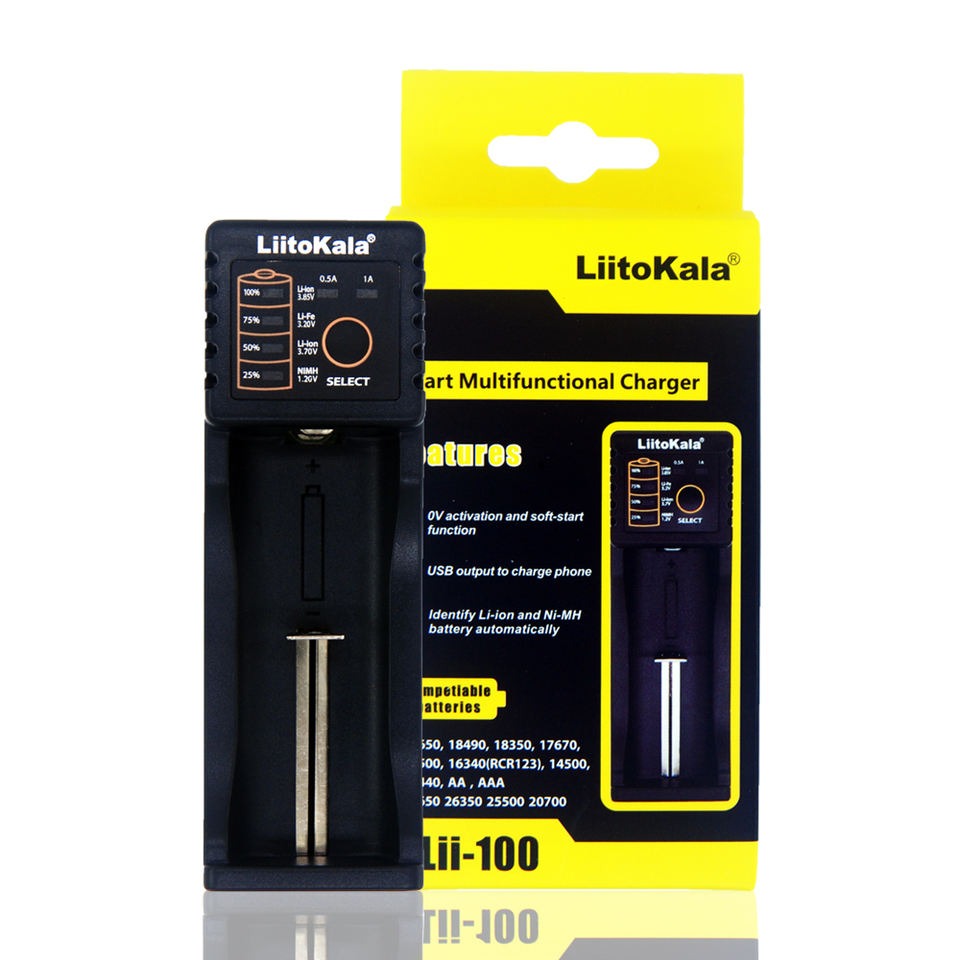

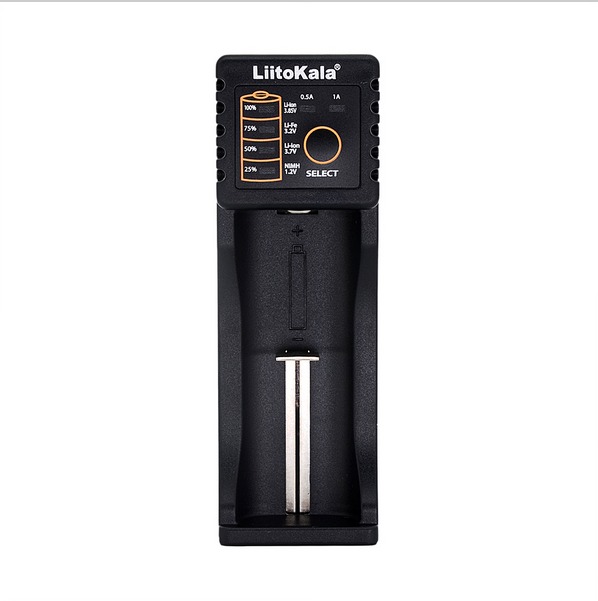

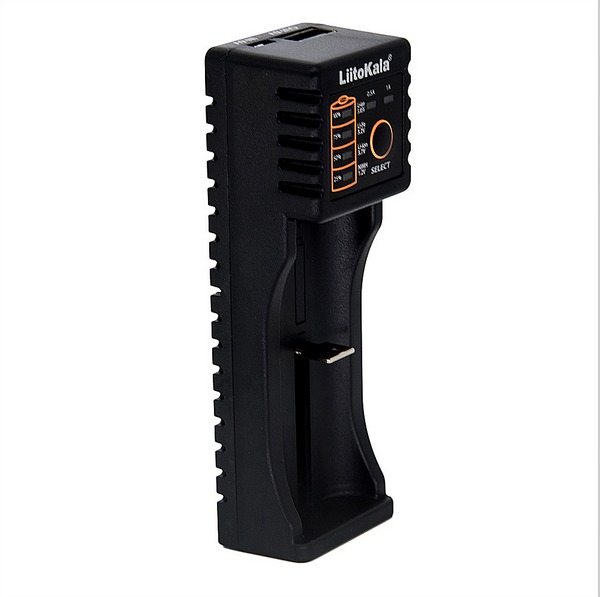

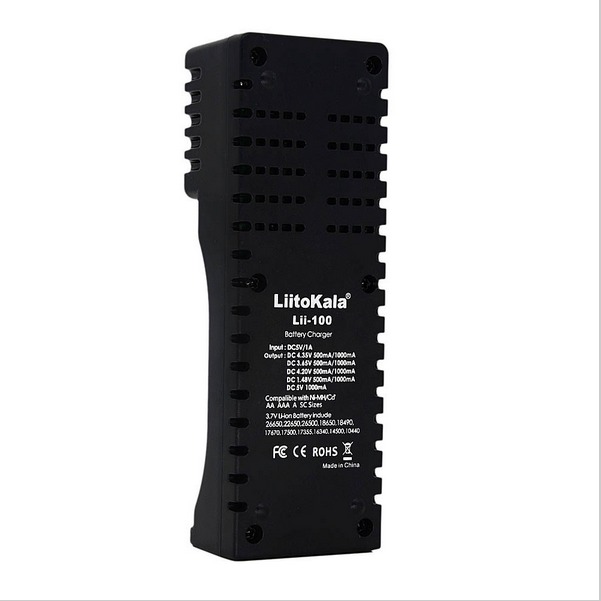

Liitokala Lii-100 1.2V 3.7V 3.2V 3.85V AA /AAA 18650 18350 26650 10440 14500 16340 25500 NiMH lithium battery smart charger
Main Features:

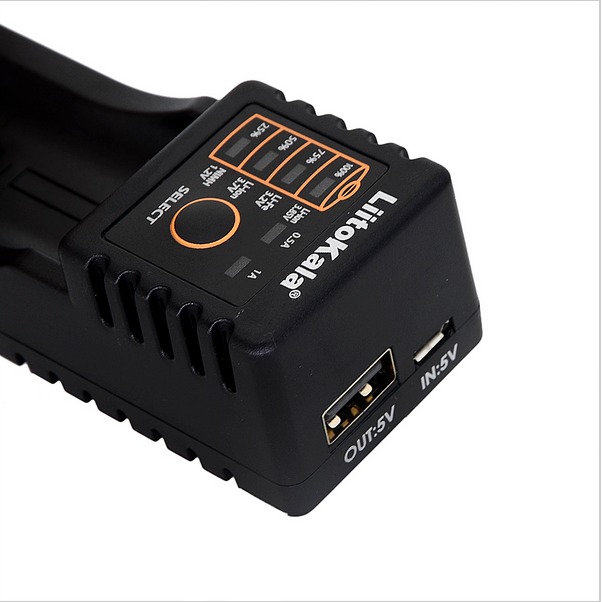

USB output function: Built with 5V / 1000mAh output
Flexible size: One-slot charging and management system, Micro USB DC 5V input port, portable to carry around
500mAh, 1000mAh charging current for selection
CC / CV charge mode applies to the battery to maintain a constant current flow and protect battery and users’ safety
LED indicators display the charging status 25pct - 50pct - 75pct - 100pct
When you charge LiFePO4 or 3.85V battery, must fix the charging mode: Identifies 1.2V Ni-MH / 3.7V Li-ion battery automatically and select manually for 3.85V battery Li-ion and LiFePO4 battery
Refresh function for 0V battery
Protections: over-charge, over-discharge, reverse polarity, short circuit protections
Identify dead or bad batteries
Parameters:
Constant charging with cut-off current less than 100mAh
Output voltage: 1000mAh and output voltage is 4.75 - 5.25V
Cut-off voltage for output: 3.0 +/- 0.1V
Standby current: No more than 15mAh
Output current: 500mAh / 1000mAh
Cautions:
1. Can't charge battery type of 1.6 - 2.2V
2. Batteries are not included

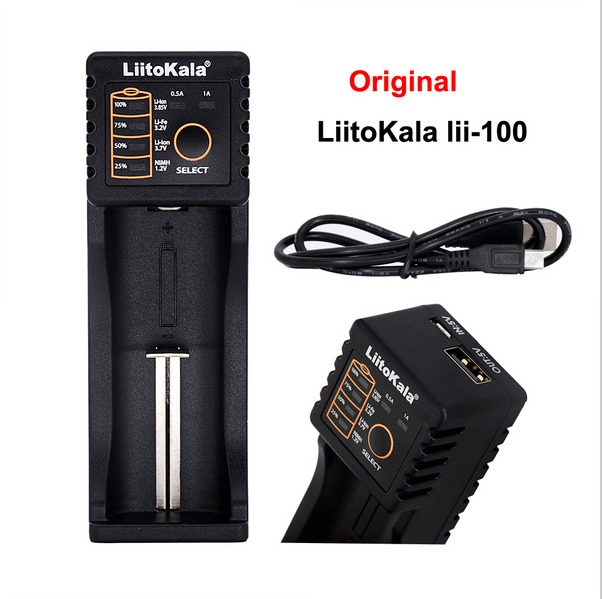

Packing list:
1*Liitokala Lii-100 charger(not includ battery)
1*USB canble
