Description

LDR (Big)

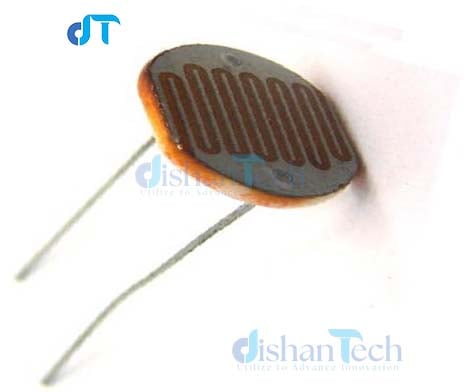

10mm Light Dependent Resistor

• Miniature open frame package
• Proxy coated
• Moisture resistant
• The spectral response similar to the human eye
• Dimensions: 10mm x 9mm (approx.)

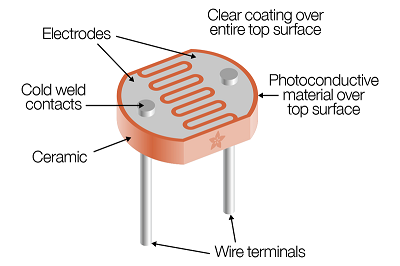

A photoresistor or light dependent resistor (LDR) is a resistor whose resistance decreases with increasing incident light intensity; in other words, it exhibits photoconductivity. A photoresistor is made of a high resistance semiconductor. If light falling on the device is of high enough frequency, photons absorbed by the semiconductor give bound electrons enough energy to jump into the conduction band. The resulting free electron (and its hole partner) conduct electricity, thereby lowering resistance. Applications of LDR 10mm – Light Dependent Resistor: Camera Exposure Control Auto Slide Focus – dual cell Photocopy Machines – density of toner Colorimetric Test Equipment Magnetometer Electronic Scales – dual cell Automatic Gain Control – modulated light source Automated Rear View Mirror Automatic Headlight Dimmer Night Light Control Oil Burner Flame Out Street Light Control Absence / Presence (beam breaker) Position Sensor etc.
