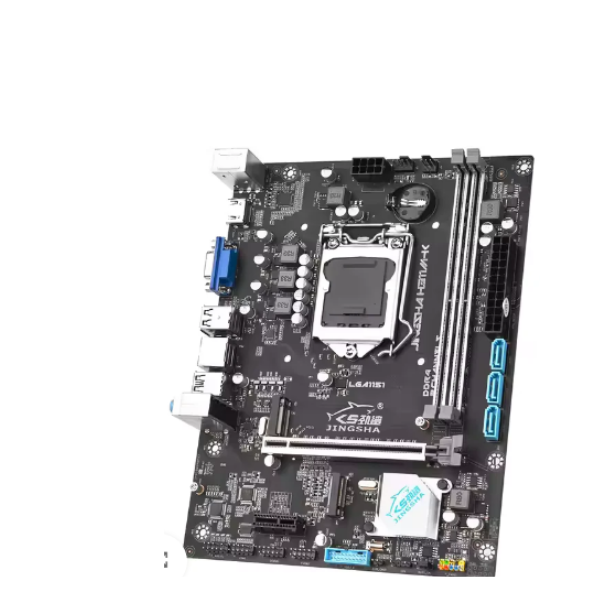

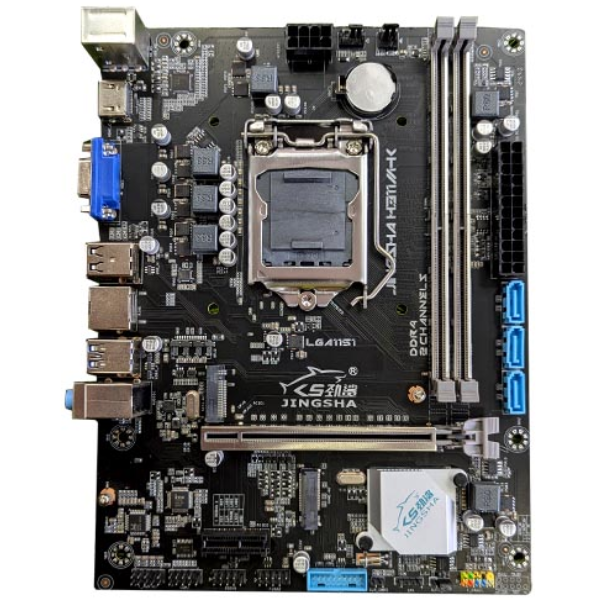

Jingsha H311M-K Intel 6/7/8/9th Genaration Motherboard


Tk 8,000


Brand: Jingsha

Model: H311M-K

Chipset: Intel H310

Supported Processors: 6th, 7th, 8th, and 9th Gen Intel Core processors

Memory: Dual Channel DDR4, 2 DIMMs, up to 64GB

Graphics: HDMI and VGA ports

Storage: 6 SATA 6Gb/s ports, 2 M.2 slots (1 NGFF, 1 NVMe)

LAN: Gigabit Ethernet, Realtek RTL8111H

USB Ports: 2 x USB 3.0 ports, 4 x USB 2.0 ports

Expansion Slots: 1 x PCI Express x16, 2 x PCI Express x1

Internal I/O Connectors 1 x 24-pin ATX main power connector, 1 x 4-pin ATX 12V power connector, 1 x CPU fan header,

1 x system fan header, 1 x front panel header, 1 x front panel audio header, 1 x Clear CMOS jumper, 2 x USB 2.0 headers

Form Factor: Micro ATX, 22.6cm x 18.5cm

BIOS: UEFI BIOS

Warranty: 3 years






Warranty: 2 Years warranty.
Note: Product delivery duration may vary due to product availability in stock.

Disclaimer: The actual color of the physical product may slightly vary due to the deviation of lighting sources, photography or your device display settings.
