Description

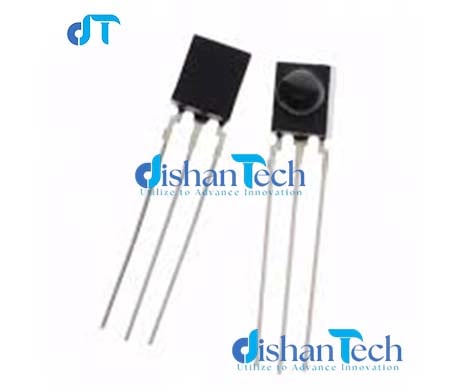

IR Receiver TSOP4838 Circuit
TSOP4838
An IR receiver circuit is a simple circuit including an IR receiver and a transistor. In this circuit, the receiver used is a 38kHz transmitter TSOP4838. It receives an IR signal and Turns ON an LED at Output connected with a 2n2222 transistor.
| RoHS: | Details | |
| Through Hole | ||
| 38 kHz | ||
| 45 m | ||
| 45 deg | ||
| 45 deg | ||
| 100 mV | ||
| 5 mA | ||
| 2.7 V to 5.5 V | ||
| 850 uA | ||
| 10 mW | ||
| – 25 C | ||
| + 85 C | ||
| Side Looker | ||
| Tube | ||
| Brand: | Vishay Semiconductors | |
| Data Transmission Rate: | 800 bits/s | |
| Height: | 6.95 mm | |
| Length: | 6 mm | |
| Product Type: | IR Receivers | |
| Series: | TSOP | |
| 2160 | ||
| Subcategory: | Infrared Data Communications | |
| Width: | 5.6 mm | |
| Unit Weight: | 0.112754 oz |
